Name: SICK WTF12-3P2431 Photoelectric Proximity Sensor IP67
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: WTF12-3P2431
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

SICK WTF12-3P2431 Photoelectric Proximity Sensor IP67

SICK photoelectric proximity sensor IP67

WTF12-3P2431 proximity sensor IP67

photoelectric proximity sensor industrial

Brand Name:

Sick

Certification:

Model Number:

WTF12-3P2431

Request A Quote

Product Details

Brand Name:

Sick

Model:

WTF12-3P2431

Device Type:

Photoelectric Sensors

Sensor/ Detection Principle:

Photoelectric Proximity Sensor, Foreground Suppression

Weight:

120g

Enclosure Rating:

IP67

Highlight:

SICK photoelectric proximity sensor IP67

WTF12-3P2431 proximity sensor IP67

photoelectric proximity sensor industrial

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

Contact Now

Product Description

SICK WTF12-3P2431 Photoelectric Proximity Sensor IP67

Product Attributes

Attribute	Value
Brand Name	Sick
Model	WTF12-3P2431
Device Type	Photoelectric Sensors
Sensor/ Detection Principle	Photoelectric Proximity Sensor, Foreground Suppression
Weight	120g
Enclosure Rating	IP67

Product Description

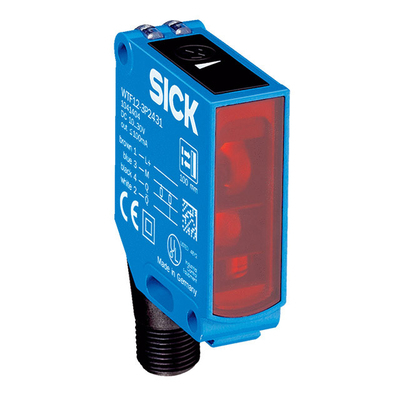

The SICK WTF12-3P2431 is a robust photoelectric proximity sensor from the W12-3 series, designed for reliable object detection in diverse industrial environments. Featuring a foreground suppression function and a visible red LED light source, it excels in recognizing objects regardless of surface color or reflectivity. Housed in a rugged cast metal body with IP67 protection, it withstands harsh conditions such as dust, moisture, and mechanical stress, making it suitable for packaging, pharmaceuticals, food and beverage, and other demanding industries.

Features

Foreground Suppression Technology: Ensures accurate detection of foreground objects while ignoring background interference, making it ideal for applications with varying surface colors.
High Performance: Equipped with PinPoint technology for precise light spot alignment. Fast response time (≤330 µs) and high switching frequency (1,500 Hz) for detecting fast-moving objects.
Rugged Construction: Cast metal housing with IP67 protection rating resists dust, water, and mechanical impact.
Comprehensive Protection: Includes short-circuit and reverse polarity protection to safeguard against electrical faults.
User-Friendly Design: Integrated LED indicators for real-time status monitoring with potentiometer for easy adjustment of sensing range (30mm to 175mm).
Versatile Integration: Supports 10-30V DC power supply, PNP switching output (max. 100mA), and IO-Link compatibility.

Technical Specifications

Brand name	SICK
Model	WTF12-3P2431
Device type	Photoelectric sensors
Sensor/ detection principle	Photoelectric proximity sensor, Foreground suppression
Dimensions (W x H x D)	15.6 mm x 48.5 mm x 42 mm
Housing design	Rectangular
Sensing range max.	30 mm ... 175 mm
Type of light	Visible red light
Light source	LED
Supply voltage	10 V DC ... 30 V DC
Switching output	PNP
Response time	≤ 330 µs
Output current Imax.	≤ 100 mA
Switching frequency	1,500 Hz
Weight	120 g
