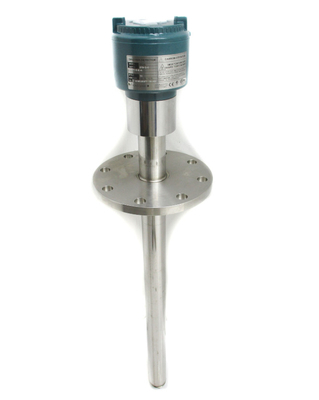

Name: Yokogawa ZR22G Zirconia Oxygen Humidity Analyzer 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Zr22g Zr802g
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Yokogawa ZR22G Zirconia Oxygen Humidity Analyzer 4-20mA Output

Zirconia oxygen analyzer 4-20mA output

Yokogawa ZR22G humidity analyzer

Precision oxygen sensor 4-20mA

Brand Name:

Yokogawa

Certification:

Model Number:

Zr22g Zr802g

Request A Quote

Yokogawa ZR22G Zirconia Oxygen Humidity Analyzer 4-20mA Output

Product Details

Output Signal:

4-20MA

Contact Input:

Two Points

Power Supply:

85 To 264 V AC; 45 To 66 Hz

Measurement Range:

0.01 To 100 Vol% O2

Highlight:

Zirconia Oxygen Analyzer Zr22g, Single Channel Zirconia Oxygen Analyzer, Zirconia Oxygen Humidity Analyzer

Highlight:

Zirconia oxygen analyzer 4-20mA output

Yokogawa ZR22G humidity analyzer

Precision oxygen sensor 4-20mA

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

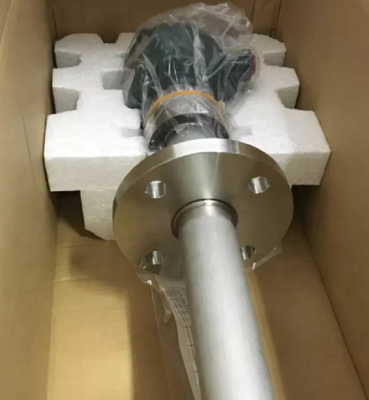

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Yokogawa Single-Channel Zirconia Oxygen & Humidity Analyzer

Key Features: Zirconia Oxygen Analyzer Zr22g, Single Channel Zirconia Oxygen Analyzer, Zirconia Oxygen Humidity Analyzer

Output Signal	4-20MA
Contact Input	Two Points
Power Supply	85 To 264 V AC; 45 To 66 Hz
Measurement Range	0.01 To 100 Vol% O2

Product Introduction

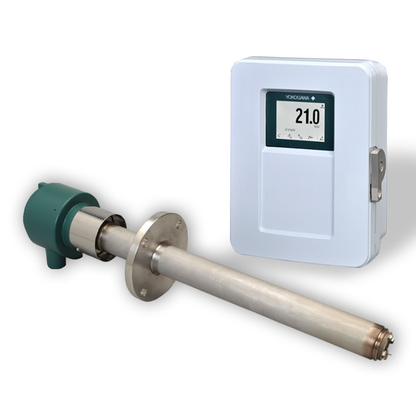

This analyzer combines a probe and converter to function as both a Zirconia Oxygen Analyzer and High-Temperature Humidity Analyzer.

As a Zirconia Oxygen Analyzer: Ideal for monitoring oxygen concentration in combustion gases of boilers, industrial furnaces, and combustion devices, while facilitating low-oxygen combustion control.

As a High-Temperature Humidity Analyzer: Continuously measures humidity in hot gases from driers using electrical heaters or hot gas heat sources. Essential for manufacturing processes involving humidifiers and driers to enhance productivity.

Application Scenarios

Oxygen Analysis: Power generation boilers (heavy oil, gas, coal), industrial furnaces (oil/steel heating, coal kilns)
Humidity Analysis: Textile coloring, concrete steam curing, building materials production, food processing, and wood drying

Product Features

ZR802G converter features digital display for oxygen concentration, cell temperature, and cell emf
User-friendly HMI with touch-screen operation
Dual-functionality as both oxygen and humidity analyzer
Continuous humidity measurement capability for hot gases

Technical Specifications

Measurement Object	Oxygen analyzer: Oxygen concentration in combustion exhaust gas and mixed gas Humidity Analyzer: Water vapor (in vol%) in mixed gases (air and water vapor)

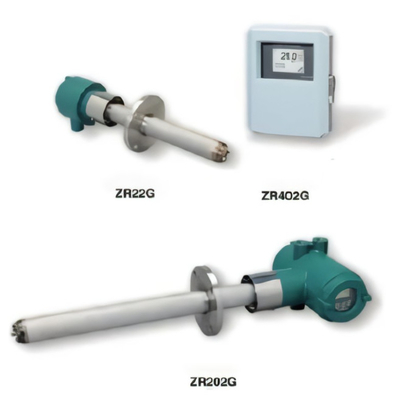

Measurement System	Zirconia System (Detector ZR22G)
Measurement Range	O2: 0.01-100 vol% H2O: 0-100 vol% Mixture ratio: 0-1.000 kg/kg
Digital Communication	HART7 (AO1, 250 to 550 Ω) Ethernet (Modbus TCP) RS-485 (Modbus RTU)
Repeatability	O2: ± 0.5% F.S. (0 to 5 vol% O2) O2: ± 1% F.S. (0 to 25 vol% O2) H2O: ± 1 vol%H2O (Sample gas pressure 2 kPa or less)
Response Time	90% response within 5 seconds
