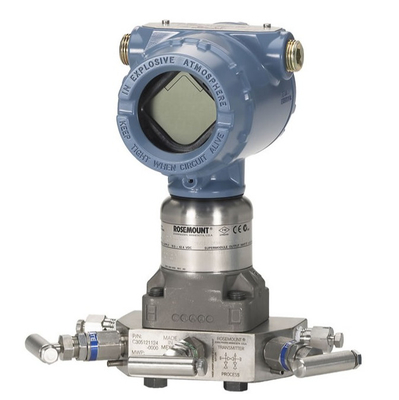

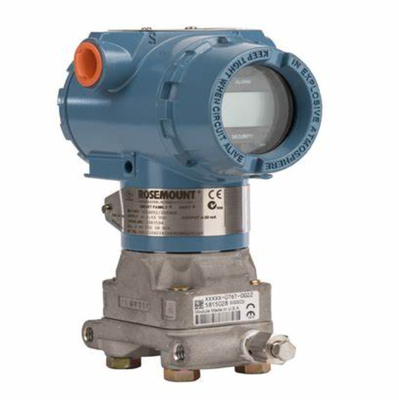

Name: Rosemount 3051 In-Line Pressure Transmitter 0.04% Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 3051TG4A2B21BB4E7M5TK
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Rosemount 3051 In-Line Pressure Transmitter 0.04% Accuracy

Rosemount 3051 pressure transmitter

inline pressure sensor 0.04% accuracy

precision industrial pressure transmitter

Brand Name:

Rosemount

Certification:

Model Number:

3051TG4A2B21BB4E7M5TK

Request A Quote

Rosemount 3051 In-Line Pressure Transmitter 0.04% Accuracy

Product Details

Place Of Origin:

Singapore

Customized Support:

OEM

Brand Name:

3051

Accuracy:

0.04% Accuracy Optional

Stability:

0.1% Stability Per 10 Years

Certify:

Exida And TUV SIL 2 / SIL3 Certified

Highlight:

Rosemount 3051 pressure transmitter

inline pressure sensor 0.04% accuracy

precision industrial pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Original Rosemount 3051 In-Line Pressure Transmitter

Product Attributes

Attribute	Value
Place Of Origin	Singapore
Customized Support	OEM
Brand Name	3051
Accuracy	0.04% Accuracy Optional
Stability	0.1% Stability Per 10 Years
Certify	Exida And TUV SIL 2 / SIL3 Certified

Product Description

The Rosemount 3051 In-Line Pressure Transmitter is an industry-leading device designed for confident measurement of pressure and level. Engineered to deliver 10-year installed stability and an impressive 0.04% of span accuracy, it provides the essential information needed to run, control, and monitor various processes effectively.

Key Features

Exceptional Performance: 10-year installed stability and 0.04% of span accuracy
Wide Measurement Range: Supports up to 20,000 psig (1378.95 bar) gage and absolute pressure
Flexible Rangedown: Up to 150:1 for wide application flexibility
Advanced Connectivity: Bluetooth® wireless and WirelessHART® technology
User-Friendly Display: Graphical, back-lit display with 8 language support
Application Versatility: Configurable for level measurement with volume calculations
Simplified Installation: Leak-tested assemblies reduce leak points by up to 70%
Comprehensive Diagnostics: Includes process alerts and plugged impulse line diagnostics
Durable Materials: 316L SST, Alloy C-276, Alloy 400, Tantalum, and gold-plated options
Long-Lasting Wireless: Up to 10-year battery life with field-replaceable power module

Technical Parameters

Warranty

Up to 5-year limited warranty

Communication Protocol

4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA

Process Wetted Material

316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated options

Certifications

SIL 2/3 certified to IEC 61508, NSF, NACE®, hazardous location approvals

Wireless Update Rate

1 sec. to 60 min., user selectable

Interface Size

M20*1.5 mm

Supply Ability

100 Set/Sets per Month
