Product Description

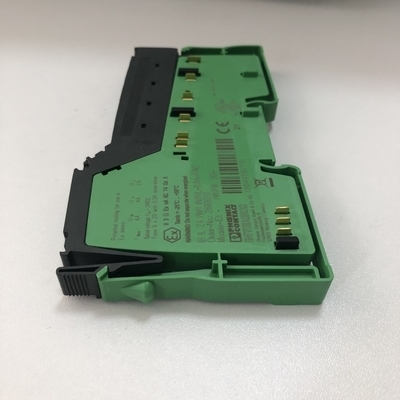

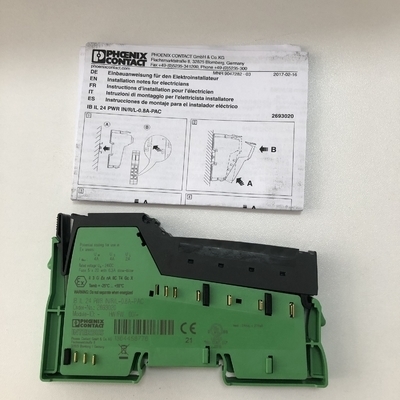

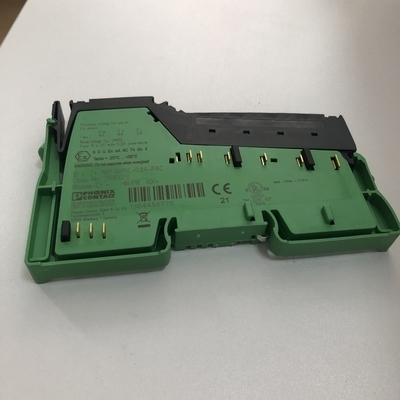

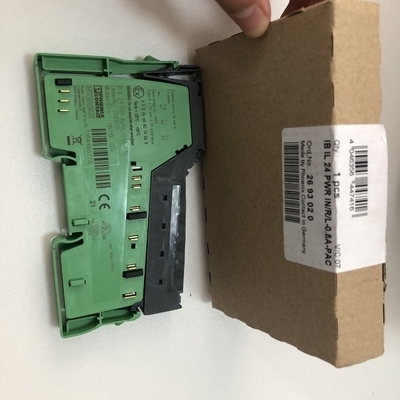

Phoenix Contact IB IL 24 PWR IN/R/L-0.8A-PAC Inline Boost Terminal

Product Attributes

Attribute	Value
Brand	Phoenix
Type	IB IL 24 PWR IN/R/L-0.8A-PAC
Warranty	1 Year
Color	Green
Product Family	Inline
Number Of Plugs	1

Product Description

The Phoenix Contact IB IL 24 PWR IN/R/L-0.8A-PAC is an Inline boost terminal designed for use within Inline stations. It provides communications power (UL) when the maximum load of the bus coupler is reached. By applying 24 V DC voltage (U24V), it generates the required communications power (UL) for uninterrupted system operation.

From hardware version 00, it is approved for use in potentially explosive areas of zone 2. This terminal is part of Phoenix Contact's Inline product range, with documentation available from the manufacturer.

Key Features

Power Boost Function: Supplies 24V voltage to generate communications power (UL) up to 0.8A
Hazardous Area Approval: Approved for use in potentially explosive areas of zone 2
Compact Design: 12.2mm width, 119.8mm height, 71.5mm depth for space-efficient installation
Inline System Compatibility: Seamless integration with Inline station components
Accessory Support: Compatible with colored connectors, labeling fields, and insert strips

Technical Specifications

Parameter	Value
Type	IB IL 24 PWR IN/R/L-0.8A-PAC
Function	Inline boost terminal for communications power (UL)
Communications Power (UL)	Up to 0.8 A
Input Voltage (U24V)	24 V DC
Mounting Type	DIN rail mounting
Stripping Length	8 mm
Conductor Cross Section (AWG)	28 ... 16
Dimensions (W×H×D)	12.2 × 119.8 × 71.5 mm
Weight	65 g (with connector)
Ambient Temperature (Operation)	-25 °C ... 55 °C
Ambient Temperature (Storage/Transport)	-25 °C ... 85 °C
Permissible Humidity	10% ... 95% (non-condensing)
Air Pressure	70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of Protection	IP20
Protection Class	III (per IEC 61140, EN 61140, VDE)
Hazardous Area Approval	Suitable for zone 2 (from hardware version 00)

Ordering Information

Accessory	Order Number	Packaging
Connectors	2727637	10 pcs./pkt.
Labeling Fields	2727501	10 pcs./pkt.
Insert Strips	0809492	1 sheet/pkt. (white, unlabeled)

Documentation: User manual IL SYS INST UM E (English, for Inline automation terminals)
