Honeywell M6284F1078-F Modutrol IV Motor 24V AC

Honeywell M6284F1078-F Modutrol IV Motor 24V AC

Honeywell Modutrol IV motor 24V AC

Modutrol IV motor precision pressure

24V AC motor pressure sensor

Brand Name:

Honeywell

Certification:

CE

Model Number:

M6284F1078-F

Contact Us
Request A Quote
Product Details
Brand:
Honeywell
Model:
M6284F1078-F
Color:
Silver
Warrany:
1 Year
Pricing Unit:
Each
Weight:
2.884 Kg (each)
Highlight:

Honeywell Modutrol IV motor 24V AC

,

Modutrol IV motor precision pressure

,

24V AC motor pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
Original Honeywell M6284F1078-F Modutrol Motor
Attribute Value
Brand Honeywell
Model M6284F1078-F
Color Silver
Warranty 1 Year
Pricing Unit Each
Weight 2.884 Kg (each)
Product Introduction
The Original Honeywell M6284F1078-F is a Modutrol IV motor from the Series 62, also associated with the M6284F1013 Servo Actuator. Manufactured by Honeywell Fema, this motor is a non-spring return dual ended shaft floating control motor, designed to work with a controller to provide a floating output for operating dampers or valves.
It comes with a 1-year warranty and is available in stock with a supply ability of 1000 units, packaged in cartons for secure delivery. With a silver color and a weight of 2.884 kg each, it is built to withstand industrial environments, making it ideal for damper and valve control in HVAC industrial burner applications and air handling installations.
Product Features
  • Functional Design: Non-spring return dual ended shaft floating control motor, providing floating output when used with a controller to operate dampers or valves effectively.

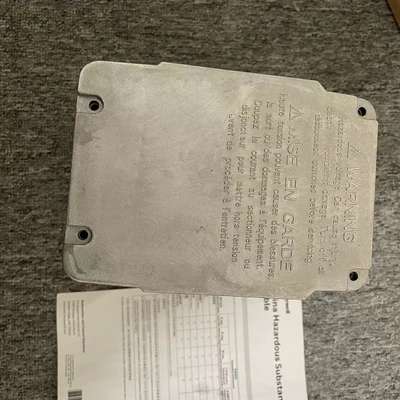

  • Durable Construction: Features a hardwearing die-cast aluminium housing that protects against everyday industrial environmental abuse, ensuring a long service life.

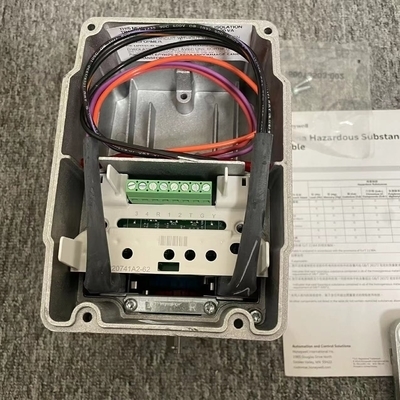

  • Weather Protection: Equipped with an integral junction box boasting NEMA 3 weather protection, making it suitable for use in various weather conditions.
  • Feedback Mechanism: Includes an internal electrically isolated feedback potentiometer that indicates motor shaft position, useful for slaving Series 90 Motors or rebalancing external control circuits.
  • Auxiliary Switches: Comes with 2 auxiliary switches, adding versatility to its functionality in control systems.
  • Stable Performance: Operates from 24 Vac with fixed torque through the voltage range, ensuring consistent performance. It has a lifetime of 60000 cycles, guaranteeing reliable operation over an extended period.
Product Specifications
Model Number:
M6284F1078-F
Brand Name:
Honeywell
Type:
Modutrol Motor (Servo Actuator, including M6284F1013)
Series:
Series 62, Modutrol IV
Manufacturer:
Honeywell Fema
GTIN/UPC/EAN:
085267327534
Tariff Code:
85369095
Color:
Silver
Warranty:
1 Year
Weight:
2.884 Kg (each)
Operating Voltage:
24 Vac (motor and circuit)
Torque:
Fixed torque through voltage range
Feedback:
Linear 10k feedback
Auxiliary Switches:
2
Crankshaft:
9.5 mm square
Lifetime:
60000 cycles
Protection Rating:
NEMA 3 weather protection
Terminals:
Screw terminals, quick disconnect terminals
Housing Material:
Die-cast aluminium
Minimum Order Quantity:
1
Price:
USD320/PC
Packaging Details:
Carton
Delivery Time:
1 week
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000
Applications
Damper and valve control in HVAC industrial burner applications, air handling installations, and industrial burners.
