Name: Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: YT-3400LSZ3520S
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications

Rotork YT-3400 valve controller

low temperature valve positioner

precision pressure sensor controller

Brand Name:

Rotork

Certification:

Model Number:

YT-3400LSZ3520S

Request A Quote

Rotork YT-3400 Valve Controller Positioner for Low Temperature Applications

Product Details

Brand:

Rotork

Type:

YT-3400LSZ3520S

Warranty:

1 Year

Output:

4-20ma

Highlight:

Low Temperature Valve Controller Positioner, YT-3400RDZ5501S Valve Controller Positioner, YT-3400LSZ3520S Valve Controller Positioner

Highlight:

Rotork YT-3400 valve controller

low temperature valve positioner

precision pressure sensor controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Deltabar PMD55B - differential pressure transmitter

Get Best Price

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Get Best Price

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

Contact Now

Product Description

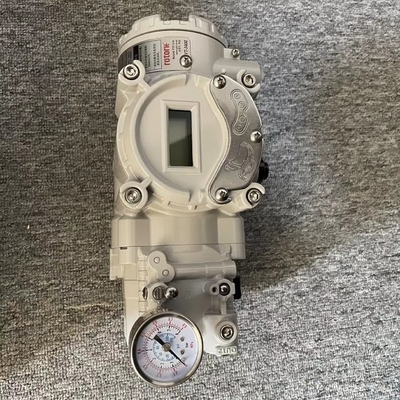

Rotork YT-3400LSZ3520S, YT-3400RDZ5501S Direct/Angular Stroke Valve Controller Positioner

Brand	Rotork
Type	YT-3400LSZ3520S
Warranty	1 Year
Output	4-20ma
Highlight	Low Temperature Valve Controller Positioner, YT-3400RDZ5501S Valve Controller Positioner, YT-3400LSZ3520S Valve Controller Positioner

Product Overview

The Rotork YT-3400LSZ3520S and YT-3400RDZ5501S are direct/angular stroke valve controller positioners designed for low temperature applications. These microprocessor-based smart positioners provide precise valve stroke control in response to 4~20mA input signals. Featuring advanced functions like Auto-Calibration, PID Control, and optional HART Protocol Communications, they deliver reliable performance in demanding industrial environments including explosive gas atmospheres and high vibration conditions.

Key Features

Safe operation in explosive environments with external LCD and button controls
Rapid 0.5 second recovery from power interruptions
Stable operation under supply pressure fluctuations and high vibration
Simple Auto-Calibration for easy setup and maintenance
Low air consumption reduces operating costs
Wide compatibility with most control systems
Variable orifice minimizes hunting and optimizes performance
Optional HART communication for remote monitoring
Analog feedback signal enhances system stability
Adjustable valve characteristics (Linear, Quick Open, Equal Percentage, Custom)
Field-adjustable PID parameters without additional tools
Manual operation capability for emergency situations
Split range settings (4~12mA or 12~20mA)
Wide operating temperature range (-30°C to 85°C or -40°C to 85°C)
IP66 protection against dust and water ingress
Corrosion-resistant epoxy polyester powder coating
Modular design simplifies maintenance
SIL2 safety certification

Technical Specifications

Model Numbers	YT-3400LSZ3520S, YT-3400RDZ5501S
Brand	Rotork
Type	Direct/Angular Stroke Valve Controller Positioner (Low Temperature)
Acting Type	Single, Double
Lever Type	10 ~ 40 mm
Rotary	M6 x 63L
Input Signal	4~20mA
Operating Temperature	-30°C to 85°C or -40°C to 85°C (model dependent)
Protection Grade	IP66
Certification	SIL2
Communication (Optional)	HART Protocol
