Name: Johnson Controls M9108-GDC-1N1 Field Control Switch
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: M9108-GDC-1N1
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Johnson Controls M9108-GDC-1N1 Field Control Switch

Johnson Controls field control switch

precision pressure sensor switch

M9108-GDC-1N1 control switch

Brand Name:

Johnson

Certification:

Model Number:

M9108-GDC-1N1

Request A Quote

Product Details

Product:

M9108

Power Requirements:

20 To 30 VAC At 50/60 Hz

Input Impedance:

Voltage Input

Feedback Signal:

0 To 10 VDC

Highlight:

Original Johnson Controls Switch, Field Control Equipment Switch, M9108-GDC-1N1 Switch

Highlight:

Johnson Controls field control switch

precision pressure sensor switch

M9108-GDC-1N1 control switch

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

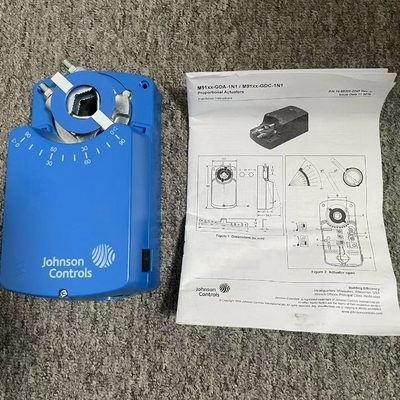

Original Johnson Controls M9108-GDC-1N1 Switch

Field Control Equipment (M9108, M9116, M9124, M9132 models)

Key Features: Original Johnson Controls Switch, Field Control Equipment Switch, M9108-GDC-1N1 Switch

Attribute	Value
Product	M9108
Power Requirements	20 To 30 VAC At 50/60 Hz
Input Impedance	Voltage Input
Feedback Signal	0 To 10 VDC

Product Introduction

The Original Johnson Controls M9108-GDC-1N1 is a field control equipment switch belonging to the M9108 series, which also includes M9116, M9124, and M9132 models. These proportional electric non-spring return actuators are designed for use in Heating, Ventilating, and Air Conditioning (HVAC) systems, suitable for positioning air dampers and valves.

Product Features

Dual Control Inputs: Offers flexibility in integration with different control systems
Output Position Feedback: Provides accurate position sensing through switches, potentiometer, or 0-10 VDC signal
Electronic Stall Detection: Prevents motor damage by deactivating when stall condition detected

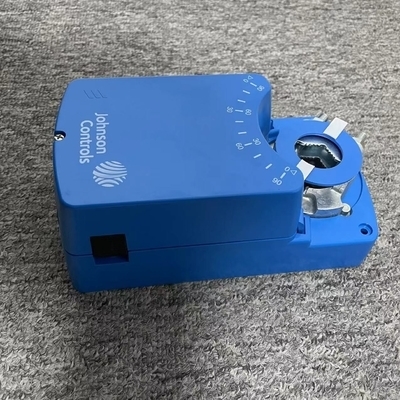

Dual Scale Cover: Indicates actuator rotation position in 10° increments (0-90° and 90-0° scales)
Adjustable Rotation: Removable coupler allows 0-90° adjustment in 5-degree increments

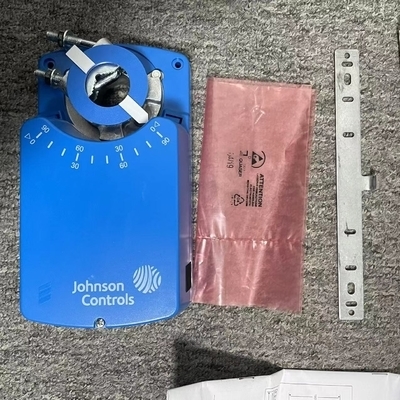

Secure Mounting: Steel U-bolt clamp provides four-point damper shaft gripping
Easy Setup: Jumper-selectable rotation direction and manual gear release
Convenient Connection: NPT threaded housing for easy electrical fitting connection
Versatile Mounting: Can be direct- or remote-mounted to a damper

Product Parameters

Model Number: M9108-GDC-1N1 (series includes M9108, M9116, M9124, M9132)

Brand Name: Johnson

Product Type: Field Control Equipment Switch

Power Requirements: 20-30 VAC at 50/60 Hz

Input Impedance: Voltage Input

Feedback Signal: 0-10 VDC

Torque (M9108 models): Up to 70 lb∙in (8 N∙m)

Rotation Range: 0-90° adjustable in 5° increments

Shaft Compatibility: Round shafts up to 3/4 in. (19 mm) or square shafts up to 5/8 in. (16 mm)

Color: Blue

Warranty: 1 year

Availability: Packaged in original packaging with delivery time of 1 week. Minimum order quantity of 1 unit with large supply capacity of 1000 units.
