Name: Sauer Danfoss MBC5100 Heavy Duty Pressure Switch SPDT 250V
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: MBC5100 061B100266
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

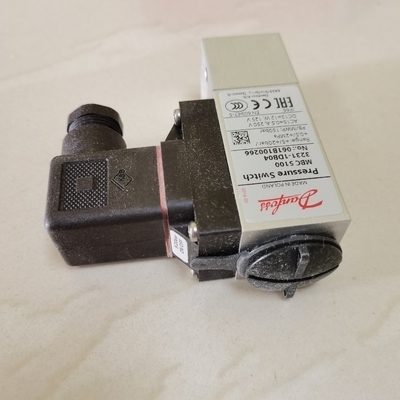

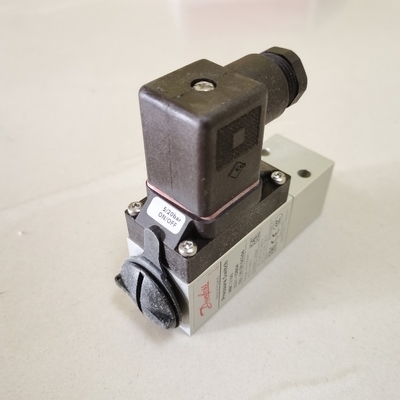

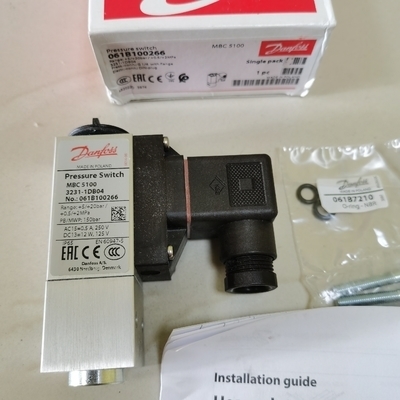

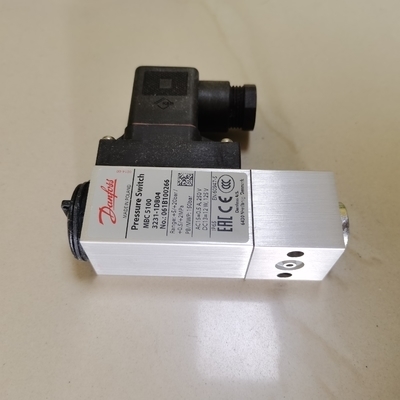

Sauer Danfoss MBC5100 Heavy Duty Pressure Switch SPDT 250V

Sauer Danfoss MBC5100 pressure switch

heavy duty SPDT pressure switch

250V precision pressure sensor

Brand Name:

Danfoss

Certification:

Model Number:

MBC5100 061B100266

Request A Quote

Sauer Danfoss MBC5100 Heavy Duty Pressure Switch SPDT 250V

Product Details

Gross Weight:

0.3 Kg

Net Weight:

0.25 Kg

Ambient Temperature Range:

-40 °C To 85 °C (-40 °F To180 °F)

Burst Pressure [bar:

Contact Function:

SPDT

Contact Rating:

AC15=0.5 A, 250 V DC13=12 W, 125 V

Highlight:

Sauer Danfoss MBC5100 pressure switch

heavy duty SPDT pressure switch

250V precision pressure sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Sauer Danfoss MBC Series Heavy Duty Pressure Switch

Attribute	Value
Gross Weight	0.3 Kg
Net Weight	0.25 Kg
Ambient Temperature Range	-40 °C To 85 °C (-40 °F To 180 °F)
Burst Pressure	7 bar
Contact Function	SPDT
Contact Rating	AC15=0.5 A, 250 V DC13=12 W, 125 V

The Sauer Danfoss MBC Series Heavy Duty Pressure Switch, including models like MBC5100, 3231-1DB04, 061B100266, and 061B023466 (part of the MBC 5000 Series), is a compact and reliable pressure control solution designed for industrial and marine applications. Built to withstand harsh environments—such as machine rooms onboard ships—it prioritizes space efficiency and durability, making it ideal for scenarios where reliability and compactness are critical.

As part of Danfoss' block system (integrating MBC pressure controls, MBS pressure transmitters, and MBV test valves), it offers seamless integration with related components. The MBC5100 model, in particular, holds major marine approvals, ensuring compliance with maritime standards. With high vibration resistance and accurate pressure monitoring via a fixed low differential, it is suitable for alarm indication, shutdown, control, and diagnostics across diverse equipment like motors, pumps, compressors, and more.

Key Features

Harsh Environment Compatibility: Designed for severe industrial and marine environments, enduring tough conditions such as high vibration and temperature fluctuations.
High Vibration Stability: Exhibits strong resistance to vibration, ensuring consistent performance in dynamic settings like ship machine rooms.
Danfoss Block System Integration: Part of the Danfoss block system, enabling streamlined system design and compatibility with related components.
Marine Approvals: MBC 5100 comes with all major ship approvals, making it suitable for marine applications.
High Repeatability: Ensures accurate and consistent pressure monitoring, critical for reliable alarm and control functions.
Compact Design: Optimized for machine building, with a space-saving structure ideal for limited installation spaces.
Versatile Applications: Suitable for alarm indication, shutdown, control, and diagnostics in various equipment including motors, pumps, and compressors.
Optional Test Valves: MBV test valves are available as a standard option, enhancing maintenance and testing convenience.

Technical Specifications

Certification: CE

Place of Origin: Poland

Brand Name: Danfoss

Model Numbers: MBC5100, 061B100266 (representative models)

Type: MBC 5100 (Heavy Duty Pressure Switch)

Max. Voltage: 250V

Max. Working Pressure: 15 bar / 220 psig

Product Name: Pressure Control Switch

Ambient Temperature Range: -40 °C to 85 °C (-40 °F to 180 °F)

Contact Function: SPDT (Single Pole Double Throw)

Enclosure Rating: IP65 (dust and water jet resistant)

Pressure Connection: 1/4 inch female thread

Pressure Sensing Element: Bellows (ensures reliable pressure detection)

Contact Load: 0.5 A at 250 V

Net Weight: 0.25 kg
