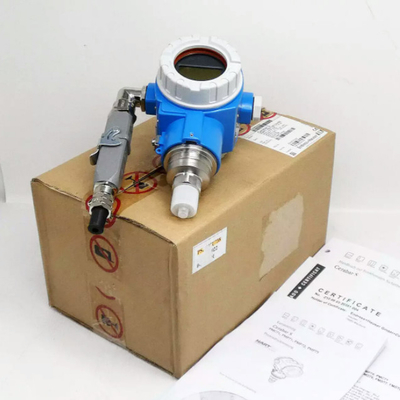

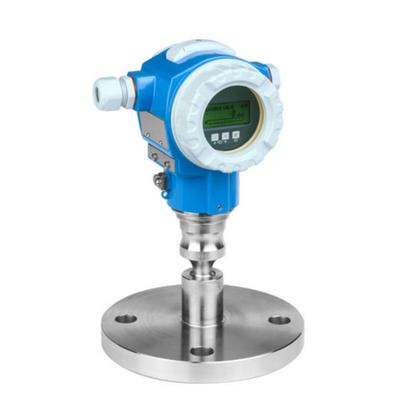

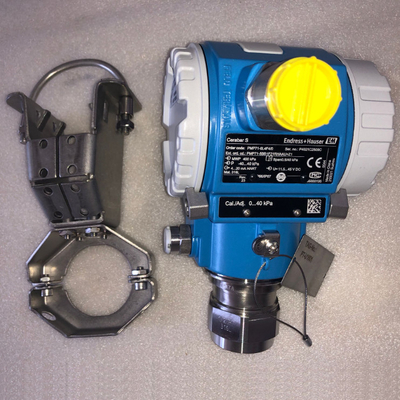

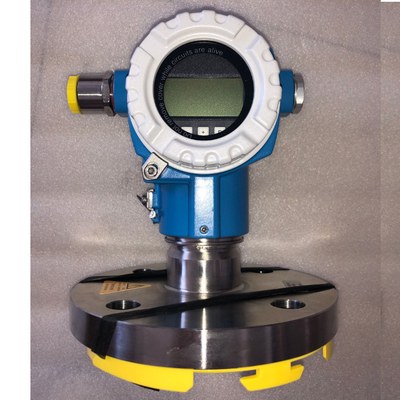

Name: Endress+Hauser Cerabar S PMP71 Digital Pressure Transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: PMP71
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Endress+Hauser Cerabar S PMP71 Digital Pressure Transmitter

Endress+Hauser digital pressure transmitter

PMP71 precision pressure sensor

Cerabar S industrial pressure transmitter

Brand Name:

Endress+Hauser

Certification:

Model Number:

PMP71

Request A Quote

Product Details

Warranty:

1 Year

Process Temperature:

-40°C...125°C (-40°F...257°F)

Measuring Principle:

Absolute And Gauge Pressure

Supply Voltage:

10,5...45V DC

Ambient Temperature:

-50°C...85°C (-58°F...185°F)

Communication:

HART

Highlight:

Endress+Hauser digital pressure transmitter

PMP71 precision pressure sensor

Cerabar S industrial pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer LCT216 Digital Timer Tachometer Counter Industrial Multifunction

Get Best Price

UT35A UT32A Temperature Controller with Color LCD Display

Get Best Price

Kromschroder Tightness Control Unit 220-240V AC for Gas Burner Systems

Get Best Price

86--17719566736

Contact Now

Product Description

Endress+Hauser Cerabar S PMP71 Digital Pressure Transmitter

Product Overview

The Endress+Hauser Cerabar S PMP71 is a high-precision digital pressure transmitter designed for absolute and gauge pressure measurement in demanding industrial applications. Manufactured in Germany, it delivers exceptional accuracy and reliability for process applications including pressure, level, volume, or mass measurement in liquids and gases.

Key Attributes

Attribute	Value
Warranty	1 Year
Process Temperature	-40°C...125°C (-40°F...257°F)
Measuring Principle	Absolute And Gauge Pressure
Supply Voltage	10,5...45V DC
Ambient Temperature	-50°C...85°C (-58°F...185°F)
Communication	HART

Advanced Features

High Accuracy: ±0.05% standard accuracy (±0.025% for Platinum variant) with excellent reproducibility and long-term stability.
Wide Pressure Range: Measures from -1/0 up to 700 bar (-15/0 up to 10,500 psi).
Safety Certified: SIL2/3 certification (IEC 61508) with gas-tight feedthrough for critical safety applications.
Robust Construction: Available in two-chamber aluminum or 316L stainless steel housing for corrosion resistance.
Flexible Communication: Supports HART, PROFIBUS PA, and FOUNDATION Fieldbus protocols.
Easy Operation: Menu-guided setup via local display and HistoROM data management for fast diagnostics.

Technical Specifications

Brand: Endress+Hauser

Model: PMP71 (PMP75 variant with welded metal sensor available)

Output Signal: 4...20 mA

Process Connections: Threads and flange connections

Certifications: International explosion protection, WHG, hygienic approvals, marine approvals

Key Benefits

Industry-leading accuracy and stability for critical process measurements

Enhanced safety with SIL2/3 certification for hazardous environments

Simplified integration and maintenance with flexible communication options

Durable construction for reliable operation in extreme conditions

Global certifications for compliance with international standards
