Name: KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR104F
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSGYR104F Fibre Optic Gyroscope ±500°/s 70×70×32mm

Fibre Optic Gyroscope ±500°/s

Electronic Gyroscope Sensor 70×70×32mm

Fibre Optic Gyroscope with warranty

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KSGYR104F

Request A Quote

Product Details

Supply Voltage:

+5V

Dimensions:

70×70×32 Mm

Start Time:

Dynamic Range:

±500 °/s

Operate Temperature:

-40°C～+70°C

Storage Temperature:

-45°C～+80°C

Highlight:

Fibre Optic Gyroscope ±500°/s

Electronic Gyroscope Sensor 70×70×32mm

Fibre Optic Gyroscope with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Three-axis gyroscope sensor for robot, Nonlinearity ≤0.05(%FR), zero-bias stability 12(°/h)

Get Best Price

±5V Supply Voltage Electronic Gyroscope Sensor for Robotics Applications

Get Best Price

Cross Coupling ≤2 % and Nonlinearity ≤0.05 %FR MEMS Gyro for High Precision Navigation

Get Best Price

Fiber optic gyroscopes for aircraft navigation and platform stability testing with ≤0.01(°) / H Bias drift

Get Best Price

86--17719566736

Contact Now

Product Description

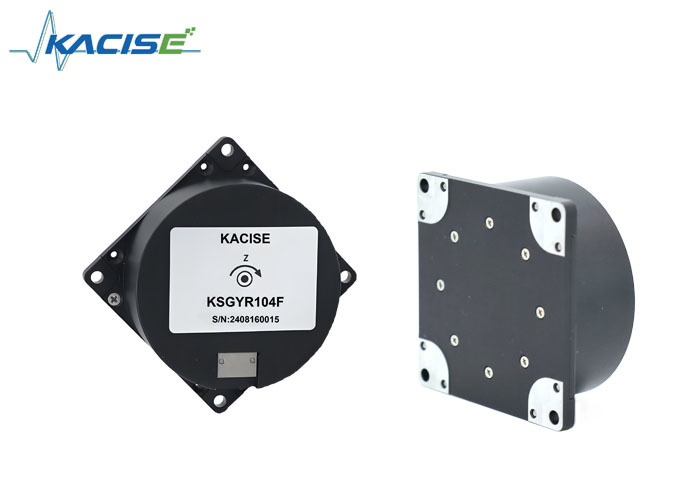

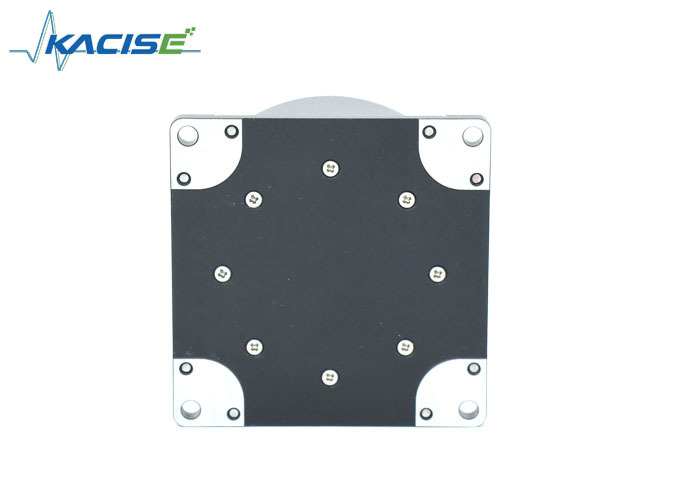

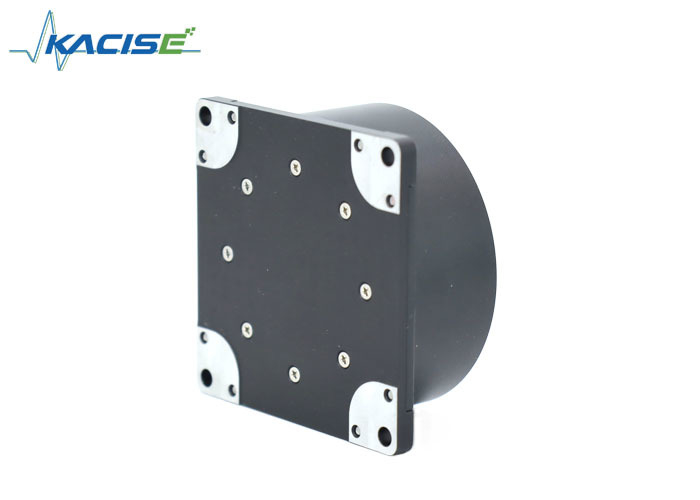

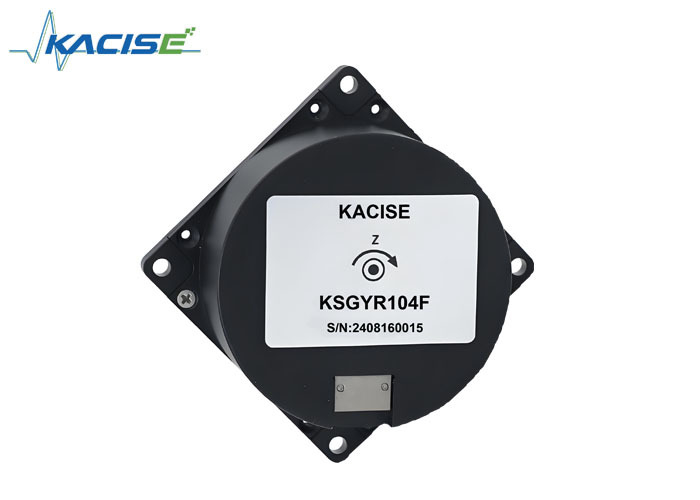

KSGYR104F Fibre Optic Gyroscope

Product Overview

The KSGYR104F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along the sensitive axis. It utilizes a digital closed-loop detection circuit to extract optical path differences caused by external angular velocity, providing precise real-time angular velocity signal detection.

Key Attributes

Attribute	Value
Supply voltage	+5V
Dimensions	70×70×32 mm
Start time	5s
Dynamic range	±500 °/s
Operate temperature	-40°C～+70°C
Storage temperature	-45°C～+80°C

Product Features

Accurately measures angular speed of moving objects
All solid state design with no rotating or friction parts
Extended operational lifespan
Large dynamic range for versatile applications
Instant start capability
Simple, robust structure

Applications

Gimbal camera stabilization
Flight control platforms
Inertial navigation systems
Inertial monitoring systems
Optical and photography platform stabilization
Inertial measurement units

Technical Specifications

Parameter	KSGYR104F H	KSGYR104F M	KSGYR104F L
Power supply parameter
Supply voltage	+5V	+5V	+5V
Product performance
Dimensions	70×70×32 mm	70×70×32 mm	70×70×32 mm
Start time	5s	5s	5s
Bias (10s smooth, fix temperature)	≤0.03(10s) °/h ≤0.01(100s) °/h	≤0.05 °/h	≤0.3 °/h
Bias stability (10s smooth -45°C~+70°C)	≤0.1 °/h	≤0.15 °/h	≤0.5 °/h
Bias repeatability	≤0.03°/h	≤0.05°/h	≤0.3°/h
Random walk	≤0.005°/h1/2	≤0.01°/h1/2	≤0.02°/h1/2
Scale factor non-linearity	≤10 ppm	≤20 ppm	≤50 ppm
Scale factor repeatability	≤10 ppm	≤20 ppm	≤50 ppm
Dynamic range	±500 °/s	±500 °/s	±500 °/s
Power dissipation (full temperature)	<4W	<4W	<4W
Weight	<290g	<290g	<290g
Environment
Operate temperature	-40°C～+70°C	-40°C～+70°C	-40°C～+70°C
Storage temperature	-45°C～+80°C	-45°C～+80°C	-45°C～+80°C
