Name: KSGYR322M Three Axis Digital Gyro
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR322M
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSGYR322M Three Axis Digital Gyro

three axis digital gyro sensor

digital gyro with warranty

fluid level meter gyro

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSGYR322M

Request A Quote

Product Details

Input Voltage:

5V DC

Power Dissipation:

≤1W @5V DC

Range:

±500(triaxial)°/s

Bias:

≤±0.1°/s(In 500°/s)

Bias Stability:

≤0.5°/h(Allan Deviation)

Bias Repeatability:

≤0.05°/s

Size:

45×39×20mm

Highlight:

three axis digital gyro sensor

digital gyro with warranty

fluid level meter gyro

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Get Best Price

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Get Best Price

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Get Best Price

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Get Best Price

86--17719566736

Contact Now

Product Description

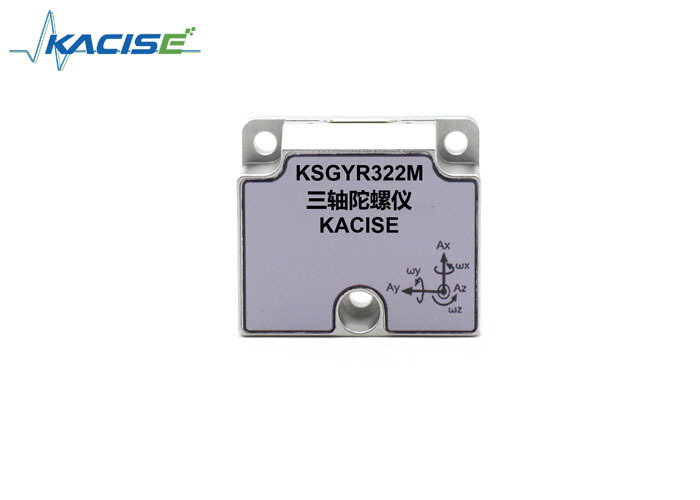

KSGYR322M Three Axis Digital Gyro

Product Attributes

Attribute	Value
Input voltage	5V DC
Power dissipation	≤1W @5V DC
Range	±500(triaxial)°/s
Bias	≤±0.1°/s(In 500°/s)
Bias stability	≤0.5°/h(Allan deviation)
Bias repeatability	≤0.05°/s
Size	45×39×20mm

Product Description

KSGYR322M Three Axis Digital Gyro

Product Introduction

KSGYR322M series solid state angular rate sensor (gyro) measures angular rate using micromechanoelectronic system (MEMS) technology chips. Manufactured with bipolar metal oxide semiconductor (BIMOS) technology production process and spherical grid arrangement of current carrier welding technology, it offers high reliability and package ruggedness. Features include Self-Test function for in-machine detection (BIT).

Operating Principle

KSGYR322M series angular rate sensors operate on the principle of resonator gyro. Two polysilicon sensitive structures, each containing a high-frequency vibrating frame, are driven electrostatically to resonate. The frame's outer ends form a capacitance-sensitive structure that detects Coriolis motion generated at the angular rate, producing an electrical signal proportional to the angular rate after amplification and modulation.

Features

Zero bias calibration
Temperature drift compensation
Wide measurement range
Wide bandwidth
Non-linear correction
Wide operating temperature range
Compact size and light weight
High impact acceleration resistance

Applications

Intelligent automobile systems
Geological exploration equipment
Robotics
Missile guidance and control
Aircraft stability control
Strapdown inertial navigation
Antenna stability and camera stabilization

Technical Specifications

Power Supply Parameters

Power Voltage	5V DC
Power @25°C	1W

Product Performance

Range	±500°/s
Bias	≤±0.1°/s
Bias stability	≤0.5°/h
Bias temperature sensitivity	≤4°/s
Scale factor nonlinearity	≤0.05%
Resolution	≤0.01°/s
Weight	<60g
MTBF	10000h

Environmental Specifications

Operating temperature	-40°C to +80°C
Storage temperature	-55°C to +85°C
Random vibration	6.06g
Shock resistance	5000g

Dimensions
