Name: KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR301M
Price: 431.00 USD
Availability: InStock

Home > products > Electronic Gyroscope Sensor >

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

MEMS quartz gyroscope ±100°/s range

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSGYR301M

Request A Quote

Product Details

Input Voltage:

5±0.2 Vdc

Input Current:

< 50 MA

Measurement Range:

±100°/s

Bias:

≤0.03°/s

Bias Stability:

≤20°/h

Bias Repeatability:

≤20°/h

Highlight:

MEMS quartz gyroscope ±100°/s range

5Vdc quartz gyroscope sensor

fluid level meter gyroscope sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

Get Best Price

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

Get Best Price

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

Get Best Price

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

Get Best Price

86--17719566736

Contact Now

Product Description

KSGYR301M MEMS Quartz Gyroscope ±100°/s Range 5Vdc

Product Overview

The KSGYR301M MEMS Quartz Gyroscope utilizes advanced quartz MEMS technology to measure angular velocities across multiple axes (configurable to customer requirements), with digital output via serial port.

Key Specifications

Attribute	Value
Input Voltage	5±0.2 Vdc
Input Current	< 50 mA
Measurement range	±100°/s
Bias	≤0.03°/s
Bias stability	≤20°/h
Bias repeatability	≤20°/h

Product Features

Mass production capability
Fast startup time (2 seconds)
Wide operating temperature range (-40°C to +65°C)
Low power consumption (≤50 mA)
High reliability design
Compact dimensions (22.4×22.4×9 mm)
Serial output (RS422)

Technical Specifications

Parameter	KSGYR301M
Power Requirements
Power Voltage	5V DC
Power @ 25°C	0.3W
Supply current	≤50 mA
Performance
Range	±100°/s
Output	RS422
Size	22.4mm×22.4mm×9mm
Run-up time	2s
Bias	≤0.03°/s
Bias stability	≤20°/h
Random walk	≤0.25°/√h
Scale factor nonlinearity	≤0.02%
Noise	≤0.01°/s/g
Resolution	≤0.005°/s
Bandwidth	≥90Hz
Weight	≤50g
Environmental
Operating temperature	-40°C~+65°C
Random vibration	6.06g
Shock	200g

Applications

Airborne instrument measurement
Robotics systems
Automated testing equipment
Attitude reference systems
Control systems
Flight testing
Platform stabilization

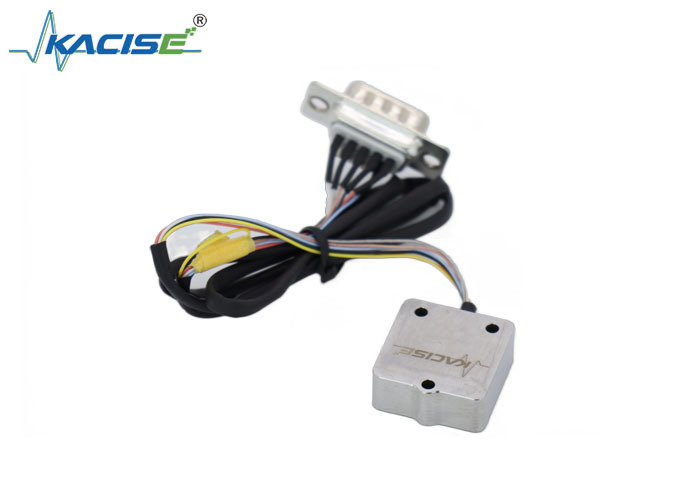

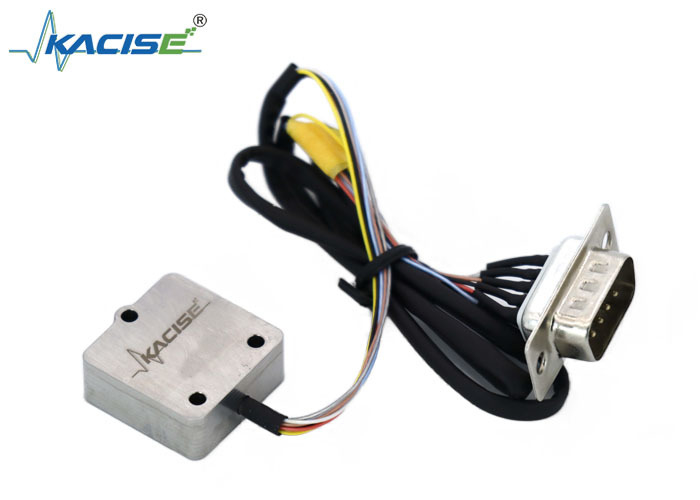

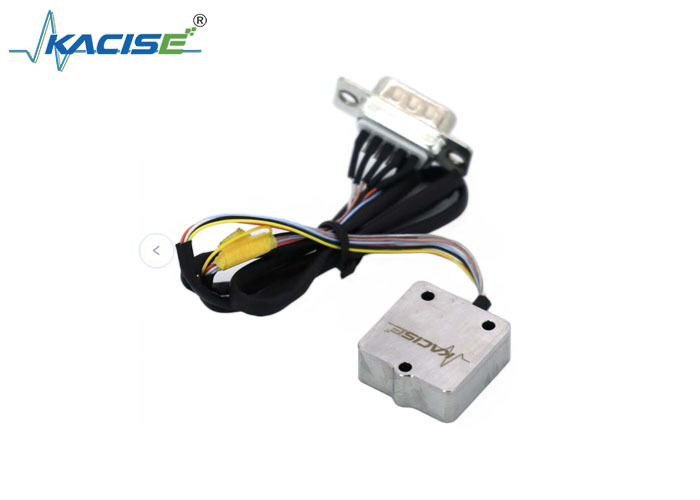

Product Image

Dimensions

Unit: mm
