Product Description

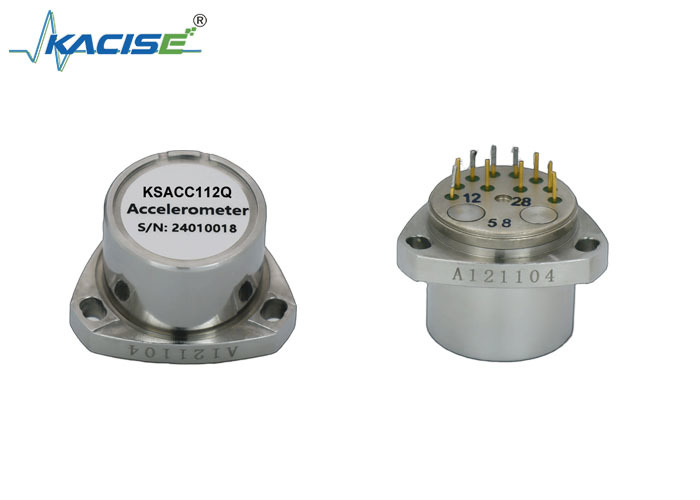

KSACC112Q Quartz Flexible Accelerometer ±20g Range

Product Attributes

Attribute	Value
Power Voltage	±12~±18V DC
Operating Temperature	-45°C~+80°C
Storage temperature	-55°C～+80°C
Shock	100g
Vibration Peak Sine	15g@20Hz ~ 2000Hz

Product Description

KSACC112Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. The accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Product Series

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to low-cost, harsh environment-resistant KSACC117Q accelerometers. These are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Built-in digital temperature sensor
Wide load resistance range
Triangle precision mounting flanges
Application in next-generation weapon inertial navigation systems
Two models available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±20g
Size	Ø25.4×30
Bias	<5mg
Bias stability	≤10ug
Bias temperature sensitivity	10ug/°C
Bias repeatability	≤10ug
Scale factor	1.2～1.6mA/g
Scale factor temperature sensitivity	10ppm/°C
Second order nonlinear coefficient	≤10μg/g²
Second order nonlinearity coefficient repeatability	≤5μg/g²
Scale factor repeatability	10ppm
Noise	<1μg
Threshold	<1 μg
Bandwidth	<200 Hz
Weight	≤70g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	50g
Shock	100g

Dimensions

Unit: mm
