Product Description

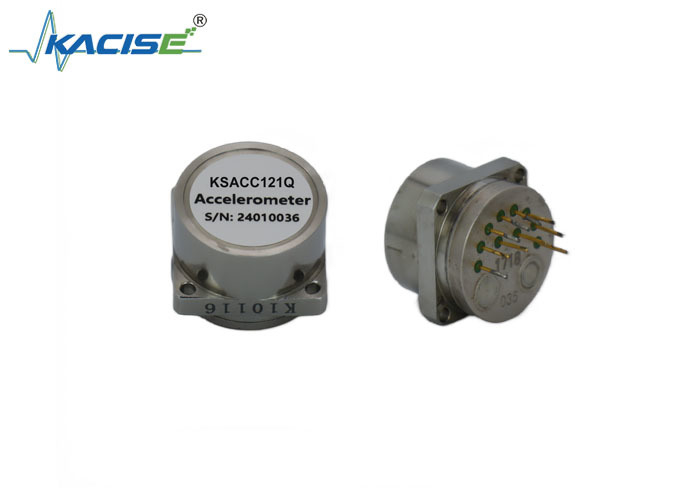

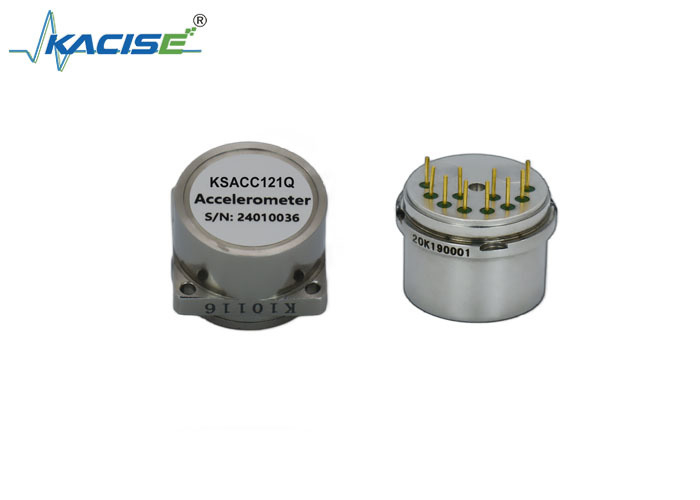

KSACC121Q Quartz Flexible Accelerometer for Inertial Navigation

Product Introduction

The KSACC121Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When the carrier is subjected to acceleration, the output is precisely proportional to the input acceleration. Our accelerometer features a current output form with high output impedance, allowing users to select sampling resistance according to their requirements without affecting system stability.

Our quartz flexible accelerometer series includes products ranging from high-precision μg KSACC111Q accelerometers for satellite microgravity measurement to cost-effective, rugged KSACC117Q accelerometers. These are widely used in aerospace, aviation, navigation, marine, vehicle, petroleum, and geotechnical engineering applications, providing signals for navigation, guidance, control, leveling, and monitoring systems.

Key Features

Excellent index repeatability
Analog output
Compact size and light weight
Wide load resistance range
Square precision mounting flanges
Ideal for oil drilling measurement systems
Two available models
Superior high temperature resistance

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

KSACC117Q Model Specifications
Power Supply Parameters
Power Voltage	12.5~15.5VDC
Power at 25°C	180mW
Supply current	6mA
Product Performance
Range	±20 g
Size	25.4mm×25.4mm×18.6mm
Bias	<20 mg
Bias stability	1mg
Bias temperature sensitivity	200ug/°C
Bias repeatability	1mg
Scale factor	2.75 mA/g ± 1.8%
Scale factor temperature sensitivity	800ppm/°C
Second order nonlinear coefficient	≤200μg/g²
Second order nonlinearity coefficient repeatability	≤150μg/g²
Scale factor repeatability	300ppm
Cross coupling coefficient	<3 mrad
Noise	<5 μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤55g
Environmental Specifications
Operating temperature	0°C～+160°C
Storage temperature	0°C～+175°C
Random vibration	20 grms
Sine vibration	30g peak, 50 to 800Hz
Working shock	1000g
Shock	2000g

Dimensions

Unit: mm
