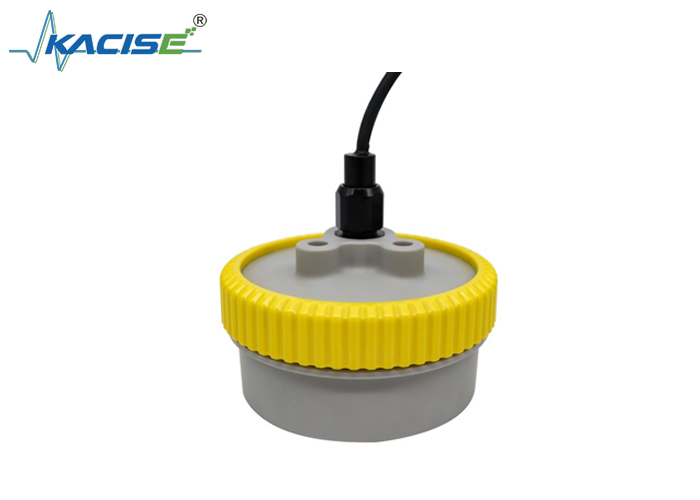

Name: Eight-Beam Underwater Obstacle Avoidance Sensor with Blind Zone < 200 mm and Detection Range 200~3000 mm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Eight-Beam
Price: 892.00 USD
Availability: InStock

Home > Products > Ultrasonic Flow Meter >

Eight-Beam Underwater Obstacle Avoidance Sensor with Blind Zone < 200 mm and Detection Range 200~3000 mm

Eight-Beam Underwater Obstacle Avoidance Sensor

Blind Zone < 200 mm Ultrasonic Flow Meter

Detection Range 200~3000 mm Multi-Beam Ultrasonic Ranging Sensor

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

Eight-Beam

Request A Quote

Product Details

Output Type:

Standard TTL Output (Modbus-RTU Protocol)

Accuracy:

±0.5%

Repeatability Accuracy:

±0.5%

Rated Working Current \(I_g\):

≤60mA (24V), With Short-circuit/overload Protection

Highlight:

Eight-Beam Underwater Obstacle Avoidance Sensor

Blind Zone < 200 mm Ultrasonic Flow Meter

Detection Range 200~3000 mm Multi-Beam Ultrasonic Ranging Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/A,D/P,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

Get Best Price

Video

High performance good price portable ultrasonic open channel flow meter

Get Best Price

Video

Battery Powered Flowmeter

Get Best Price

The ultrasonic Doppler sensor can measure the flow speed, flow and liquid level

Get Best Price

86--17719566736

Contact Now

Product Description

Eight-Beam Underwater Obstacle Avoidance Sensor

Measurement Principle

The sensor operates on ultrasonic measurement principles. Ultrasonic signals emitted by the probe reflect off liquid or solid media and return to the same probe. Distance measurement is calculated by analyzing the time difference between signal emission and reception.

L = (v × t) / 2
L: Distance from probe to material surface (meters)
v: Temperature-compensated sound velocity (m/s)
t: Sound wave travel time (seconds)

Product Description

This multi-beam ultrasonic ranging device extends standard ultrasonic ranging through software-implemented round-robin testing. The system features multiple transmissions with single reception capability, enabling omnidirectional distance measurement for underwater obstacle avoidance applications. Data storage and Modbus protocol communication support both passive and active data upload modes.

Product Features

Multi-channel round-robin testing capability
High-speed response with precision measurement
IP68-rated transducer protection
TTL communication with read/write functionality
4-pin aviation plug for simplified installation
Wide voltage input range: 10.8VDC-26.4VDC

Product Applications

Underwater position and distance detection
Obstacle avoidance for underwater robotics
Distance-setting applications in aquatic environments

Technical Parameters

General Parameters
Blind Zone	< 200 mm
Detection Range	200-3000 mm
Transducer Frequency	≈400 kHz
Electrical Characteristics
Operating Voltage	10.8VDC-26.4VDC (reverse polarity protected)
No-load Current	≤30mA
Voltage Drop	≤2.5V
Startup Delay	<1000ms
Output Characteristics
Output Type	Standard TTL (Modbus-RTU protocol)
Rated Working Current	≤60mA (24V) with protection
Repeatability Accuracy	±0.5%
Accuracy	±0.5%
Environmental Specifications
Operating Temperature	-20°C to 60°C
Storage Temperature	-20°C to 60°C
Mechanical Specifications
Connection	GX12 4-pin aviation plug
Mounting Thread	M6*20 (adjustable length)
Protection Class	IP68
Weight	≈400g
Material	Polycarbonate (PC)
Compliance
Standard	GB/T 14048.10 - 2016
