Name: KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD100
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

KWD100 Handheld Depth Sounder with 0.7~100m Range 3.6°±10% Emission Angle and ±0.5% Accuracy Ultrasonic Depth Sensor

0.7~100m Range Handheld Depth Sounder

3.6°±10% Emission Angle Ultrasonic Depth Sensor

±0.5% Accuracy Underwater Ranging Device

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KWD100

Request A Quote

Product Details

Range:

0.7~100m

Power Supply:

18650 Rechargeable Lithium Battery

Emission Angle:

3.6°±10%

Communication:

USB-MODBUS

Weight Measurement Accuracy:

±0.5% (maximum Range)

Highlight:

0.7~100m Range Handheld Depth Sounder

3.6°±10% Emission Angle Ultrasonic Depth Sensor

±0.5% Accuracy Underwater Ranging Device

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Get Best Price

Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance

Get Best Price

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone

Get Best Price

Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range

Get Best Price

86--17719566736

Contact Now

Product Description

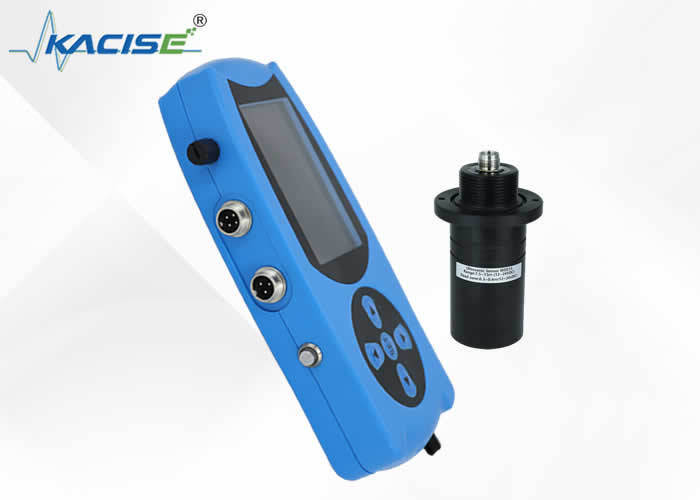

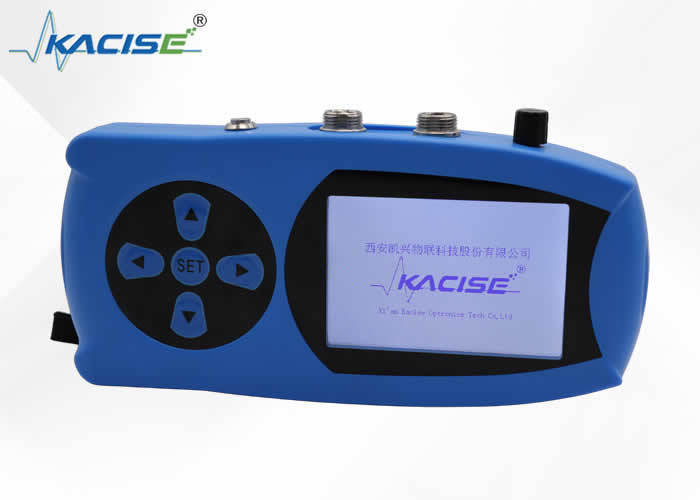

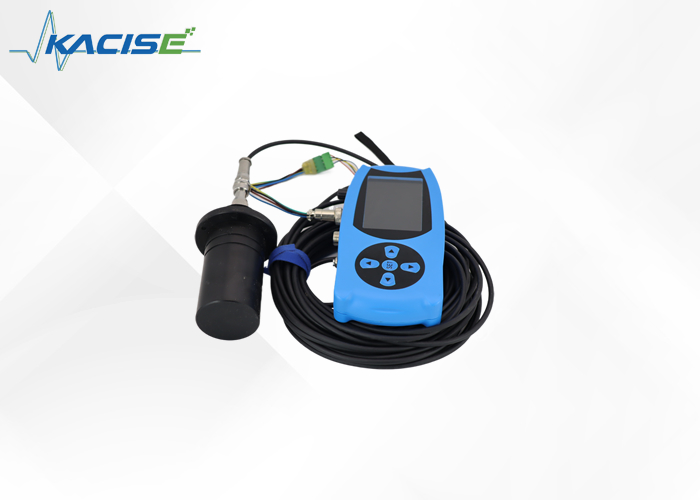

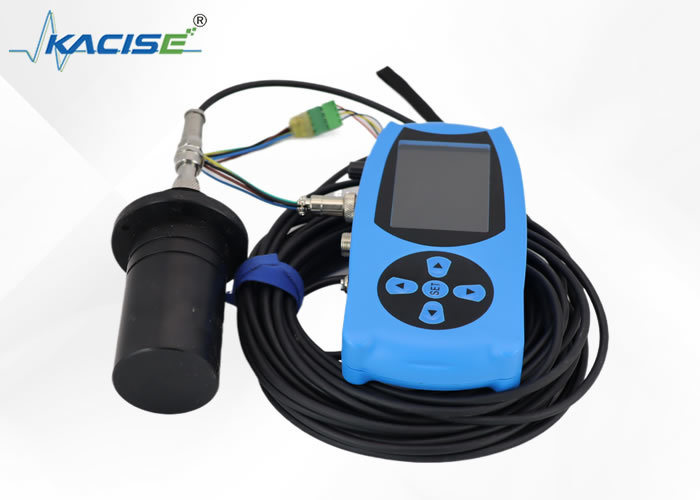

KWD100 Handheld Depth Sounder

Product Overview

Utilizing ultrasonic ranging technology, the KWD100 Handheld Depth Sounder performs accurate underwater ranging and depth measurement. This versatile device features:

Integrated transducer for direct depth measurement
External power and communication capabilities
Compatibility with various ranging sensors
Real-time transducer and sensor signal monitoring

Technical Specifications

Handheld Depth Sounder
Range	0.7~100m
Weight measurement accuracy	±0.5% (maximum range)
Communication	USB-MODBUS protocol
Emission angle	3.6°±10%
Power supply	18650 rechargeable lithium battery
Ambient temperature	-20℃ to 60℃
Probe cable	3-core shielded cable
Probe connection	3-core aviation plug connection
Display	LCD display

Handheld Host Computer
External power supply	DC12V-25.6v 100MA
Mounted sensor connection	4-pin aviation plug connection
Mounted sensor range	Depending on the sensor mileage
Display	LCD display

Application Fields

The KWD100 Handheld Depth Sounder is ideal for various underwater measurement applications including hydrographic surveys, marine research, and industrial inspections.
