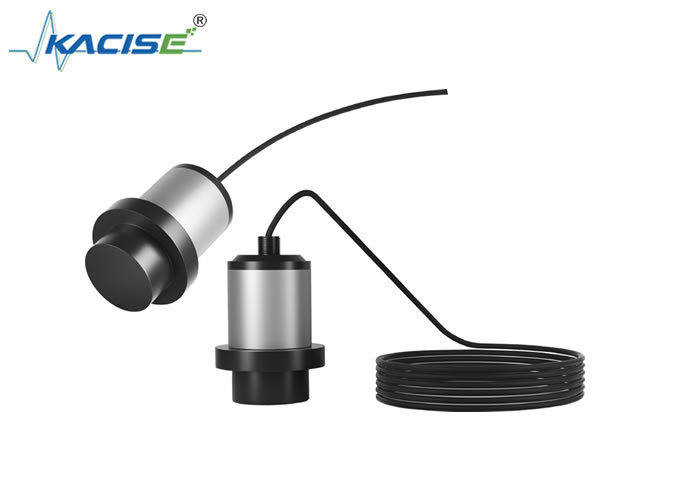

Name: KWD400 360-Degree Scanning Sonar with 0.25~10m Range ±0.5%FS Accuracy and ≤12W Power Consumption Ultrasonic Transducer Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD400
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

KWD400 360-Degree Scanning Sonar with 0.25~10m Range ±0.5%FS Accuracy and ≤12W Power Consumption Ultrasonic Transducer Sensor

0.25~10m Range 360-Degree Scanning Sonar

±0.5%FS Accuracy Ultrasonic Transducer Sensor

≤12W Power Consumption KWD400 Sonar

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KWD400

Request A Quote

Product Details

Range:

0.25~10m

Operating Temperature:

-20~60℃

Digital Output:

RS485 Host Computer Imaging

Power Consumption:

≤12W

Operating Voltage:

24Vdc±10% (recommended Power Supply Current 1.5A Or Above)

Accuracy:

±0.5%FS

Highlight:

0.25~10m Range 360-Degree Scanning Sonar

±0.5%FS Accuracy Ultrasonic Transducer Sensor

≤12W Power Consumption KWD400 Sonar

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Get Best Price

Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance

Get Best Price

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone

Get Best Price

Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range

Get Best Price

86--17719566736

Contact Now

Product Description

KWD400 360-Degree Scanning Sonar

Product Overview

The KWD400 360-degree scanning sonar is a fully sealed underwater detection system designed for continuous immersion. Its advanced host computer software generates real-time environmental mapping with precise distance measurement capabilities, adaptable to various range settings based on operational requirements.

Key Features

Complete waterproof sealing for prolonged underwater operation
Real-time environmental mapping with distance measurement
Adjustable scanning range from 0.25 to 10 meters
High-precision measurement with ±0.5%FS accuracy
Robust stainless steel and rubber construction

Technical Specifications

Parameter	Specification
Product Name	360-degree scanning sonar
Range	0.25~10m
Accuracy	±0.5%FS
Operating Voltage	24Vdc±10% (recommended power supply current 1.5A or above)
Power Consumption	≤12W
Digital Output	RS485 host computer imaging
Operating Temperature	-20~60℃
Storage Temperature	-40~80℃
Operating Pressure	1 standard atmospheric pressure
Installation Method	Bracket hoisting
Protection Level	IP68
Weight	≤2000g
Casing Material	Stainless steel + rubber
Wire Length	Standard 5 meters (custom lengths available)

Application Fields
