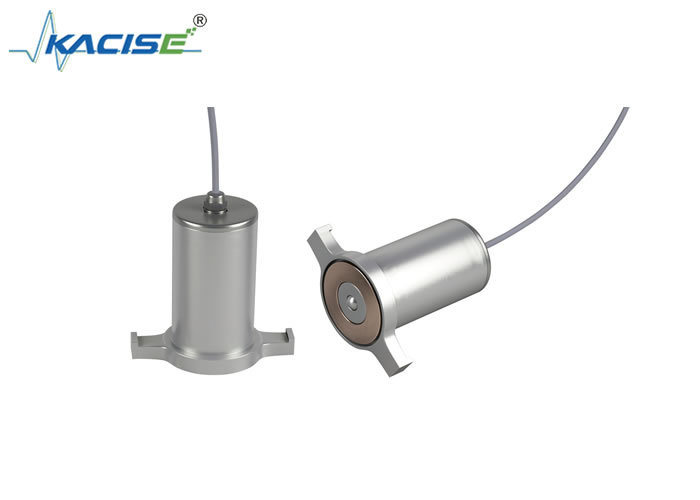

Name: M42＆M45 Hydrophone with IP68 Protection and Analog Output for High Sensitivity Underwater Acoustic Sensing
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD520
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

M42＆M45 Hydrophone with IP68 Protection and Analog Output for High Sensitivity Underwater Acoustic Sensing

M42＆M45 Hydrophone

IP68 Protection Hydrophone

Analog Output Hydrophone

Place of Origin:

china

Brand Name:

kacise

Certification:

Model Number:

KWD520

Request A Quote

M42＆M45 Hydrophone with IP68 Protection and Analog Output for High Sensitivity Underwater Acoustic Sensing

Product Details

Output Signal:

Analog Output, (deep Integration To Signal Amplification 10 Times (20dB) And 100 Times (40dB))

Power Consumption:

≤150 MW

Power Supply:

6-13V DC

Pascal Response Frequency Range:

20Hz-20KHz

Sensitivity:

≥-166.5dB Vre: 1V/μ

Highlight:

M42＆M45 Hydrophone

IP68 Protection Hydrophone

Analog Output Hydrophone

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 0.2-10m Detection Range 10.8VDC-26.4VDC Operating Voltage and 1%-3% Accuracy

Get Best Price

Six-Beam Underwater Obstacle Avoidance Sensor with 20m Range ±0.5% Accuracy and 150m Water Pressure Resistance

Get Best Price

Five-Beam Underwater Obstacle Avoidance Sensor with 10.8VDC to 26VDC Power Supply ±0.5% Measurement Accuracy and <20cm Blind Zone

Get Best Price

Four-Beam Underwater Obstacle Avoidance Sensor with 15cm Blind Zone 10.8-26VDC Power Supply and 3m Range

Get Best Price

86--17719566736

Contact Now

Product Description

KWD520 M42＆M45 Hydrophone

Product Overview

Designed to maintain high accuracy and sensitivity in environments with significant temperature and pressure variations, this hydrophone features two types of preamplifiers. Ideal for noise monitoring in liquid flow and fluctuation applications, it offers threaded connections for easy installation.

Technical Specifications

Specification	Detail
Product name	M42＆M45 Hydrophone
Sensitivity	≥-166.5dB Vre: 1V/μPascal
Response frequency range	20Hz-20KHz
Power supply	6-13V DC
Power consumption	≤150 mW
Output signal	Analog output (deep integration to signal amplification 10 times (20dB) and 100 times (40dB))
Material	Metal
Static pressure bearing	68Bar (1000psi)
Connection method	Clamp-type locking, clamp width ≤12mm
Protection level	IP68
Weight	≤600g, including 2m additional cable
Connecting cable	Low noise four-core shielded cable 2m
Overall length	80mm, 88mm

Application Fields

KWD520 M42＆M45 Hydrophone application diagram
