Name: Honeywell Model TJE Precision Pressure Transducer with Temperature Compensation 60 °F to 160 °F All-Welded Stainless Steel Construction and Shunt Calibration
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model TJE
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model TJE Precision Pressure Transducer with Temperature Compensation 60 °F to 160 °F All-Welded Stainless Steel Construction and Shunt Calibration

Temperature Compensation Precision Pressure Transducer

All-Welded Stainless Steel Pressure Transducer

Shunt Calibration Absolute Pressure Sensor

Brand Name:

Honeywell

Model Number:

Model TJE

Request A Quote

Product Details

Temperature Compensation:

1a. 60 °F To 160 °F

Shunt Calibra- Tion:

8a. Precision Internal Resistor11

Highlight:

Temperature Compensation Precision Pressure Transducer

All-Welded Stainless Steel Pressure Transducer

Shunt Calibration Absolute Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

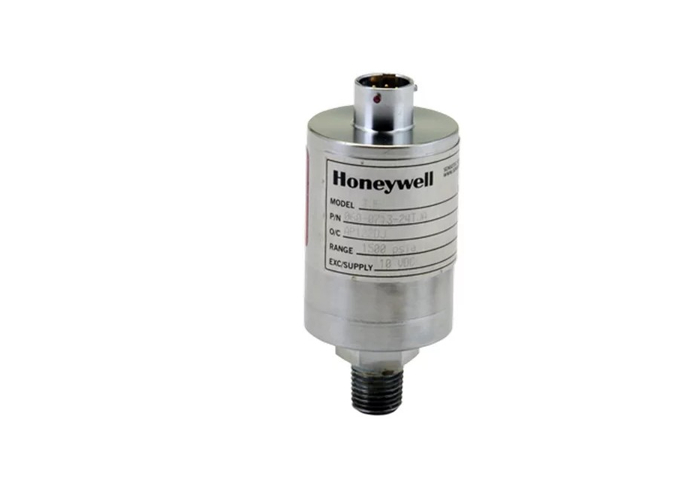

Honeywell Model TJE Precision Gage/Absolute Pressure Transducer

Model TJE pressure transducers are all-welded stainless steel sensors built for rugged industrial applications requiring high accuracy and measurement stability. Available with various options for extended temperature operation, electrical terminations, and high-level outputs including 5 Vdc or 10 Vdc and 4 mA to 20 mA. Most high-level output models feature internal shunt calibration circuits for easy sensor setup to data systems. Optional internal signature calibration chip provides calibration information for automatic setup with the Model SC four-or-twelve channel digital indicator.

The gage Model TJE is a strain gage based transducer featuring a unique "true gage" design with a second welded stainless steel diaphragm that hermetically seals the strain gage circuitry from atmospheric contamination. The absolute Model TJE has an all-welded vacuum reference chamber for long-term stability.

Key Features

0.1% accuracy
0.0025% F.S./°F temperature effect
1 psig/a to 60000 psig/a range
mV/V, 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc output
All-welded, stainless steel construction
Intrinsically safe available (2N option only)
CE compliant

Range Codes

Pressure range (psi)	1	2	5	10	15	25	50	75	100	150	200	300	500	750	1000	1500
Range Code	AP	AR	AT	AV	BJ	BL	BN	BP	BR	CJ	CL	CP	CR	CT	CV	DJ

Option Codes

Option Category	Available Options
Pressure ranges	1, 2, 5, 10, 15, 25, 50, 75, 100, 150, 200, 300, 750, 1500, 2000, 15000, 20000, 30000, 50000, 60000 psig/a
Temperature compensation	Multiple ranges from -65°F to 400°F
Internal amplifiers	Various voltage and current output options

Performance Specifications

Characteristic	Measure
Accuracy	±0.10% full scale
Linearity	±0.10% full scale
Hysteresis	±0.05% full scale

Environmental Specifications

Characteristic	Measure
Temperature compensated	15°C to 71°C [60°F to 160°F]
Temperature effect, zero	0.0025% full scale/°F

Mechanical Specifications

Characteristic	Measure
Wetted parts material	17-4 PH stainless steel (<2000 psig/a), 15-5 PH stainless steel (>2000 psig/a)
Weight	10 oz
