Name: Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model TJE Mid
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Honeywell precision pressure sensor

Honeywell Model TJE sensor

pressure sensor with warranty

Brand Name:

Honeywell

Model Number:

Model TJE Mid

Request A Quote

Product Details

Accuracy:

±0.1 % Full Scale

Output (standard):

2 MV/V (nominal)

Pressure Ranges:

50, 75, 100, 150, 200, 300, 500, 750 Psid

Line Pressure:

1500 Psi

Resolution:

Infinite

Highlight:

Honeywell precision pressure sensor

Honeywell Model TJE sensor

pressure sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

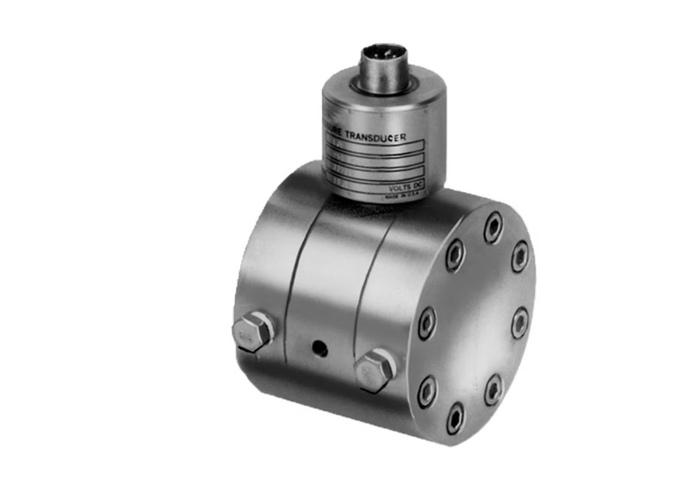

Honeywell Model TJE Mid

Part Number: 060-0741-08TJD

The Model TJE Mid Ultra Precision Range Wet/Wet Differential is a bonded foil strain gage transducer designed to accept fluid in both ports and measure differential pressure ranges from 50 psid to 750 psid. Standard features including overload stops and 17-4 PH stainless steel wetted material construction ensure durability in rugged industrial environments. This bi-directional unit achieves accuracies of 0.1% full scale.

Key Features

0.1% accuracy
50 psid to 750 psid range
Multiple output options: mV/V (standard), 4 mA to 20 mA, 0 Vdc to 5 Vdc, or 0 Vdc to 10 Vdc
Intrinsically safe available (2N option only)
CE approved

Part Number Details

Part Number	Description
060-0741-08TJD	Model TJE Mid, Ultra Precision Range, Wet/Wet, Differential Pressure Transducer; 0.1 %FS Accuracy; 17-4 PH Stainless Steel, Wetted Material; 50 psid to 750 psid; Bi-Directional; Intrinsically Safe and Amplified Options Available

Performance Specifications

Characteristic	Measure
Pressure ranges	50, 75, 100, 150, 200, 300, 500, 750 psid
Accuracy	±0.1 % full scale
Output (standard)	2 mV/V (nominal)
Line pressure	1500 psi
Resolution	Infinite

Environmental Specifications

Characteristic	Measure
Temperature, operating	-54 °C to 121 °C [-65 °F to 250 °F]
Temperature, compensated	15 °C to 71 °C [60 °F to 160 °F]
Temperature, effect, zero	±0.25 % full scale/100 °F
Temperature, effect, span	±0.25 % reading/100 °F

Electrical Specifications

Characteristic	Measure
Strain gage type	Bonded foil
Excitation (calibration)	10 Vdc
Excitation (acceptable)	Up to 10 Vdc or ac
Insulation resistance	10000 mOhm @ 50 Vdc
Bridge resistance	350 ohm
Shunt calibration data	Included
Elec. termination (std)	PTIH-10-6P or equivalent (hermetic stainless)
Mating connector (not incl.)	PT06A-10-6S or equiv. (AA111)

Mechanical Specifications

Characteristic	Measure
Media	Gas, liquid
Overload-safe	1500 psi
Pressure port	1/8-27 NPT female (2)
Dead volume	0.25 cu. in
Wetted parts material	17-4 PH stainless steel
Case material	Stainless steel

Range Codes

Range Code	Available ranges
BN	±50 psid
BP	±75 psid
BR	±100 psid
CJ	±150 psid
CL	±200 psid
CP	±300 psid
CR	±500 psid
CT	±750 psid

Option Codes

Many range/option combinations are available in our quick-ship and fast-track manufacture programs. Please see sensing.honeywell.com for updated listings.
