Name: Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model S
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Honeywell precision pressure sensor

Honeywell Model S pressure sensor

pressure sensor with warranty

Brand Name:

Honeywell

Certification:

Model Number:

Model S

Request A Quote

Product Details

Wetted Diaphragm:

10e. Iconel X-750

Shock And Vibration:

44a. Shock And Vibration Resistance

Accuracy:

1.0 % Full Scale6

Non-linearity And Hysteresis:

1.0 % Full Scale2

Highlight:

Honeywell precision pressure sensor

Honeywell Model S pressure sensor

pressure sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 434/435/437 Series Wing Union Hammer Union Pressure Transducer（Part Number：060-F827-02/060-P187-04）

Get Best Price

Honeywell Model 437 Precision Pressure Sensor with 9 Vdc to 28 Vdc Supply Voltage Stainless Steel Assembly and Inconel X-750 Wetted Diaphragm（Part Number：BP437）

Get Best Price

Honeywell Model S（Part Number ：060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Get Best Price

Honeywell Model TJE Mid（Part Number ：060-0741-08TJD）

Get Best Price

86--17719566736

Contact Now

Product Description

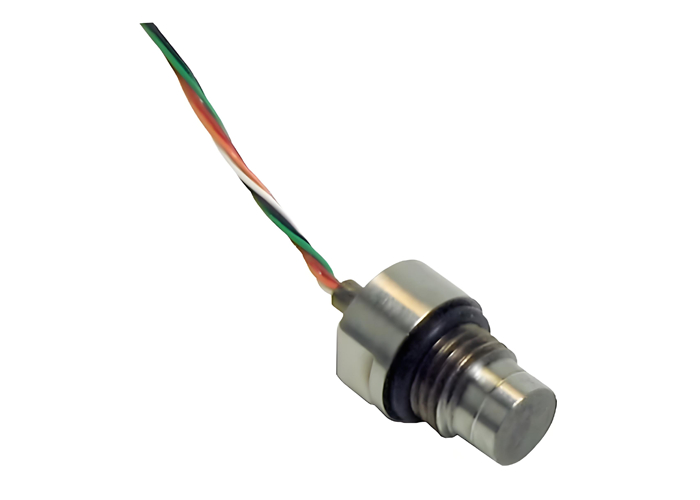

Honeywell Model S Pressure Transducers (Part Numbers: 060-1542-01G/060-1542-02G/060-1542-13G/060-1542-15G)

Honeywell's Model S subminiature, flush diaphragm pressure transducers accurately measure pressure ranges from 100 psi to 15,000 psi with 1% full-scale accuracy. These gauge-only transducers feature a high natural frequency and utilize a flush diaphragm manufactured from 17-4 PH stainless steel.

Temperature compensation is achieved through temperature-sensitive components inside the transducers. Each unit includes a small electrical zero balance circuit board in the lead wire (approximately 1 in x 0.087 in thick) that doesn't require matching temperature conditions with the transducer. All transducers feature four active bonded strain gauges arranged in a Wheatstone-bridge configuration.

Key Features

100 psi to 15000 psi measurement range
Flush mount design with no internal dead volume
High frequency response
mV/V output signal
1% accuracy
CE approved
17-4 PH stainless steel wetted material

Industry Applications

Energy
Logistics & Warehousing
Manufacturing

Part Numbers

Part Number	Description
060-1542-01G	BP357BR, 1A, 2U, 5E, 6AM:MODEL S, 100 PSI
060-1542-02G	BP357CJ, 1A, 2U, 5E, 6AM:MODEL S, 150 PSI
060-1542-13G	Model S Subminiature; Flush Diaphragm Pressure Transducer; 100 psi to 15,000 psi; Flush-Mount Design; 17-4 PH Stainless Steel, Wetted Material; High Frequency; mV/V Output; 1% Accuracy
060-1542-15G	Model S Subminiature; Flush Diaphragm Pressure Transducer; 100 psi to 15,000 psi; Flush-Mount Design; 17-4 PH Stainless Steel, Wetted Material; High Frequency; mV/V Output; 1% Accuracy

Performance Specifications

Characteristic	Measure
Pressure ranges (3/8-24 UNF thread)	100, 150, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000, 15000 psig
Pressure ranges (7/16-20 UNF thread)	150, 300, 750, 1500, 7500, 15000 psig
Accuracy	1.0% full scale
Non-linearity and hysteresis	1.0% full scale
Non-repeatability	±0.15% full scale
Output	2 mV/V
Resolution	Infinite

Environmental Specifications

Characteristic	Measure
Temperature, operating	-54°C to 149°C [-65°F to 300°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	0.01% full scale/°F
Temperature effect, span	0.02% reading/°F

Electrical Specifications

Characteristic	Measure
Strain gage type	Bonded foil
Excitation (calibration)	5 Vdc
Excitation (acceptable)	Up to 5 Vdc or (Vac)
Insulation resistance	5000 mOhm @ 50 Vdc
Bridge resistance	350 ohm
Shunt calibration data	Included
Electrical termination (std)	Four twisted leads (1.83 m [5 ft]) with external balance board

Mechanical Specifications

Characteristic	Measure
Media	Gases, liquids compatible with wetted parts
Overload, safe	50% over capacity
Overload, burst	400% full scale
Dead volume	Flush
Wetted parts material	17-4 PH stainless steel
Weight	2 oz
Case material	Stainless steel

Range Codes

Range Code	Available Ranges
BR	100 psig
CJ	150 psig
CL	200 psig
CP	300 psig
CR	500 psig
CT	750 psig
CV	1000 psig
DJ	1500 psig
DL	2000 psig
DN	3000 psig
DR	5000 psig
DT	7500 psig
DV	10000 psig
EJ	15000 psig

Option Codes

Many range/option combinations are available in our quick-ship and fast-track manufacture programs. Please see TMsensor-ship for updated listings.

Option	Description
Temperature compensation	Multiple ranges available from -65°F to 400°F
Internal amplifiers	Unamp., mV/V output
Pressure ports	3/8-24 UNF or 7/16-20 UNF (BP358)
Electrical termination	Various options including twisted leads, microtec connectors, and special cable types
Special calibration	10-point or 20-point calibration available
Wetted diaphragm	Iconel X-750 option available
Shock and vibration	Shock and vibration resistance option available
