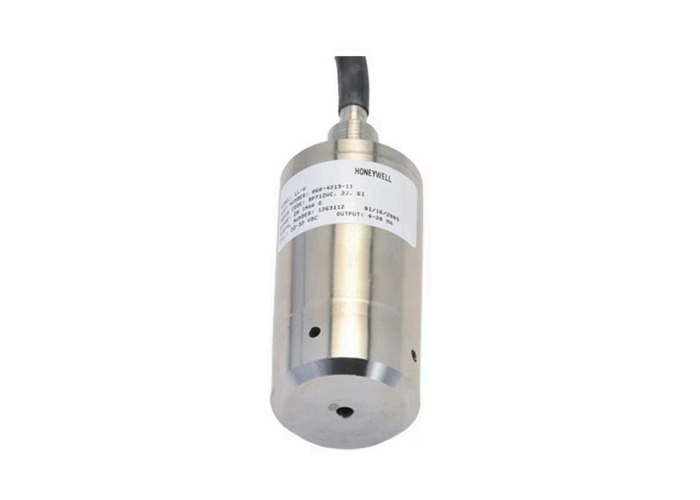

Name: Honeywell Model LL-V Vertical Entry Liquid Level Sensor with 17-4 PH Stainless Steel Construction and 0.1% Accuracy True Gage Design
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model LL-V
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell Model LL-V Vertical Entry Liquid Level Sensor with 17-4 PH Stainless Steel Construction and 0.1% Accuracy True Gage Design

17-4 PH Stainless Steel Liquid Level Sensor

0.1% Accuracy Water Level Sensor

True Gage Design Submersible Level Sensor

Brand Name:

Honeywell

Model Number:

Model LL-V

Request A Quote

Product Details

Highlight:

17-4 PH Stainless Steel Liquid Level Sensor

0.1% Accuracy Water Level Sensor

True Gage Design Submersible Level Sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

86--17719566736

Contact Now

Product Description

Honeywell Model LL-V Vertical Entry Liquid Level Sensor

Product Overview

The Model LL-V Liquid Level Sensor is constructed from 17-4 PH Stainless Steel and designed for vertical entry into tanks or stilling wells for complete submersion in fluid. Its all-welded stainless steel housing and pressure sensing diaphragm provide corrosion resistance for most fluids.

Key Features

True gage design
Conduit connection (1/2-14 NPT threaded)
Submersible construction
All-welded stainless steel housing
0.1% accuracy
Atmospheric vent tube in cable jacket
Vulcanized electrical cable with stainless steel ferrule

Industry Applications

Energy
Life Sciences
Utilities

Performance Specifications

Characteristic	Measure
Pressure ranges	0 mm to 12700 mm [0 in to 500 in] of water column 1, 2, 5, 10, 15, 25, 50 psig
Accuracy	±0.1% full scale (static error band)
Output	0 Vdc to 5 Vdc or 4 mA to 20 mA
Resolution	Infinite

Environmental Specifications

Characteristic	Measure
Temperature, operating	-18°C to 82°C [0°F to 180°F]
Temperature, compensated	16°C to 71°C [60°F to 160°F]
Temperature effect, zero	±0.0025% full scale/°F
Temperature effect, span	±0.0025% reading/°F

Mechanical Specifications

Characteristic	Measure
Media	Liquids compatible with stainless steel
Overload, safe	150%
Overload, burst	400%
Pressure port	Screened flush diaphragm
Wetted parts material	Stainless steel
Weight	0.40 kg [14 oz]
Case material	All welded stainless steel

Range Codes

Range Code	Available Ranges
WC	20 in H2O
WE	30 in H2O
WG	50 in H2O
WI	100 in H2O
WK	120 in H2O
WM	150 in H2O
WP	200 in H2O
WR	300 in H2O
WS	500 in H2O
AP	1 psig
AR	2 psig
AT	5 psig
AV	10 psig
BJ	15 psig
BL	25 psig
BN	50 psig

Internal Amplifiers

Amplifier specifications	Voltage output: Option 2c	Current three-wire: Option 2j	Current two-wire: Option 2k
Output signal	0 Vdc to 5 Vdc @ 45 mA	4 mA to 20 mA	4 mA to 20 mA
Input power (voltage)	11 Vdc to 28 Vdc	22 Vdc to 32 Vdc	9 Vdc to 28 Vdc
Frequency response	3000 Hz	2500 Hz	2500 Hz
Operating temperature	-18°C to 82°C [0°F to 180°F]	-18°C to 82°C [0°F to 180°F]	-18°C to 85°C [0°F to 185°F]
