Name: Honeywell FF5 Series Non-Contact Safety Switch with 6 mm Sensing Distance 300 mA@ 24 Vdc and IP67 Rating
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FF5 Series
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell FF5 Series Non-Contact Safety Switch with 6 mm Sensing Distance 300 mA@ 24 Vdc and IP67 Rating

6 mm Sensing Distance Safety Limit Switch

300 mA@ 24 Vdc Non-Contact Safety Switch

IP67 Magnetically Operated Switch

Brand Name:

Honeywell

Model Number:

FF5 Series

Request A Quote

Product Details

Sensing Distance** (aux. Contact):

7 Mm [0.28 In] OFF/17 Mm [0.67 In] ON

Contact Arrangements (when Actuator Present):

2NC/1NO

Contact Rating* (safety Contact):

300 MA/24 Vdc

Sensing Distance** (safety Contact):

7 Mm [0.28 In] ON/17 Mm [0.67 In] OFF

Contact Rating* (aux. Contact):

300 MA/24 Vdc

Highlight:

6 mm Sensing Distance Safety Limit Switch

300 mA@ 24 Vdc Non-Contact Safety Switch

IP67 Magnetically Operated Switch

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Get Best Price

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Get Best Price

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Get Best Price

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Get Best Price

86--17719566736

Contact Now

Product Description

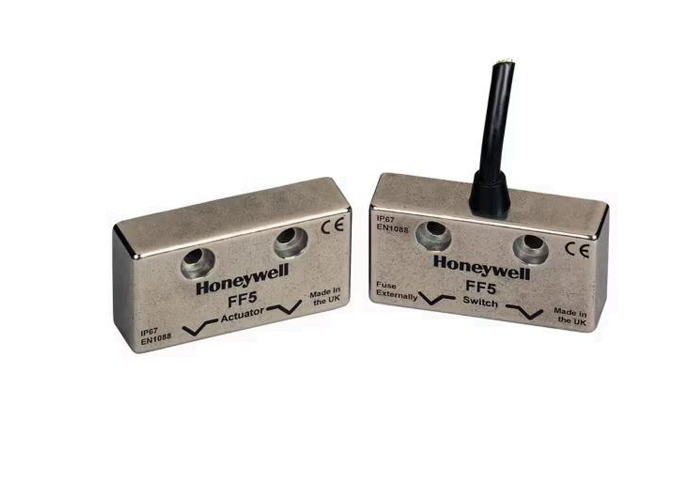

Honeywell FF5 Series Safety Switches

Honeywell FF5 switches are magnetically operated, non-contact safety switches designed for machine-guarding applications. Available in both ABS and 316 grade stainless steel housings, these switches can handle up to 300 mA at 24 Vdc. The fully sealed design makes them suitable for wet or dusty environments. When properly installed, FF5 safety switches comply with EN1088 guidelines.

Key Customer Benefits

Non-contact sensing minimizes installation and setup requirements
Pre-wired cable with color-coded lead wires simplifies electrical connections
Flexible installation options with head-on, slide-by, or rotation/hinge actuator approaches

Competitive Advantages

Non-contact sensing eliminates need for mechanical linkage
Dual safety contacts for inputs to safety relay
Auxiliary contact activates when actuator moves out of operating range

Product Features

Non-contact design requires no operating force
ABS plastic or 316 stainless steel housing options
Pre-wired cable lengths: 3 m (9.8 ft) or 10 m (32.8 ft)
Compact dimensions: 52 × 28 × 14 mm (2.0 × 1.1 × 0.55 in)
IP67 environmental sealing
CE, UKCA and UL 508 certifications

Typical Applications

Equipment and machinery guards
Can forming and filling (aluminum, plastic, steel)
Packaging, pick-and-place, and plastic molding equipment
Printing, semiconductor, textile, and woodworking machinery

Technical Specifications

Characteristic	Parameter
Contact arrangements (when actuator present)	2NC/1NO
Contact rating* (safety contact)	300 mA/24 Vdc
Sensing distance** (safety contact)	7 mm [0.28 in] ON/17 mm [0.67 in] OFF
Contact rating* (aux. contact)	300 mA/24 Vdc
Sensing distance** (aux. contact)	7 mm [0.28 in] OFF/17 mm [0.67 in] ON
External fuse (customer supplied)	0.2 A fast acting
Operating temperature	-25°C to 55°C [-13°F to 131°F]
Vibration/shock	10 g, 50 Hz to 100 Hz
Environmental sealing	IP67
Housing material	FF5: ABS plastic FF5-SS: 316 stainless steel
Agency certifications	cULus/UL 508: File E37138, Industrial control CE: DOC A347 UKCA Reference standards: EN60947-5-1, EN60947-5-3, EN61000-6-2, EN61000-6-4, EN60204-1, EN62061, EN ISO 13849-1, EN ISO 13850
Termination	Pre-wired six-conductor color-coded cable Ø 4.55 mm [0.18 in], 3 m or 10 m length

* Designed for interfacing to safety relays with low inrush current

** Measured from front surface of switch to front surface of actuator

Available Models

Part Number	Description
FF2-10-DC-03	SAFETY LIMIT SWITCH
FF2-11-AC-03	SAFETY LIMIT SWITCH
FF2-11-DC-03	SAFETY LIMIT SWITCH
FF3-21-AC-03	SAFETY LIMIT SWITCH
FF3-21-DC-03	SAFETY LIMIT SWITCH
FF5-21-DC-03	SAFETY LIMIT SWITCH
FF5-21-DC-03-SS	Non contact safety switch
FF5-21-DC-10	Honeywell FF Series Safety Switch and Actuator, red ABS, 2NC1NO, dc, 10 m pre-wired
FF5-21-DC-10-SS	Honeywell FF Series Safety Switch and Actuator, stainless steel ABS, 2NC1NO, dc, 10 m pre-wired
