Name: Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with Silver Contacts and NEMA 1, 3, 4, 13 Compliance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Honeywell
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell CLSX Series Explosion-proof Cable Pull Safety Limit Switch with Silver Contacts and NEMA 1, 3, 4, 13 Compliance

200 ft Cable Length Explosion-proof Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

Brand Name:

CLSX Series

Model Number:

Honeywell

Request A Quote

Product Details

Highlight:

200 ft Cable Length Explosion-proof Switch

UL Listed Cable Pull Safety Limit Switch

CSA Certified Emergency Stop Switch

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

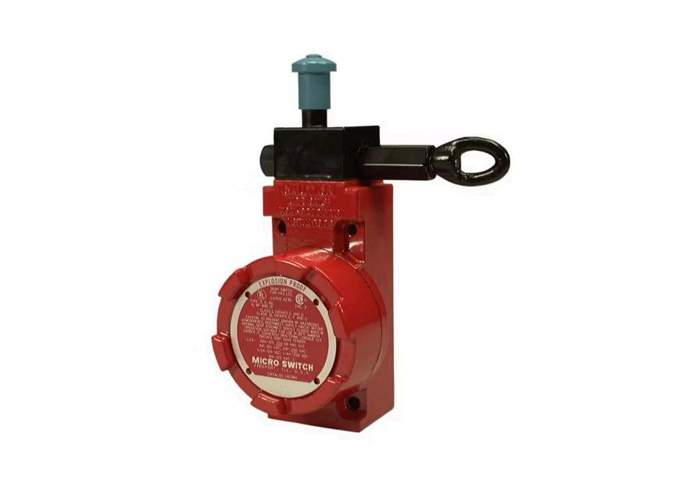

Honeywell CLSX Series Single Head Cable Pull

The CLSX Series Cable Pull Safety Limit Switch is designed to provide emergency stop protection for conveyor lines in hazardous atmospheres. The CLSX Series withstands the pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover housing threads and an extended plunger between the switch cavity and head.

General Information

Explosion-proof switches are designed specifically for use in hazardous location applications. Flame paths within the switch housing cool exploding gases below kindling temperature of the atmosphere.
Complies with NEMA standards: 1, 3, 4, 7, 9, 13. UL listed and CSA certified: Class I, Div 1, Groups B, C, D; Class II, Div 1, Groups E, F, G.
A pull on the actuating cable will cause all switch contacts to change state: NC (normally closed) to open and NO (normally open) to close. When cable is released, switch contacts return to their original state.
Available basic switch options:
- Direct acting switch contact: 1 NC
- Direct acting switch contacts: 1 NO 1 NC
- Snap action switch contacts: 1 NO 1 NC (NC circuit does not meet requirements for positive break and is not electrically isolated from the NO circuit)
Head may be positioned in any of four directions

Momentary Switch

Auxiliary Contacts

Used for monitoring or signaling, i.e., indicators, pilot lights and alarms

Maximum Actuating Cable Length

Depending upon variations in ambient temperature, maximum cable length is 200 ft. (60 m)

Other Available Features

Conduit opening options
Hardware kits and cables for various length installations

Product Specifications

Part Number	Description
CLSXB4B	Limit Switch
CLSXB4T	Micro Switch CLSX Series Explosion-proof Cable Pull Safety Switch, 1NC1NO Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
CLSXB8T	Micro Switch CLSX Series Explosion-proof Cable Pull Safety Switch, 2NC Direct Opening, Slow Action, Explosion-proof, 12 NPT, Silver Contacts
