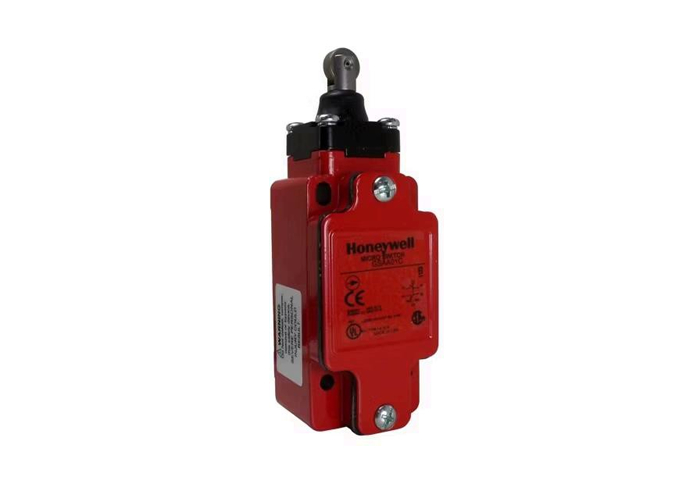

Name: Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSS Series
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

EN50041 and EN50047 Mounting Safety Switch

Up to Four Contacts Electromechanical Safety Switch

SIL3 Capable GSS Series Switch

Brand Name:

Honeywell

Model Number:

GSS Series

Request A Quote

Product Details

Rated Operational Current (Ie):

3 A, 1.2 A, 0.27 A

Contact Design:

Double Break, Electrically Separated

Contact Material:

Silver Alloy (standard), Gold-plated (low Energy Applications)

Utilization Category:

AC-15, A300/A6003; DC-13, Q300

Rated Operational Voltage (Ue):

240 Vac, 600 Vac, 250 Vdc

Highlight:

EN50041 and EN50047 Mounting Safety Switch

Up to Four Contacts Electromechanical Safety Switch

SIL3 Capable GSS Series Switch

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

Honeywell GSS Series EN50041 and EN50047 Mounting Safety Switches

Honeywell's GSS Series electromechanical safety switches are comprised of different groups of safety switches designed to EN50041 or EN50047 standards. GSS Series switches are agency certified for global applications and feature positive opening normally closed contacts.

The red body color of the switch easily identifies it for safety applications. Although designed for safety applications, these switches can also be applied in non-safety applications.

Value to Customers

Operating heads can be rotated in 90° increments for installation flexibility
All NC contacts (normally closed contacts) are positive opening when actuated
Removable contact block for ease of wiring

Features

Epoxy coated metal zinc housing (GSA Series, GSC Series, or GSE Series)
Glass-reinforced thermoplastic housing (GSD Series)
Red body color for easy safety recognition
Mounting to EN50041 (GSA Series), or EN50047 (GSC Series, GSD Series, and GSE Series)
Choice of head/actuator types: pin plunger, roller plunger, side rotary standard lever, side rotary offset lever, top roller lever, or hinge lever
Wide selection of NC (normally closed) and NO (normally open) contact options
Different threaded conduit options for global applications

Product Description

Honeywell's MICRO SWITCH™ GSS Series electromechanical safety switches are comprised of different groups of safety switches designed to either EN50041 or EN50047 standards. GSS Series safety switches are agency certified for global applications, and feature positive opening normally closed contacts.

The GSA Series metal limit switches are designed to the EN50041 standard with the 30 mm x 60 mm mounting pattern. Available with up to four contacts and a variety of actuator heads, the GSA Series limit switches are suitable for a wide variety of applications.

The GSC Series and GSE Series metal safety switches are designed with an integral hinge lever. The body of the switch is designed to the EN50047 standard with 20 mm to 22 mm mounting. For applications requiring a similar safety switch to the EN50047 standard with a high-strength thermoplastic housing and the integral hinge lever, the GSD Series safety switch can fill this requirement.

Additional Value Features

Environmentally sealed for indoor or outdoor applications
CE, CSA, and UL agency certifications
Designed and agency evaluated for safety functions up to and including a SIL3 level (GSA and GSD Hinge Lever)

Potential Applications

Gates, guards, or doors for:
- Agricultural and construction equipment
- Die cast machinery
- Elevators and moving stairs
- Machine tools
- Material handling
- Packaging machinery
- Plastic molding machinery
- Scissor/platform lifts
- Special purpose machinery

Key Differentiators

Up to four electrically independent contacts for control and monitoring as required
Gold contacts available for low energy applications
Side rotary actuator incorporates dual bearing design for increased life
Specialty contact option, sequential action (GSA Series)
Catalog listings designed and evaluated up to and including a safety integrity level 3 (SIL3) per IEC 61508-2:2010 (GSA Series and GSD Hinge Lever Series)

Technical Specifications

Characteristic	Parameter
Description	GSA Safety Switch Series: EN50041 mounting (30 mm x 60 mm) GSC/GSD/GSE Safety Switch Series: EN50047 mounting (20 mm to 22 mm)
Certifications	CE; DOC # 231, EN/IEC 60947-5-1 CSA; File 57323, CSA C22.2 No. 14 UL; File E37138, UL508
Housing material	GSA/GSC/GSE Series; electrostatic epoxy coated die-cast zinc GSD Series; high strength glass-filled thermoplastic
Actuator heads	GSA Series: Side rotary, top pin plunger, top roller plunger, top roller lever GSC/GSD/GSE Series: hinge lever positioned at left, top, or right position
Conduit/electrical connection¹	0.5-14 NPT; 20 mm; PG 13,5; G1/2 (PF1/2)
Contact/switch options²	GLA & GLE Series; 1NC/1NO, 2NC, 2NC/2NO, 3NC/1NO, 4NC GLC & GLD Series; 1NC/1NO, 2NC
Contact type	Snap action, snap action sequential (2 step), slow action break-before-make (BBM), slow action make-before-break (MBB), slow action
Contact design	Double break, electrically separated
Contact material	Silver alloy (standard), gold-plated (low energy applications)
Utilization category	AC-15, A300/A600³; DC-13, Q300
Rated operational voltage (Ue)	240 Vac, 600 Vac, 250 Vdc
Rated operational current (Ie)	3 A, 1.2 A, 0.27 A
Thermal current (Ith)	10 A
Rated insulation voltage (Ui)	300 V, 600 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protective device (SCPD)	Class J fuse (10 A/600 V)
Pollution degree	3
Environmental sealing	GSA Series (metal body): IP67, NEMA 1, 4, 12, and 13 GSC & GSE Series (metal body): IP66, NEMA 1, 4, 12, and 13 GSD Series (plastic body): IP66/67, NEMA 1, 4X (indoor), 12, and 13
Operating temperature	GSA Series with side rotary actuator head: -40 °C to 85 °C [-40 °F to 185 °F] GSA Series without side rotary actuator head: -25 °C to 85 °C [-13 °F to 185°F] GSC/GSD/GSE Series: -25 °C to 85 °C [-13 °F to 185°F]
Shock	50 G per IEC 60068-2-27
Vibration	10 G per IEC 60068-2-6
MCTF (Mechanical life)	GSA Series: >1,000,000 cycles with single-sided confidence limit of 100% GSD Series (hinge lever actuator): >1,000,000 cycles
MCTF (Electrical life)	GSA Series: >25,000 cycles with single-sided confidence limit of 100% GSD Series (hinge lever actuator): >25,000 cycles with single-sided confidence limit of 100%
SIL capability	GSA & GSD Series (hinge lever actuator); IEC 61508-2:2010; SIL2 capable with HFT=0; SIL3 capable with HFT=1
Proof test interval	1 year

¹GSE Series has three (3) threaded conduits.
²All normally closed (NC) contacts are positive opening.
³A600 for GSA Series only. GSA Series with 2NC contacts (06 or 36 switch code) limited to A300.
* Hardware Fault Tolerance (HFT)
