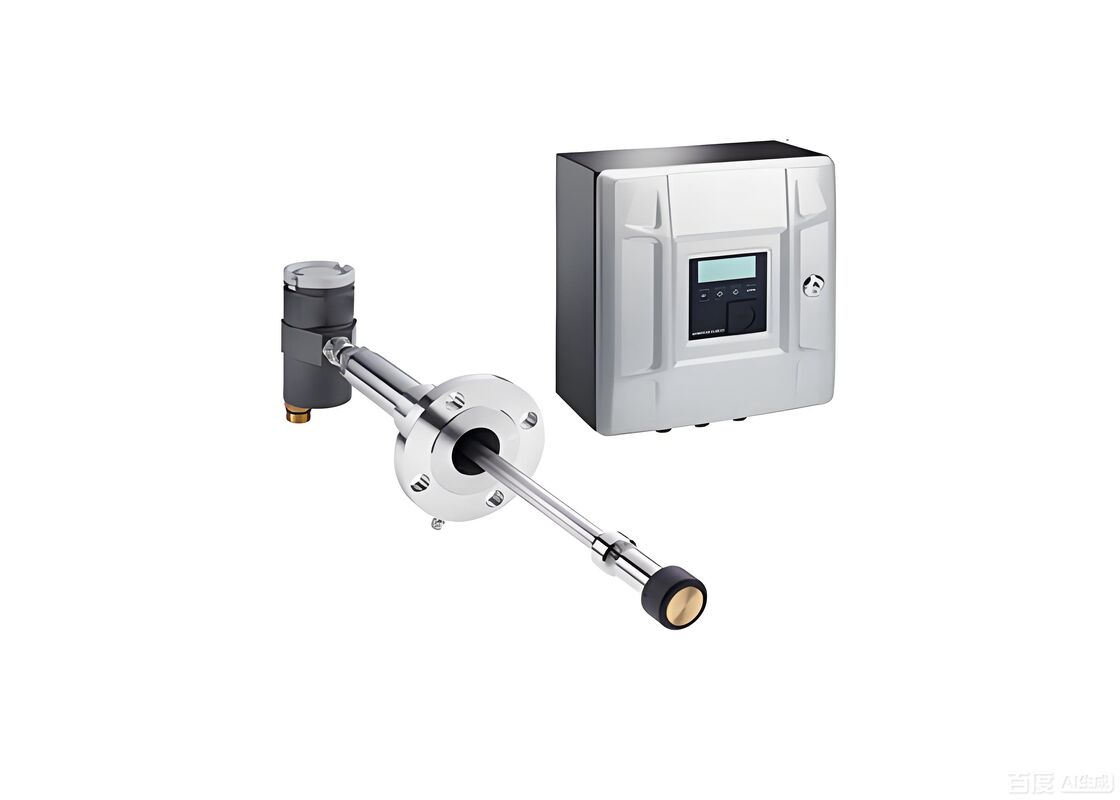

Name: FLOWSIC100 Flare-XT ultrasonic flow measurement instrument
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLOWSIC100
Price: 892.00 USD
Availability: InStock

Home > Products > Ultrasonic Flow Meter >

FLOWSIC100 Flare-XT ultrasonic flow measurement instrument

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

FLOWSIC100

Request A Quote

Product Details

Measuring Principle:

Ultrasonic Transit Time Difference Measurement

Measured Variables:

Mass Flow Rate, Volumetric Flow S. C. (standard Condition), Volumetric Flow A. C. (actual Condition), Molecular Weight, Gas Volume And Mass, Gas Velocity, Sound Velocity

Measuring Range:

0,03 M/s ... 120 M/s (0.1 Ft/s ... 394 Ft/s)

Nominal Pipe Size:

1-path Measurement 4 ″ ... 86 ″

Digital Communication:

HART

Highlight:

FLOWSIC100 ultrasonic flow meter

Flare-XT flow measurement instrument

ultrasonic flow meter with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Prosonic Flow E 100 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 300 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 500 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow I 400 ultrasonic flowmeter

Get Best Price

Contact Now

Product Description

FLOWSIC100 Flare-XT Ultrasonic Flow Measurement Instrument

Advanced ultrasonic flow measurement instrument designed for demanding industrial applications including flare gas measurement, steam flow monitoring, and process optimization.

Key Specifications

Measured Variables	Mass flow rate, volumetric flow (standard condition), volumetric flow (actual condition), molecular weight, gas volume and mass, gas velocity, sound velocity
Measuring Range	0.03 m/s ... 120 m/s (0.1 ft/s ... 394 ft/s)
Conformities	ATEX: 2014/34/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU, PED: 2014/68/EU

Applications

Detection of flare gas leaks and steam flow measurement
Monitoring of gas losses and steam injection in flare gas burning
Process optimization and predictive maintenance
Flare gas measurement for natural gas production and processing
Flare gas measurement in chemical and petrochemical plants
Measurement of LNG boil-off gas

Device Features

Reliable measurement at high gas velocities and changing gas compositions
Direct mass flow calculation without additional gas analyzers
Intuitive FLOWgate™ software for commissioning, operation and diagnostics
Self-monitoring, self-testing and predictive maintenance capabilities

Key Benefits

Compliance with multiple standards and guidelines for flare gas measurement
Maximum plant availability and operational reliability
Compatibility with current and future communication architectures
Independent maintenance with verification on demand
Easy replacement of existing measurement systems with retrofit solutions

Technical Details

Measuring Principle	Ultrasonic transit time difference measurement
Max. Measurement Error	Volumetric flow, a.c.: 1% ... 5% (≥ 0.3 m/s) Mass flow rate a.c.: 2% ... 5.5% (≥ 0.3 m/s) With spool piece and flow calibration: 0.5% ... 2%
Medium Temperature Range	-196 °C ... +280 °C (-320 °F ... +536 °F)
Operating Pressure Range	Up to 20 bar(g) depending on device flange and certification
Nominal Pipe Size	1-path: 4″ ... 86″, 2-path: 12″ ... 86″

Hazardous Area Approvals

Comprehensive certifications for Interface Unit and Sensors including IECEx, ATEX, and NEC/CEC approvals for Zone 1, Zone 2, and Division 1/2 applications with various gas groups and temperature classes.

Outputs & Communication

Analog Outputs	Up to 6 outputs (16-bit, 4-20 mA), galvanically isolated, NAMUR NE43 compliant
Digital Outputs	Switching outputs (70 mA max) and frequency outputs (10 kHz max)
Digital Communication	HART, MODBUS, FOUNDATION FIELDBUS
