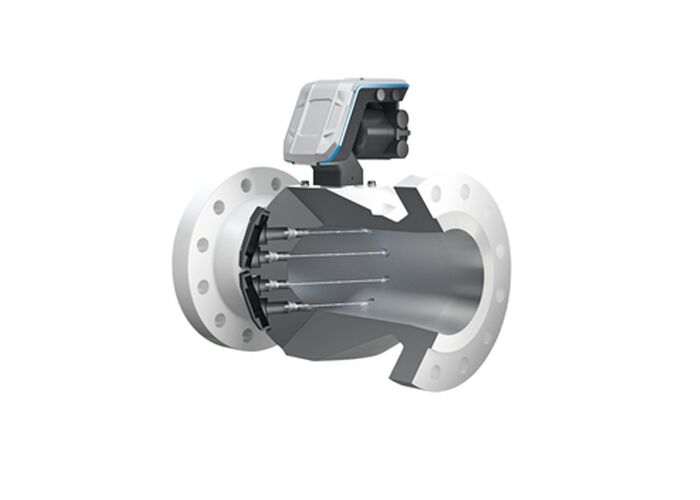

Name: FLOWSIC600-XT Ultrasonic Flowmeter with OIML R 137 Compliance for 30% Hydrogen Measurement and PowerIn Backup
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLOWSIC600-XT
Price: 892.00 USD
Availability: InStock

Home > Products > Ultrasonic Flow Meter >

FLOWSIC600-XT Ultrasonic Flowmeter with OIML R 137 Compliance for 30% Hydrogen Measurement and PowerIn Backup

FLOWSIC600-XT ultrasonic flow meter

industrial ultrasonic flowmeter

high-precision ultrasonic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Model Number:

FLOWSIC600-XT

Request A Quote

Product Details

Measuring Principle:

Ultrasonic Transit Time Difference Measurement

Measured Variables:

Volumetric Flow A. C., Volume A. C., Gas Velocity, Speed Of Sound, Optional Volume Correction Via Integrated, Electronic Volume Corrector (EVC)

Measuring Medium:

Natural Gas (with Up To 30% Hydrogen), Air, Natural Gases Containing Increased Levels Of CO2, N2, H2S, O2, H2

Repeatability:

≤ 0.05 % Of The Measured Value (typical)

Medium Temperature Range:

–46 °C ... +180 °C / -51 °F ... +356 °F

Operating Pressure Range:

0 Bar (g) ... 450 Bar (g) 0 Psi (g) ... 6527 Psi (g)

Highlight:

FLOWSIC600-XT ultrasonic flow meter

industrial ultrasonic flowmeter

high-precision ultrasonic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

FLOWSIC600-XT Ultrasonic Flowmeter with OIML R 137 Compliance for 30% Hydrogen Measurement and PowerIn Backup

Get Best Price

Eight-Beam Underwater Obstacle Avoidance Sensor with Blind Zone < 200 mm and Detection Range 200~3000 mm

Get Best Price

Video

Split Type Liquid Velocity Ultrasonic Doppler Flow Meter for River and Open Channel Water

Get Best Price

Video

RS485 Modbus Protocol Open Channel Ultrasonic Flow Gauge For Water Depth Measurement

Get Best Price

Contact Now

Product Description

FLOWSIC600-XT Ultrasonic Flowmeter

Product Overview

The FLOWSIC600-XT is a high-precision ultrasonic flowmeter designed for demanding industrial applications, featuring advanced diagnostic capabilities and exceptional measurement accuracy.

Key Specifications

Measured Variables	Volumetric flow a.c., volume a.c., gas velocity, speed of sound, optional volume correction via integrated electronic volume corrector (EVC)
Measuring Medium	Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO₂, N₂, H₂S, O₂, H₂
Nominal Pipe Size	3″ ... 56″ (DN 80 ... DN 1400), other nominal pipe sizes on request
Repeatability	≤ 0.05% of the measured value (typical)
Accuracy	4-path and 8-path version ≤ ±0.5% \| (≤ ±1%) Dry-calibrated 4-path and 8-path version ≤ ±0.2% \| (≤ ±0.5%) After flow calibration and alignment using constant factor 4-path and 8-path version ≤ ±0.1% \| (≤ ±0.2%) After flow calibration and alignment using polynomial or piecewise correction
Medium Temperature Range	-46°C ... +180°C / -51°F ... +356°F (On request: -194°C ... +280°C / -381°F ... +536°F)
Operating Pressure Range	0 bar (g) ... 450 bar (g) / 0 psi (g) ... 6527 psi (g)

Applications

Custody transfer measurement of natural gas
Custody transfer measurement of natural gas with up to 30% H₂
Transport and storage of gas
Onshore and offshore applications

Key Features

Available in variants with 4, 4+1, 4+4, and 8 measurement paths
Meets OIML R 137 Class 1.0, Class 0.5, and AGA9 requirements
i-diagnostics™ intelligent application diagnostics function
PowerIn Technology™ for continuous operation up to three weeks during mains voltage failure
Automatic adjustment of pressure and temperature influences
Available for all operating conditions

Benefits

Low measurement uncertainty in every application
Excellent measurement data reliability and availability
Right ultrasonic gas flow measuring device for every application
Simple device integration - even in compact systems
Quick and easy commissioning and checks
Economical quantification of the H₂ content in natural gas

Measuring Principle

Ultrasonic transit time difference measurement

Approvals & Certificates

OIML R 137-1&2:2012 (class 0.5)
OIML D 11:2013
ISO 17089-1
AGA-Report Nr. 9
MID: 2014/32/EU
PED: 2014/68/EU
ASME: B16.5, B16.47 A/B
ATEX: 2014/34/EU
EMC: 2014/30/EU
GOST 8.611-2013
GOST 8.733-2011
CPA: JJG1030-2007
PCEC: GB 3836.1-2010, GB 3836.2-2010, GB 3836.4-2010, GB/T 3836.22-2017

Hazardous Area Approvals

IECEx: Ex db ia op is [ia Ga] IIA/IIC T4 Gb, Ex db eb ia op is [ia Ga] IIA/IIC T4 Gb, Ex ia op is IIA/IIC T4 Ga

ATEX: II 2 (1) G Ex db ia op is [ia Ga] IIA/IIC T4 Gb, II 2 (1) G Ex db eb ia op is [ia Ga] IIA/IIC T4 Gb, II 1G Ex ia op is IIA/IIC T4 Ga

NEC/CEC (US/CA): Various explosion-proof and intrinsically safe certifications for Class I, Division 1 and Zone 0/1 applications

Digital Interfaces

Digital Outputs: 4 outputs (2 x status, 2 x pulse): ≤ 30 V, 50 mA, passive, electrically isolated, open collector or conforming to NAMUR (DIN EN 60947-5-6), fmax = 10 kHz (scalable)

Digital Communication: Modbus TCP
