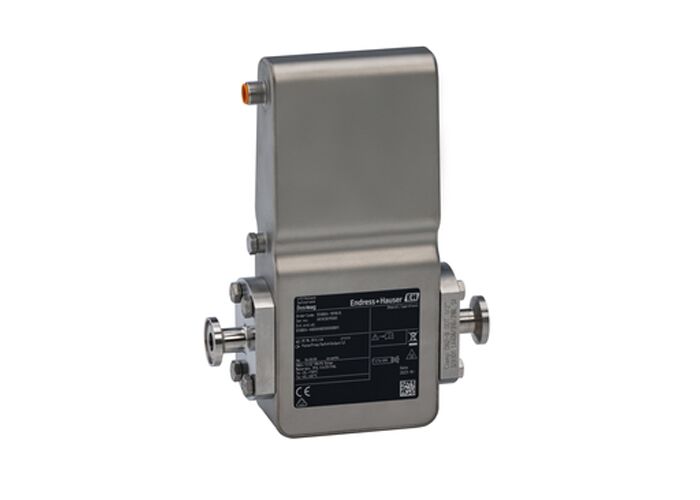

Dosimag Electromagnetic Flowmeter with Hygienic Design, High Repeatability, and Ultra-Compact Sensor for Filling Applications

Dosimag electromagnetic flow meter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Request A Quote

Dosimag Electromagnetic Flowmeter with Hygienic Design, High Repeatability, and Ultra-Compact Sensor for Filling Applications

Product Details

Max. Measurement Error:

±0.25 % O.r. ± 1 To 4 M/s (3.3 To 13 Ft/s)

Measuring Range:

0.14 To 1.66 L/s (0.035 To 0.44 Gal/s)

Medium Temperature Range:

Seal Material EPDM: –20 To +130 °C (–4 To +266 °F)Seal Material Silicone: –20 To +130 °C (–4 To +266 °F)Seal Material Viton: 0 To +150 °C (+32 To +302 °F)

Max. Process Pressure:

PN 16

Wetted MaterialsLiner::

PFAElectrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,Platinum

Transmitter Housing Material:

1.4404 (316/316L)

Highlight:

Dosimag electromagnetic flow meter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

Dosimag Electromagnetic Flowmeter

Product Overview

Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor for demanding dosing and filling applications.

Field of Application

Dosimag is designed for demanding filling and bottling applications with conductive liquids in Food & Beverage and Life Sciences. In applications where space is limited, Dosimag is the preferred choice for system integrators, skid builders and equipment manufacturers.

Dosimag measures volume directly. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Available Electronics Versions

Pulse/frequency/status version for easy and economical use in filling applications
Intelligent pulse version with IO-Link provides continuous digital communication
Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control

Key Benefits

High and stable filling performance with high measuring accuracy and repeatability in shortest filling times
IO-Link allows real-time digital communication for easier commissioning and continuous data availability
Compact design for optimized machine footprint
Integrated batching functionality - filling process management solved by the flowmeter
Automatic recovery of data for servicing
Global compliance with industry standards - EHEDG, 3-A, FCM, cGMP
SIP and CIP cleanable

Technical Specifications

Specification	Value
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 4 to 25 (¹⁄₈ to 1)
Max. Measurement Error	±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
Measuring Range	0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
Max. Process Pressure	PN 16
Measured Variables	Volume flow, Temperature (DN15-26)

Temperature Ranges

Seal Material	Temperature Range
EPDM	-20 to +130 °C (-4 to +266 °F)
Silicone	-20 to +130 °C (-4 to +266 °F)
Viton	0 to +150 °C (+32 to +302 °F)
Ambient Temperature	-40 to +60 °C (-40 to +140 °F)

Materials & Construction

Wetted Materials

Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum, Platinum

Housing Materials

Sensor Housing: 1.4404 (316/316L)
Transmitter Housing: 1.4404 (316/316L)

Electrical & Communication

Parameter	Specification
Power Supply	DC 20 to 30 V
Outputs	Pulse/frequency/switch output (passive)
Inputs	None
Digital Communication	Modbus RS485, IO-Link
Display/Operation	No local operation (configuration via operating tools possible)
Degree of Protection	IP66/67, type 4X enclosure

Certifications & Approvals

Hazardous Area: ATEX, UL, UK Ex
Product Safety: CE
Metrological: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NTEP
Material: 3.1 material certificates
Hygienic: 3-A, EHEDG, seals acc. to FDA
