Name: Proline Promag D 10 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag D 10
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag D 10 electromagnetic flowmeter

Proline Promag D 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Model Number:

Proline Promag D 10

Request A Quote

Product Details

Nominal Diameter Range:

DN 25 To 100 (1 To 4)

Measured Variables:

Volume Flow, Mass Flow

Max. Measurement Error:

Volume Flow (standard): ±0.5 % O.r. ± 1 Mm/s (0.04 In/s)

Measuring Range:

9 Dm³/min To 282 M³/h (2.5 Gal/min To 1250 Gal/min)

Max. Process Pressure:

PN 16, Class 150, 10K

Highlight:

Proline Promag D 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

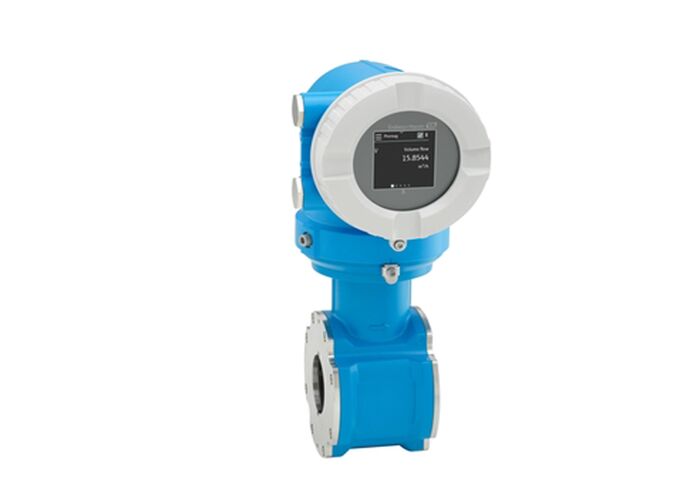

Proline Promag D 10 Electromagnetic Flowmeter

Highly cost-effective wafer flowmeter with easy-to-use operation concept. For basic water applications, optimized for limited space and plastic pipe installations.

Field of Application

The wafer flowmeter Promag D is designed for all basic water applications where space is at a minimum. With its straightforward hard- and software design, Promag D 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and compliant verification.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

Easy, fast centering of the sensor - innovative housing construction
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Optimum usability - operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning - guided parameterization in advance and in the field
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 25 to 100 (1 to 4)
Measured Variables	Volume flow, mass flow
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Measuring Range	9 dm³/min to 282 m³/h (2.5 gal/min to 1250 gal/min)
Max. Process Pressure	PN 16, Class 150, 10K
Medium Temperature Range	Liner material polyamide: 0 to +60°C (+32 to +140°F)
Ambient Temperature Range	-40 to 60°C (-40 to 140°F)
Wetted Materials	Liner material polyamide: 0 to +60°C (+32 to +140°F) Electrodes: 1.4435 (316L)
Sensor Housing Material	DN 25 to 100 (1 to 12): AlSi10Mg, coated
Transmitter Housing Material	Polycarbonat; AlSi10Mg, coated
Degree of Protection	Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure
Display/Operation	LCD display with touch & auto rotate
Outputs	4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA
Digital Communication	HART, MODBUS RS485
Power Supply	DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area Approvals: CSA, GP
Metrological Approvals: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology: Complies with requirements for measurement traceability according to ISO 9001:2015
Hygienic Approvals: International drinking water approvals

Device Features

Sensor Features

Easy, fast centering of the sensor - innovative housing construction
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Short face-to-face length and low weight
Integrated ground disks made of stainless steel
International drinking water approvals

Transmitter Features

Optimum usability - display with touch screen or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning - guided parameterization in advance and in the field
Integrated verification - Heartbeat Technology
2-line display with push buttons
Device as compact or remote version
HART communication support
