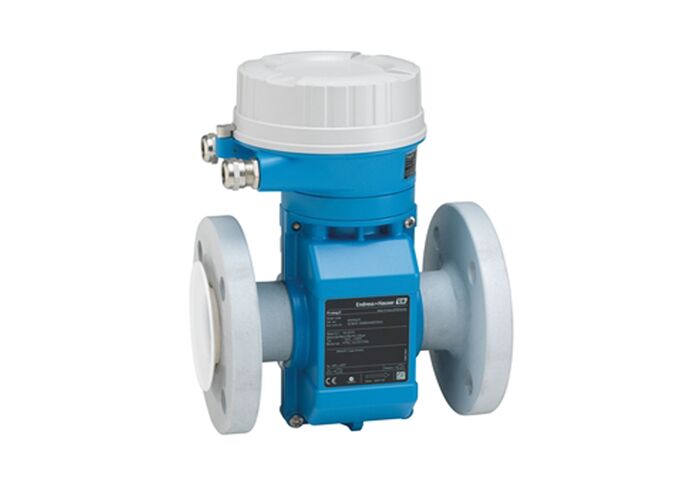

Name: Proline Promag E 100 Electromagnetic Flowmeter with Ultra-Compact Transmitter Heartbeat Technology and IP67 Protection
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag E 100
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag E 100 Electromagnetic Flowmeter with Ultra-Compact Transmitter Heartbeat Technology and IP67 Protection

Proline Promag E 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag E 100

Request A Quote

Product Details

Measuring Range:

4 Dm³/min To 9600 M³/h (1 To 44 000 Gal/min)

Max. Process Pressure:

PN 40, Class 150, 20K

Transmitter Housing Material:

AlSi10Mg, Coated

Degree Of Protection:

IP67, Type 4X Enclosure

Highlight:

Proline Promag E 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline t-mass F 500 Thermal Mass Flowmeter with DN 15 to DN 100, HART and Modbus RS485, and Patented Drift-Free Sensor

Get Best Price

Proline Promag W 300 High Accuracy ±0.5% Electromagnetic Flowmeter with IP68 Protection for Hazardous Areas

Get Best Price

Proline Promag P 300 Electromagnetic Flowmeter for Corrosion Resistant and High Temperature Process Applications with Compact Transmitter

Get Best Price

Proline Promass A 200 Coriolis Flowmeter with 0 to 450 kg/h Measuring Range for Industrial Use

Get Best Price

Contact Now

Product Description

Proline Promag E 100 Electromagnetic Flowmeter

Product Overview

The economical flowmeter with an ultra-compact transmitter. Fully suitable for basic applications in the chemical and process industry.

Field of Application

The proven sensor for economical measurement of conductive liquids, Promag E, serves various basic applications in the chemical and process industry. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promag E 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

Key Benefits

Cost-effective - Ideal solution for basic requirements

Energy-saving - No pressure loss due to cross-section constriction

Maintenance-free - No moving parts

Space-saving - Full functionality on the smallest footprint

Time-saving - Local operation without additional software and hardware

Integrated verification - Heartbeat Technology

Technical Specifications

Specification	Details
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 15 to 600 (½ to 24")
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Volume flow (standard): ±0.5% o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2% o.r. ± 2 mm/s (0.08 in/s)
Measuring Range	4 dm³/min to 9600 m³/h (1 to 44,000 gal/min)
Max. Process Pressure	PN 40, Class 150, 20K
Medium Temperature Range	-10 to +110°C (+14 to +230°F)
Ambient Temperature Range	-10 to +60°C (+14 to +140°F)
Wetted Materials	Liner: PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Degree of Protection	IP67, type 4X enclosure
Power Supply	DC 20 to 30 V

Certifications & Approvals

Hazardous area approvals: ATEX, IECEx, cCSAus, INMETRO, EAC
Product safety: CE, C-Tick
Metrological approvals: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Pressure approvals: PED
Material certificates: 3.1 material

Communication & Outputs

Outputs: 4-20 mA HART (active), Pulse/frequency/switch output (passive)
Digital communication: HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET
Display: 4-line backlit display available (no local operation)
Configuration via web browser and operating tools possible
