Name: Proline Promag H 300 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag H 300
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag H 300 electromagnetic flowmeter

Proline Promag H 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag H 300

Request A Quote

Product Details

Ambient Temperature Range:

–40 To +60 °C (–40 To +140 °F)

Transmitter Housing Material:

AlSi10Mg, Coated; 1.4409 (CF3M) Similar To 316L; Stainless Steel For Hygenic Transmitter Design

Degree Of Protection:

IP66/67, Type 4X EnclosureIP69

Max. Process Pressure:

PN 40, Class 150, 20K

Highlight:

Proline Promag H 300 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

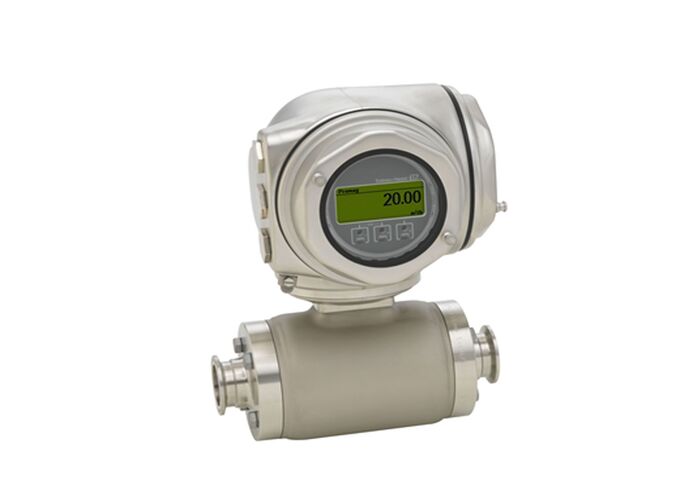

Proline Promag H 300 Electromagnetic Flowmeter

Specialist for hygienic applications with a compact, easily accessible transmitter. Dedicated to demanding applications in the food and beverage as well as life sciences industries.

Field of Application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. With its compact transmitter Promag H 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

Key Benefits

Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 2 to 150 (¹⁄₁₂ to 6)
Measuring Range	0.06 dm³/min to 600 m³/h (0.015 gal/min to 2,650 gal/min)
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Medium Temperature Range	-20 to +150 °C (-4 to +302 °F)
Max. Process Pressure	PN 40, Class 150, 20K
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)

Wetted Materials

Liner

PFA

Electrodes

1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Process Connections

Stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve

Seals

O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)

Grounding Rings

Stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Device Features

Sensor Features

Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Maintenance-free - no moving parts
Liner made of PFA
Sensor housing made of stainless steel (3-A, EHEDG)

Transmitter Features

Full access to process and diagnostic information - numerous, freely combinable I/Os and fieldbuses
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology
Wetted materials CIP, SIP cleanable
Compact hygienic dual-compartment housing with IP69 and up to 3 I/Os
Backlit display with touch control and WLAN access

Certifications & Approvals

Hazardous Area	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product Safety	CE, C-tick, EAC marking
Functional Safety	IEC 61508, applicable in safety-relevant applications per IEC 61511
Metrological	Calibration per ISO/IEC 17025; Heartbeat Technology complies with ISO 9001:2015 requirements
Marine	LR, DNV, ABS, BV approvals
Pressure	PED, CRN
Material	3.1 material certificate
Hygienic	EHEDG, 3-A, liner and seals per FDA, cGMP
