Name: Proline Promag P 10 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag P 10
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag P 10 electromagnetic flowmeter

Proline Promag P 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag P 10

Request A Quote

Product Details

Measured Variables:

Volume Flow, Conductivity, Mass Flow

Max. Process Pressure:

PN 40, Class 300, 20K

Transmitter Housing Material:

AlSi10Mg, Coated

Degree Of Protection:

Standard: IP66/67, Type 4X Enclosure

Digital Communication:

HART, MODBUS RS485

Highlight:

Proline Promag P 10 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flowmeter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

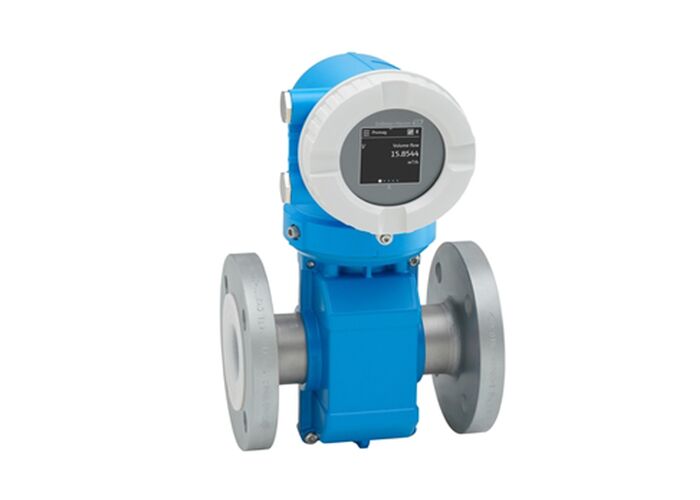

Proline Promag P 10 Electromagnetic Flowmeter

Flowmeter for basic process applications with easy-to-use operation concept, dedicated to chemical and process applications with corrosive liquids.

Key Features

Wide variety of wetted materials for diverse applications
Energy-saving flow measurement with no pressure loss
Maintenance-free operation with no moving parts
Simple operation with mobile devices and SmartBlue app
Guided parameterization for time-saving commissioning
Integrated verification with Heartbeat Technology

Technical Specifications

Nominal Diameter Range	DN 15 to 600 (½ to 24")
Measuring Range	4 dm³/min to 9600 m³/h (1 gal/min to 44,000 gal/min)
Maximum Measurement Error	Volume flow (standard): ±0.5% o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2% o.r. ± 2 mm/s (0.08 in/s)
Maximum Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Liner material PFA: -20 to 150 °C (-4 to 302 °F) Liner material PTFE: -40 to 130 °C (-40 to 266 °F)
Ambient Temperature Range	Flange material carbon steel: -10 to 60 °C (14 to 140 °F) Flange material stainless steel: -40 to 60 °C (-40 to 140 °F)

Wetted Materials

Liner Materials	PFA; PTFE
Electrode Materials	1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Device Properties

Sensor Features

Maximum nominal diameter: DN 600 (24")
All common Ex approvals
Liner made of PTFE or PFA

Transmitter Features

Operation with mobile devices and SmartBlue app or touch screen display
Guided parameterization for simple commissioning
System integration with HART, Modbus RS485

Electrical & Communication

Display/Operation	2.4" LCD display with touch & auto rotate; Configuration via Bluetooth
Outputs	4-20 mA HART (active/passive), Pulse/frequency/switch output, Modbus RS485
Digital Communication	HART, MODBUS RS485
Power Supply	DC 24 V; AC 100 to 230 V; AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

Hazardous Area: ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, IND Ex, KC, JPN, UK Ex

Metrological: Calibration performed on accredited facilities (ISO/IEC 17025), Heartbeat Technology complies with ISO 9001:2015

Pressure: PED, CRN

Material: 3.1 material certificate

Hygienic: Drinking water approvals: ACS; NSF61, WRAS

Measuring Principle

Electromagnetic flow measurement with bidirectional measuring principle that is virtually independent of pressure, density, temperature and viscosity.
