Name: Proline Promag W 800 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promag W 800
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promag W 800 electromagnetic flowmeter

Proline Promag W 800 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promag W 800

Request A Quote

Product Details

Volume Flow:

Volume Flow: ±0.5 % O.r. ± 2 Mm/s (±0.5 % O.r. ± 0.08 In/s)

Measuring Range:

9 Dm³/min To 22500 M³/h (2.5 To 100000 Gal/min)

Max. Process Pressure:

PN 40, Class 300, 20K

Transmitter Housing Material:

Polycarbonat

Outputs:

3x Pulse/switch Output (passive); Modbus RS485

Highlight:

Proline Promag W 800 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

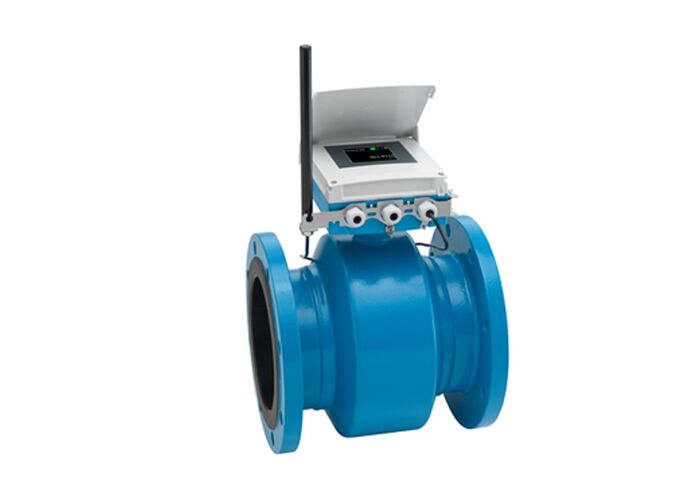

Proline Promag W 800 Electromagnetic Flowmeter

Battery-powered flowmeter with EN ISO 12944 corrosion protection & intelligent energy efficient mode. For direct underground installation or permanent underwater use. Certified sensor for the most demanding water and wastewater applications.

Field of Application

Promag W 800 is ideal for off-grid applications in the water industry, enabling reliable flow measurement in direct underground installation or underwater environments. The battery-powered transmitter provides worldwide transmission of measured data without additional energy supply. Heartbeat Technology ensures measurement reliability and compliant verification.

Key Benefits

Long-lasting battery-powered magmeter with secure system integration and communication
Corrosion protection for underground installation or permanent underwater use
Flexible engineering - sensor with fixed or lap-joint process connections
Improved plant availability - sensor compliant with industry-specific requirements
Secure data storage and transmission - worldwide encrypted communication over mobile network
Convenient commissioning and operation - device access via Bluetooth using intuitive SmartBlue app
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Electromagnetic

Nominal Diameter Range

DN 25 to 900 (1 to 36")

Measured Variables

Volume flow

Specification	Value
Max. Measurement Error	Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
Measuring Range	9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K

Temperature Ranges

Liner Material	Temperature Range
Hard Rubber	0 to +70 °C (+32 to +158 °F)
Polyurethane	-20 to +50 °C (-4 to +122 °F)
PTFE	-20 to 70°C (-4 to +158 °F)
Ambient (Carbon Steel Flange)	-10 to +60 °C (14 to +140 °F)
Ambient (Stainless Steel Flange)	-40 to +60 °C (-40 to +140 °F)

Wetted Materials

Liner: polyurethane; PTFE; hard rubber
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

Construction Materials

Sensor Housing: DN 25 to 300 (1 to 12"): AlSi10Mg, coated; DN 350 to 900 (14 to 36"): Carbon steel with protective varnish
Transmitter Housing: Polycarbonate

Features

Sensor Features

Secure, reliable long-term operation - robust and completely welded sensor
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
International drinking water approvals
Degree of protection IP68 (Type 6P enclosure)

Transmitter Features

Secure data storage and transmission - worldwide encrypted communication over mobile network
Convenient commissioning and operation - device access via Bluetooth using intuitive SmartBlue app
Integrated verification - Heartbeat Technology
Transmitter housing made of durable polycarbonate
Battery lifetime up to 15 years
Measuring intervals can be adapted individually

Technical Details

Degree of Protection

Compact version: IP66/67, type 4X enclosure and IP68, type 6P enclosure
Sensor remote version (standard): IP66/67, type 4X enclosure
Sensor remote version (option): IP68, type 6P enclosure, with protective varnish according to EN ISO 12944 C5-M/Im1/Im2/Im3

Display/Operation

4-line backlit display with touch control (operation from outside). Configuration via local display and operating tools possible; Remote data access via mail and SMS.

Communication & I/O

Type	Specification
Outputs	3x Pulse/switch output (passive); Modbus RS485
Inputs	Status input
Digital Communication	LTE Cat M1; LTE Cat NB1; LTE Cat NB2; GPRS; EGPRS

Power Supply

Internal: Batteries per DC 3.6 V
External: AC 85 to 265 V (47 to 63 Hz) / DC 19 to 30 V

Approvals & Certifications

Hazardous Area: CSA, GP Product Safety: CE Marking, EAC Marking, UKCA Marking Metrological: Calibration per ISO/IEC 17025, Custody transfer MI-001, Heartbeat Technology ISO 9001:2015 Pressure: CRN, PED Hygienic: Drinking water approval: ACS, KTW-BWGL, NSF 61, WRAS BS 6920
