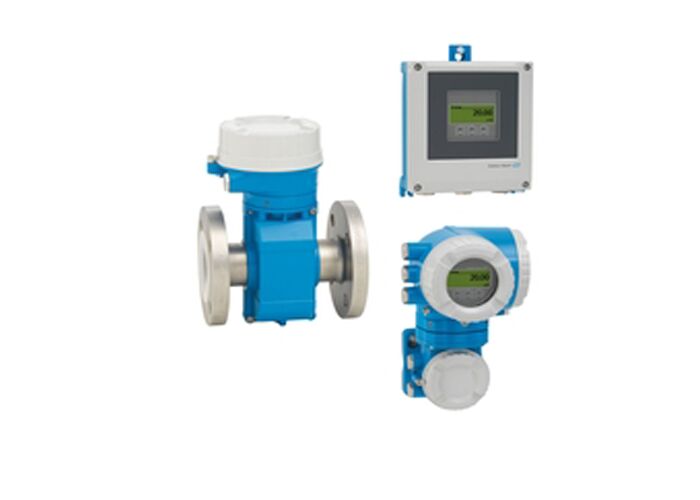

Proline Promag P 500 Electromagnetic Flowmeter
High-temperature flowmeter for process applications as remote version with up to 4 I/Os.
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.
Field of Application
Promag P is designed for chemical and process applications with corrosive liquids and highest medium temperatures.
With its innovative remote transmitter, Promag P 500 maximizes installation flexibility and operational safety
in demanding environments. Heartbeat Technology enables compliance and process safety at all times.
Measuring Principle
Electromagnetic - The bidirectional measuring principle is virtually independent of pressure,
density, temperature and viscosity.
Key Benefits
- Diverse applications with wide variety of wetted materials
- Energy-saving flow measurement with no pressure loss due to cross-section constriction
- Maintenance-free operation with no moving parts
- Full access to process and diagnostic information with numerous, freely combinable I/Os and Ethernet
- Reduced complexity and variety through freely configurable I/O functionality
- Integrated verification via Heartbeat Technology
Technical Specifications
| Nominal Diameter Range |
DN 15 to 600 (½ to 24") |
| Max. Measurement Error |
Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
|
| Measuring Range |
4 dm³/min to 9600 m³/h (1 gal/min to 44,000 gal/min) |
| Max. Process Pressure |
PN 40, Class 300, 20K |
Temperature Ranges
| Medium Temperature |
PFA liner: -20 to +150 °C (-4 to +302 °F)
PFA high-temperature liner: -20 to +180 °C (-4 to +356 °F)
PTFE liner: -40 to +130 °C (-40 to +266 °F)
|
| Ambient Temperature |
Carbon steel flange: -10 to +60 °C (+14 to +140 °F)
Stainless steel flange: -40 to +60 °C (-40 to +140 °F)
|
Wetted Materials
Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022);
Tantalum; Platinum; Titanium; Duplex 1.4462 (UNS S31803)
Device Features
Sensor Features:
- Maximum nominal diameter: DN 600 (24")
- All common Ex approvals
- Liner made of PTFE or PFA
Transmitter Features:
- Remote version with up to 4 I/Os
- Backlit display with touch control and WLAN access
- Standard cable between sensor and transmitter
Inputs & Outputs
| Outputs |
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
|
| Inputs |
Status input, 4-20 mA input |
Digital Communication
HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485,
Modbus TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL,
Ethernet/IP, OPC-UA
Approvals & Certifications
Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Marine: LR, DNV, ABS, BV approvals
Pressure: PED, CRN
Hygienic: ACS, NSF 61, WRAS
