Proline Promass H 300 Coriolis flowmeter

Product Details

Measuring Range:

0 To 70 000 Kg/h (0 To 2570 Lb/min)

Highlight:

Proline Promass H 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Payment & Shipping Terms

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

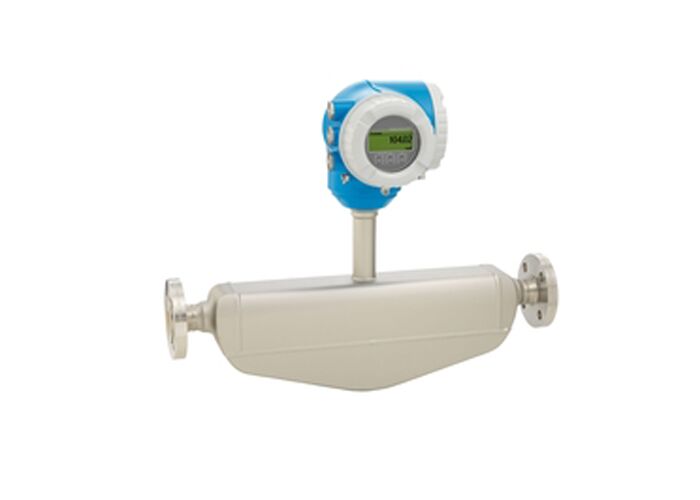

Proline Promass H 300 Coriolis Flowmeter

The highly accurate Promass H is designed for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its compact transmitter, the Promass H 300 offers high flexibility in operation and system integration.

Key Features

Maximum safety for chemically aggressive fluids with corrosion-resistant wetted parts
Multivariable measurement (flow, density, temperature) reducing process measuring points
Space-saving installation with no inlet/outlet run requirements
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display capability
Integrated verification through Heartbeat Technology

Technical Specifications

Measuring Principle

Coriolis

Nominal Diameter

DN 8 to 50 (3/8" to 2")

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Max Process Pressure

PN 40, Class 300, 20K

Measurement Accuracy

Mass Flow (Liquid)	±0.10%
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas, Tantalum)	±0.50%
Density (Liquid)	±0.0005 g/cm³

Temperature Ranges

Medium - Tantalum	-50 to +150 °C (-58 to +302 °F)
Medium - Zirconium	-50 to +205 °C (-58 to +401 °F)
Ambient - Standard	-40 to +60 °C (-40 to +140 °F)
Ambient - Optional	-50 to +60 °C (-58 to +140 °F)

Materials & Construction

Wetted Materials	Measuring tube: Tantalum 2.5W; 702 (UNS R60702) Connection: Tantalum; 702 (UNS R60702)
Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L

Communication & Connectivity

Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC, CE, C-tick, EAC marking, PED, CRN, and functional safety according to IEC 61508.

Heartbeat Technology: Enables process safety at all times and complies with requirements for measurement traceability according to ISO 9001:2015.
