Name: Proline Promass H 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass H 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promass H 500 Coriolis flowmeter

Proline Promass H 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promass H 500

Request A Quote

Product Details

Measuring Range:

0 To 70 000 Kg/h (0 To 2570 Lb/min)

Max. Process Pressure:

PN 40, Class 300, 20K

Pressure:

PED, CRN

Material Certificates:

3.1 Material

Hazardous Area Approvals:

ATEX, IECEx, CCSAus, NEPSI, INMETRO, EAC, KC

Product Safety:

CE, C-tick, EAC Marking

Highlight:

Proline Promass H 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter for industrial use

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

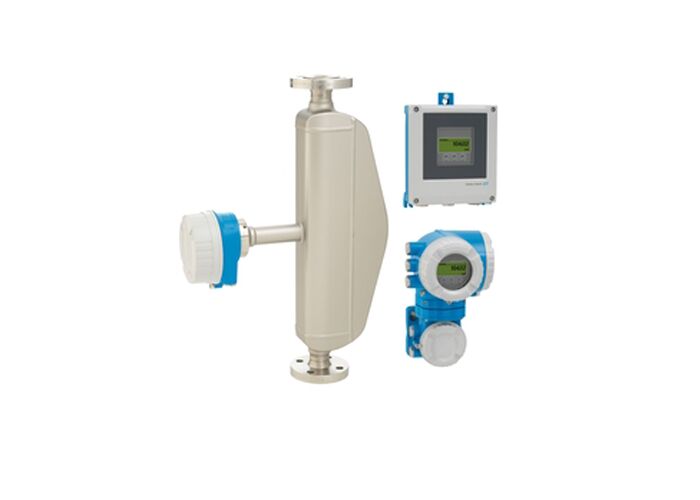

Proline Promass H 500 Coriolis Flowmeter

The highly accurate Promass H 500 is designed for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its innovative remote transmitter, it maximizes installation flexibility and operational safety in demanding environments.

Key Features

Maximum safety for chemically aggressive fluids with corrosion-resistant wetted parts
Multivariable measurement (flow, density, temperature) reducing process measuring points
Space-saving installation with no inlet/outlet run requirements
Heartbeat Technology enables integrated verification and process safety
Freely configurable I/O functionality reducing complexity

Technical Specifications

Measuring Principle: Coriolis

Nominal Diameter: DN 8 to 50 (3/8" to 2")

Measuring Range: 0 to 70,000 kg/h (0 to 2,570 lb/min)

Max Process Pressure: PN 40, Class 300, 20K

Measurement Accuracy

Measurement Type	Accuracy
Mass Flow (Liquid)	±0.10%
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas, Tantalum only)	±0.50%
Density (Liquid)	±0.0005 g/cm³

Temperature Ranges

Material	Temperature Range
Tantalum	-50 to +150 °C (-58 to +302 °F)
Zirconium	-50 to +205 °C (-58 to +401 °F)
Ambient (Standard)	-40 to +60 °C (-40 to +140 °F)

Wetted Materials

Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)

Transmitter Features

Remote version with up to 4 I/Os, backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.

Communication & Outputs

Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC, CE, C-tick, EAC marking, PED, CRN, and material certificates 3.1.
