Name: Proline Promass I 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass I 500
Price: 2,540.00 USD
Availability: InStock

Home > Products > Electromagnetic Flow Meter >

Proline Promass I 500 Coriolis flowmeter

Proline Promass I 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Brand Name:

Endress+Hauser

Certification:

Model Number:

Proline Promass I 500

Request A Quote

Product Details

Measuring Range:

0 To 180 000 Kg/h (0 To 6600 Lb/min)

Max. Process Pressure:

PN 100, Class 600, 63K

Medium Temperature Range:

–50 To +150 °C (–58 To +302 °F)

Ambient Temperature Range:

Standard: –40 To +60 °C (–40 To +140 °F)

Hazardous Area Approvals:

ATEX, IECEx, CCSAus, NEPSI, INMETRO, EAC, KC

Product Safety:

CE, C-tick, EAC Marking

Highlight:

Proline Promass I 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Promass S 300 Coriolis flowmeter

Get Best Price

Proline Promass P 500 Coriolis flowmeter

Get Best Price

Proline Promass Q 300 Coriolis flowmeter

Get Best Price

Proline t-mass F 500 thermal mass flowmeter

Get Best Price

Contact Now

Product Description

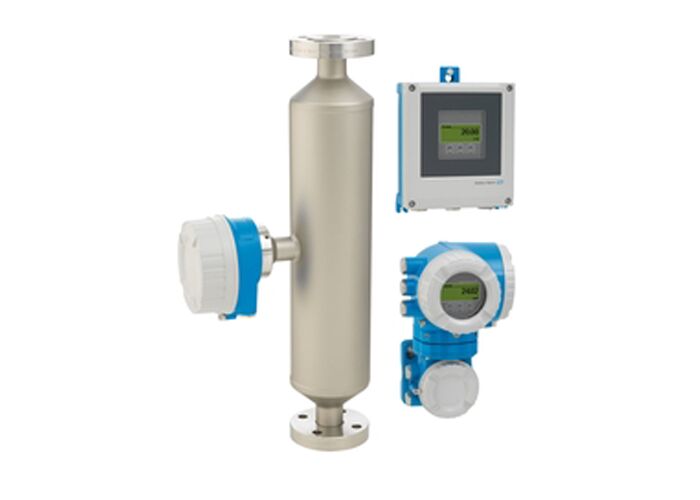

Proline Promass I 500 Coriolis Flowmeter

The straight single-tube design of Promass I provides in-line viscosity measurement in addition to mass flow, density and temperature measurement. With its innovative remote transmitter, Promass I 500 maximizes installation flexibility and operational safety in demanding environments.

Key Innovation

Heartbeat Technology enables measurement reliability and compliant verification. The measuring principle operates independently of physical fluid properties such as viscosity or density.

Technical Specifications

Measurement Accuracy	Mass flow (liquid): ±0.10% Volume flow (liquid): ±0.10% Mass flow (gas): ±0.50% Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 180,000 kg/h (0 to 6,600 lb/min)
Temperature Range	-50 to +150 °C (-58 to +302 °F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter	DN 8 to 80 (⅜ to 3")

Key Benefits

Energy Efficiency

Full bore design enables minimal pressure loss

Process Optimization

Multivariable measurement reduces process measuring points

Space Saving

No inlet/outlet run requirements for installation

Advanced Connectivity

Numerous freely combinable I/Os and Ethernet access

Device Features

Sensor Features

Straight, easy-to-clean single-tube system
TMB technology for enhanced performance
Measuring tube made of Titanium grade 9
Connection made of Titanium grade 2

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Freely configurable I/O functionality

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Communication & Connectivity

Digital Communication	HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Outputs	4 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs	Status input, 4-20 mA input

Certifications & Approvals

Hazardous Areas: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508 compliant for safety-relevant applications
Metrological: ISO/IEC 17025 accredited calibration, ISO 9001:2015 compliant
Pressure: PED, CRN
Material: 3.1 material certificates
Hygienic: 3-A, EHEDG, cGMP
