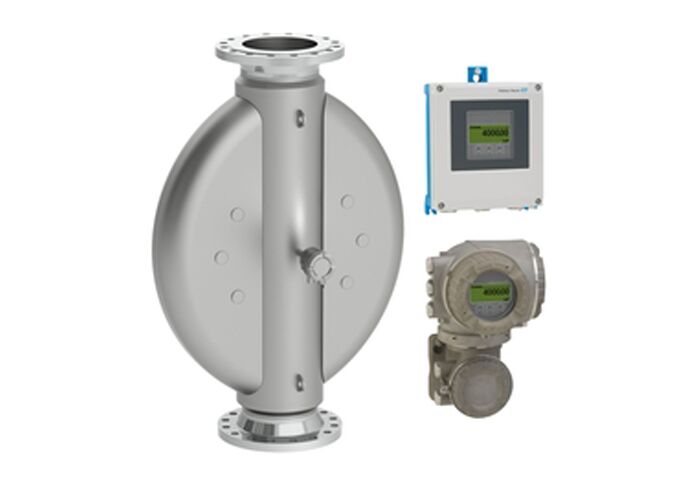

Proline Promass X 500 Coriolis Flowmeter
The patented four-tube Promass X provides premium accuracy (0.05%) for highest capacity and offers outstanding performance in on- and offshore applications in the oil and gas industry.
Key Features
- Highest capacity four-tube flowmeter with remote transmitter
- Premium accuracy: ±0.10% standard, ±0.05% optional
- Multivariable measurement (flow, density, temperature)
- Heartbeat Technology for measurement reliability and verification
- Operates independently of fluid properties like viscosity or density
Technical Specifications
Measurement Error:
Mass flow (liquid): ±0.10% (standard), 0.05% (option)
Volume flow (liquid): ±0.10%
Mass flow (gas): ±0.25%
Density (liquid): ±0.0005 g/cm³
Measuring Range:
0 to 4100 t/h (0 to 4520 tn. sh./h)
Medium Temperature:
-50 to +180 °C (-58 to +356 °F)
Max Process Pressure:
PN 100, Class 600
Nominal Diameter:
DN 300 to 400 (12 to 16")
Ambient Temperature:
Standard: -40 to +60 °C (-40 to +140 °F)
Option: -60 to +60 °C (-76 to +140 °F)
Operational Benefits
Increased profit through single installation point providing premium accuracy for large quantities
Fewer process measuring points with multivariable measurement capability
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os
Reduced complexity through freely configurable I/O functionality
Integrated verification via Heartbeat Technology
Device Properties
Sensor Features
Four-tube system with low pressure drop
Complete exterior design: 1.4435 (316L)
Wetted materials: 1.4404 (316/316L)
Transmitter Features
Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Standard cable between sensor and transmitter
Communication & Connectivity
Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Outputs: 4-20 mA HART, 4-20 mA WirelessHART, pulse/frequency/switch output, relay output
Inputs: Status input, 4-20 mA input
Certifications & Approvals
Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, IEC 61511
Marine: LR, DNV, ABS, BV, CCS approvals
Pressure: PED, CRN
Material: 3.1 material, NACE MR0175/MR0103, PMI
