Teqwave H – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Request A Quote

Teqwave H – Ultrasonic concentration meter

Product Details

Process Temperature:

0 To 120°C (32 To 248 °F)

Process Pressure:

Max. 16 Bar At 20 °C (232 Psi At 68 °F)

Ex Certification:

Non-hazardous Area

Ingress Protection:

Sensor: IP67, IP69 Optional

Highlight:

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Prosonic Flow E 100 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 300 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 500 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow I 400 ultrasonic flowmeter

Get Best Price

Contact Now

Product Description

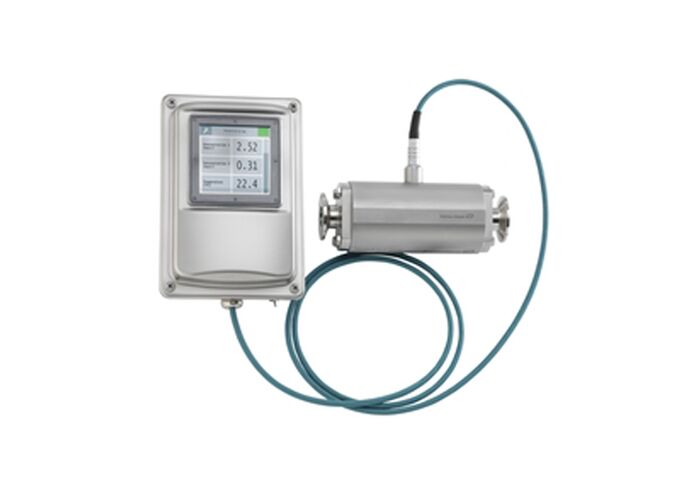

Teqwave H – Ultrasonic Concentration Meter

Inline device with best-in-class hygienic design - plug and play for food and beverage processes. High accuracy and repeatability with continuous quality monitoring of beverages and in cleaning processes.

Field of Application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. The device provides highly accurate in situ concentration measurement with a hygienic design, reducing operational expenditure by monitoring multiple parameters simultaneously.

Key Benefits

High accuracy and repeatability - concentration calculation with latest algorithms
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Full transparency - constant monitoring of product quality without sampling
Highest process safety - reliable metering due to robust, maintenance-free sensor
Customized usage - innovative application concept, expandable for changing measuring tasks
Simplified process control - user-friendly operation and clear status visualization
Local data backup - integrated data storage for measured values up to 7.5 years

Technical Specifications

Measuring Principle	Ultrasonic concentration
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Nominal Diameter	DN 25 (1" DIN and ANSI)
Design	Inline, hygienic
Process Temperature	0 to 120°C (32 to 248°F)
Process Pressure	max. 16 bar at 20°C (232 psi at 68°F)
Power Supply	DC 24V ±20%

Measurement Accuracy

Acoustic Density	±0.01 g/cm³
Temperature	±0.5 K
Sound Velocity	±2 m/s

Measuring Ranges

Concentration	According to concentration app data sheet, maximum 0 to 100%
Sound Velocity	600 to 2000 m/s
Temperature	0 to +100°C (32 to +212°F)
Acoustic Density	0.7 to 1.5 g/cm³

Device Features

Sensor Features

Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Highest process safety - reliable metering due to robust, maintenance-free sensor

Transmitter Features

Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Customized usage - innovative application concept
Local data storage for measured values up to 7.5 years

Materials & Certifications

Wetted Materials	Stainless steel 1.4404 (316L)
Transmitter Housing	Anodized aluminium and glass, optional 1.4301 and plastic
Ingress Protection	Sensor: IP67, IP69 optional Transmitter: IP40, optional IP67
Product Safety	CE, UKCA, RCM
Ex Certification	Non-hazardous area
