Teqwave I – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

Place of Origin:

Switzerland

Brand Name:

Endress+Hauser

Certification:

Request A Quote

Teqwave I – Ultrasonic concentration meter

Product Details

Process Temperature:

0 To 100 °C (32 To 212 °F)

Process Pressure:

Max. 16 Bar At 20 °C (232 Psi At 68 °F)

Display/Operation:

LED Status IndicationTFT Color Touch Display

Outputs:

Modbus TCP, Relay (AC 50V, DC30V 1A), 4-20mA/0 To 10V Analog Output

Highlight:

Ultrasonic concentration meter Teqwave I

Ultrasonic flow meter with warranty

Teqwave I concentration measurement device

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Proline Prosonic Flow E 100 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 300 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow G 500 ultrasonic flowmeter

Get Best Price

Proline Prosonic Flow I 400 ultrasonic flowmeter

Get Best Price

Contact Now

Product Description

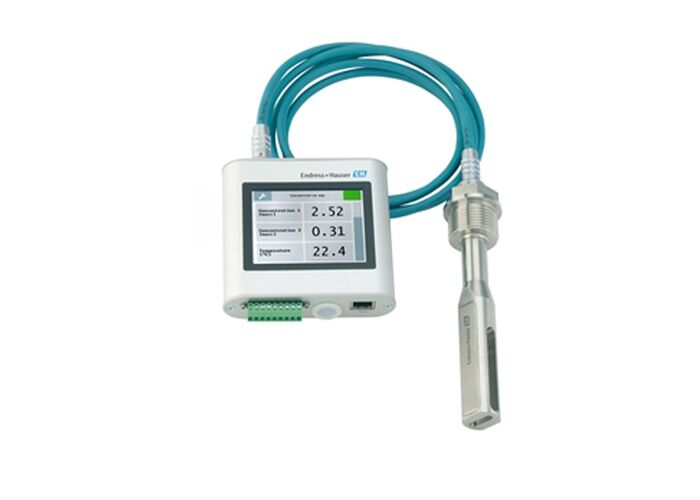

Teqwave I – Ultrasonic Concentration Meter

The Teqwave I insertion measuring device delivers precise real-time liquid analysis for vessels and larger pipes. This advanced ultrasonic concentration meter provides continuous monitoring of multiple parameters simultaneously, reducing operational costs while ensuring product quality.

Key Specifications

Maximum Measurement Error	Acoustic density: ±0.01g/cm³ Temperature: ±0.5K Sound velocity: ±2m/s
Measuring Range	Concentration: 0 to 100% Sound velocity: 600 to 2000 m/s Temperature: 0 to +100°C (32 to +212°F) Acoustic Density: 0.7 to 1.5 g/cm³
Process Conditions	Temperature: 0 to 100°C (32 to 212°F) Pressure: max. 16 bar at 20°C (232 psi at 68°F)
Wetted Materials	Stainless steel 1.4571 (316 Ti), others available on request

Primary Benefits

Easy and efficient - Real-time in situ liquid analysis
Full transparency - Constant monitoring of product quality without sampling
Highest process safety - Reliable metering with robust, maintenance-free sensor
Cost-saving - Fewer measuring points due to multivariable measurement
Customized usage - Innovative application concept, expandable for changing measuring tasks
Simplified process control - User-friendly operation and clear status visualization
Local data backup - Integrated storage for measured values up to 7.5 years

Technical Features

Sensor Specifications

Insertion lengths: 180 mm (7 in) or 500 mm (20 in)
Accurate measurement independent of flow profile
Material: Stainless steel 1.4571 (316Ti)
Ingress protection: IP68 (with plugged-in cable)

Transmitter Features

Industry-compliant DIN rail installation
3.5" TFT color touch screen or LED indication
Outputs: 4-20 mA, Modbus TCP, Relay (AC 50V, DC30V 1A), 0 to 10V Analog
Housing material: Anodized aluminum and glass
Ingress protection: IP40

Measurement Capabilities

The Teqwave I simultaneously measures concentration, sound velocity, temperature, acoustic density, and dispersion using advanced ultrasonic technology. Its acoustic waveguide detects even the smallest changes with exceptional precision.

Electrical & Safety

Power Supply	DC 24V ±20%
Certifications	CE, UKCA, RCM
Ex Certification	Non-hazardous area
