UM30 Ultrasonic Distance Sensor with 8000 mm Sensing Range, High Measurement Accuracy, and IO-Link Interface

UM30 Ultrasonic Distance Sensor with 8000 mm Sensing Range, High Measurement Accuracy, and IO-Link Interface

UM30 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Brand Name:

SICK

Model Number:

UM30

Contact Us
Request A Quote
UM30 Ultrasonic Distance Sensor with 8000 mm Sensing Range, High Measurement Accuracy, and IO-Link Interface
Product Details
Limiting Range:
350 Mm ... 8,000 Mm (depending On Type)
Operating Range::
30 Mm ... 6,000 Mm (depending On Type)
Repeatability:
± 0.15 %
Resolution:
≥ 0.18 Mm
Output Time:
8 Ms ... 60 Ms (depending On Type)
Highlight:

UM30 ultrasonic distance sensor

,

water quality ultrasonic sensor

,

distance sensor with warranty

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KWD300 Ultrasonic Noise Detection Sensor with 1~60KHz Frequency Band IP68 Protection and RS485 Digital Output online

KWD300 Ultrasonic Noise Detection Sensor with 1~60KHz Frequency Band IP68 Protection and RS485 Digital Output

Get Best Price
Good price Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 10m Detection Range and RS485/TTL Output for Multi-Beam Linkage online

Split-Type Ten-Beam Underwater Obstacle Avoidance Sensor with 10m Detection Range and RS485/TTL Output for Multi-Beam Linkage

Get Best Price
Good price UM30 Ultrasonic Distance Sensor with 8000 mm Sensing Range, High Measurement Accuracy, and IO-Link Interface online

UM30 Ultrasonic Distance Sensor with 8000 mm Sensing Range, High Measurement Accuracy, and IO-Link Interface

Get Best Price
Good price SITRANS Probe LU240 Ultrasonic Level Transmitter with 12 m Range HART Communication and ETFE or PVDF Transducers online

SITRANS Probe LU240 Ultrasonic Level Transmitter with 12 m Range HART Communication and ETFE or PVDF Transducers

Get Best Price
Contact Us
Contact Now
Product Description

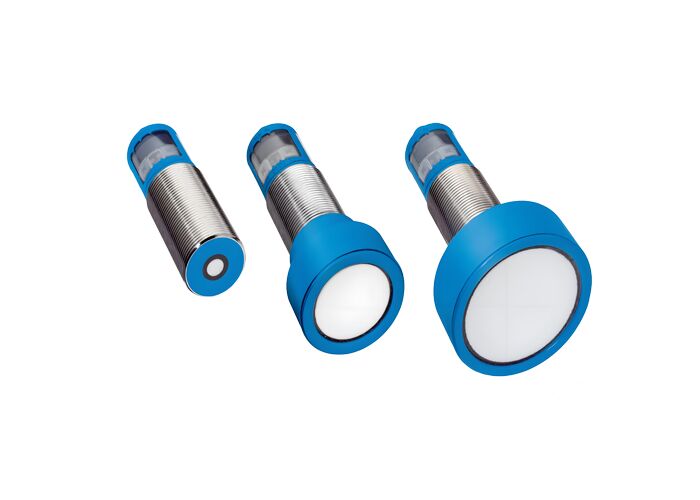

UM30 Ultrasonic Distance Sensors

Ultrasonic distance sensors

UM30 - The Universal Application Solver

The sensors of the UM30 product family impress with high flexibility. Various sensing ranges of up to 8,000 mm as well as countless configuration options leave no applications unsolved. The high measurement accuracy provided by internal temperature compensation, along with color-independent object detection, immunity to contamination, and a wide operating temperature range up to 70 °C all ensure reliable operation, even under the most challenging conditions.

Benefits
  • Easy system integration due to compact design
  • Flexible adaptation to application requirements due to numerous configuration options and adjustable sensitivity
  • Reliable measurement results since synchronization and multiplex mode prevents mutual interference of sensors
  • Inexpensive area monitoring possible due to sensor synchronization
  • Offline sensor configuration on display enables pre-configuration and saves time when commissioning the system
  • Integrated temperature compensation for high measurement accuracy
  • ObSB mode enables detection of any object between the sensor and a taught-in background
Features
  • Reliable measurement, regardless of material color, transparency, gloss, or ambient light
  • Sensing range up to 8,000 mm
  • Display enables fast and flexible sensor adjustment
  • Immune to dirt, dust, humidity, and fog
  • Versatile interfaces including IO-Link available
  • Adjustable sensitivity
Variants
Product Variant Part No. Min. Measuring Range Max. Measuring Range Communication Interface Type of Digital Output Type of Analog Output Measuring Frequency Switching Frequency Response Time
UM30-2141136036919350 mm3400 mm--Current output, voltage output120 kHz-180 ms
UM30-21111B606844730 mm250 mmIO-Linkpush-pull: PNP/NPN-320 kHz25 Hz32 ms
UM30-2141186036924350 mm3400 mm-PNPCurrent output, voltage output120 kHz4 Hz180 ms
UM30-21311B6068449200 mm1300 mmIO-Linkpush-pull: PNP/NPN-200 kHz8 Hz92 ms
UM30-2131136036918200 mm1300 mm--Current output, voltage output200 kHz-92 ms
UM30-2151186036925600 mm6000 mm-PNPCurrent output, voltage output80 kHz3 Hz240 ms
UM30-21511B6068451600 mm6000 mmIO-Linkpush-pull: PNP/NPN-80 kHz3 Hz240 ms
UM30-212113603691765 mm350 mm--Current output, voltage output400 kHz-64 ms
UM30-212112603766565 mm350 mm-PNP-400 kHz12 Hz64 ms
UM30-2141146037677350 mm3400 mm-NPN-120 kHz4 Hz180 ms
UM30-2131116037537200 mm1300 mm-PNP-200 kHz8 Hz92 ms
UM30-212118603692265 mm350 mm-PNPCurrent output, voltage output400 kHz12 Hz64 ms
UM30-2141126037667350 mm3400 mm-PNP-120 kHz4 Hz180 ms
UM30-211112603766430 mm250 mm-PNP-320 kHz25 Hz32 ms
UM30-2151136036920600 mm6000 mm--Current output, voltage output80 kHz-240 ms
UM30-211111603766030 mm250 mm-PNP-320 kHz25 Hz32 ms
UM30-2141116037662350 mm3400 mm-PNP-120 kHz4 Hz180 ms
UM30-2131186036923200 mm1300 mm-PNPCurrent output, voltage output200 kHz8 Hz92 ms
UM30-21411B6068450350 mm3400 mmIO-Linkpush-pull: PNP/NPN-120 kHz4 Hz180 ms
UM30-2151156037673600 mm6000 mm-NPN-80 kHz3 Hz240 ms
