Name: UC30 Ultrasonic distance sensors
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: UC30
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

UC30 Ultrasonic distance sensors

UC30 ultrasonic distance sensor

waterproof ultrasonic sensor

distance sensor with warranty

Brand Name:

SICK

Model Number:

UC30

Request A Quote

Product Details

Limiting Range::

5,000 Mm / 8,000 Mm (depends On Variant)

Operating Range::

350 Mm ... 6,000 Mm (depends On Variant)

Digital Output:

Type: PNP / NPN / Push-pull: PNP/NPN (depends On Variant)

Output Time:

43 Ms ... 60 Ms (depends On Variant)

Switching Frequency:

4 Hz / 3 Hz (depends On Variant)

Analog Output:

4 MA ... 20 MA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω

Highlight:

UC30 ultrasonic distance sensor

waterproof ultrasonic sensor

distance sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

UC12 Ultrasonic distance sensors

Get Best Price

UC30 Ultrasonic distance sensors

Get Best Price

UD18 Ultrasonic distance sensors

Get Best Price

UM12 Ultrasonic distance sensors

Get Best Price

Contact Now

Product Description

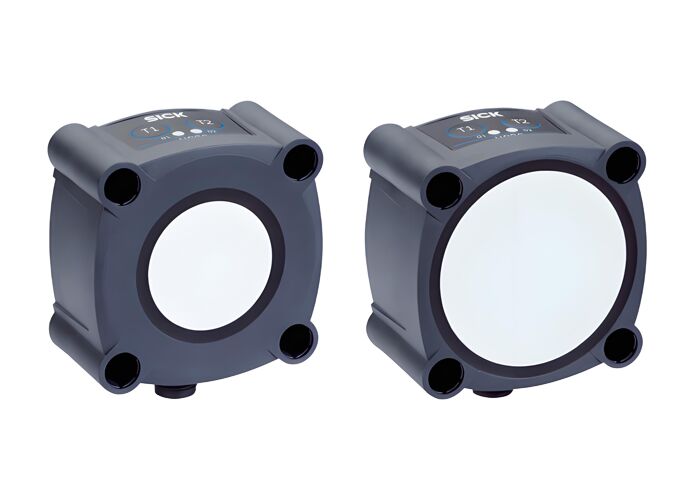

UC30 Ultrasonic Distance Sensors

Ultrasonic distance sensors UC30 deliver exceptional performance in a compact cubic housing. These rugged sensors provide reliable measurement results even in challenging industrial environments.

Rugged. Reliable. Rectangular.

The UC30 product family features excellent performance in a compact cubic design. With color-independent detection, high contamination tolerance, and outstanding background suppression, these sensors deliver stable measurement results under demanding conditions. Various output signals with sensing ranges up to 8,000 mm and integrated temperature compensation ensure high measurement accuracy for diverse applications. Teach-in buttons and IO-Link extend diagnostic and configuration capabilities.

Key Benefits

Compact cubic housing for straightforward machine integration
Rugged plastic housing ensures highest plant availability
Various output signals for solving complex applications
IO-Link with comprehensive diagnostic options for fault-free operation and simple maintenance
Teach-in buttons for fast and easy commissioning
Rugged ultrasonic technology measures reliably in dirty, dusty, humid, and foggy conditions
Integrated temperature compensation ensures high measurement accuracy for optimum process quality

Technical Features

Reliable measurement regardless of material color, transparency, gloss, or ambient light
Rugged housing with teach-in buttons
Sensing ranges up to 8,000 mm
Analog output, push-pull digital output with IO-Link, or two PNP/NPN digital outputs
Immune to dirt, dust, humidity, and fog
Adjustable sensitivity

Technical Parameters

Category	Details
Measuring range	Operating range: 350 mm ... 6,000 mm (depends on variant) Limiting range: 5,000 mm / 8,000 mm (depends on variant)
Resolution	≥ 0.18 mm
Repeatability	± 0.15 %
Response time	180 ms ... 240 ms ¹ 180 ms ... 240 ms
Output time	43 ms ... 60 ms (depends on variant)
Switching frequency	4 Hz / 3 Hz (depends on variant)
Analog output	4 mA ... 20 mA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω
Digital output	Type: PNP / NPN / push-pull: PNP/NPN (depends on variant)
IO-Link	✓, IO-Link V1.1
Enclosure rating	IP65 / IP67
Sending axis	Straight
Ambient temperature, operation	-25 °C ... +70 °C

Model Selection Guide

Product variant	Part no.	Min. measuring range	Max. measuring range	Communication interface	Type of digital output	Type of analog output	Measuring frequency	Switching frequency	Response time
UC30-21416B	6068452	350 mm	3400 mm	IO-Link	push-pull: PNP/NPN	-	120 kHz	4 Hz	180 ms
UC30-214164	6054713	350 mm	3400 mm	-	NPN	-	120 kHz	4 Hz	180 ms
UC30-21516B	6068453	600 mm	6000 mm	IO-Link	push-pull: PNP/NPN	-	80 kHz	3 Hz	240 ms
UC30-215163	6054716	600 mm	6000 mm	-	-	Current output, voltage output	80 kHz	-	240 ms
UC30-214163	6054712	350 mm	3400 mm	-	-	Current output, voltage output	120 kHz	-	180 ms
UC30-215162	6054715	600 mm	6000 mm	-	PNP	-	80 kHz	3 Hz	240 ms
UC30-215164	6054717	600 mm	6000 mm	-	NPN	-	80 kHz	3 Hz	240 ms
UC30-214162	6054711	350 mm	3400 mm	-	PNP	-	120 kHz	4 Hz	180 ms
