Name: UC40 Ultrasonic distance sensors
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: UC40
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

UC40 Ultrasonic distance sensors

UC40 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Brand Name:

SICK

Model Number:

UC40

Request A Quote

Product Details

Limiting Range::

600 Mm ... 5,000 Mm (depending On Type)

Operating Range::

65 Mm ... 3,400 Mm (depending On Type)

Output Time:

16 Ms ... 41.6 Ms (depending On Type)

Resolution:

0.1 Mm / 1 Mm (depending On Type)

Repeatability:

± 0.15 %

Response Time:

64 Ms ... 160 Ms ¹ (depending On Type)

Highlight:

UC40 ultrasonic distance sensor

water quality ultrasonic sensor

distance sensor with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

UC12 Ultrasonic distance sensors

Get Best Price

UC30 Ultrasonic distance sensors

Get Best Price

UD18 Ultrasonic distance sensors

Get Best Price

UM12 Ultrasonic distance sensors

Get Best Price

Contact Now

Product Description

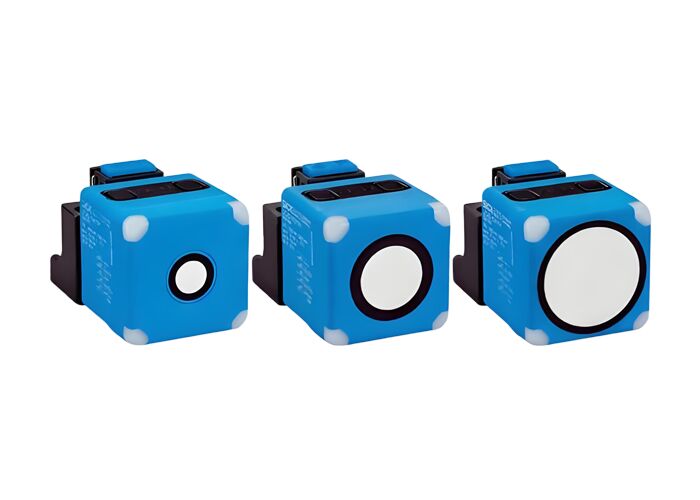

UC40 Ultrasonic Distance Sensors

The UC40 is a compact ultrasonic sensor for medium distances that precisely detects the distance, presence, or position of objects, regardless of material color and ambient light. This makes it suitable for level monitoring and collision avoidance applications.

Intelligent Ultrasonic All-Rounder with Flexible Design

Thanks to the convenient push-lock mounting concept and integrated analog and digital interfaces with IO-Link, the UC40 can be installed quickly and used anywhere. A rotatable sensor head facilitates alignment while IO-Link and teach-in buttons accelerate parameterization.

Key Benefits

High performance in compact housing
Insensitive to harsh conditions such as rain, fog, and dust
Application-specific adaptable sonic cone with interference echo suppression
Quick integration thanks to push-lock mounting concept
Plug and play sensor with proven factory settings
Easy parameterization via teach-in buttons and IO-Link
Lower warehousing costs due to variant reduction
Ideal solution for optically demanding conditions

Technical Features

Measuring range up to 5,000 mm
Individually adaptable sonic cone and interference echo suppression
Push-pull digital output with IO-Link and analog output
Teach-in buttons and status detection with 4 LEDs
Rotatable sensor head and push-lock mounting concept
Integrated temperature compensation
Diagnostic functions via IO-Link

Technical Parameters

Category	Details
Measuring range	Operating range: 65 mm ... 3,400 mm (depending on type) Limiting range: 600 mm ... 5,000 mm (depending on type)
Resolution	0.1 mm / 1 mm (depending on type)
Repeatability	± 0.15 %
Response time	64 ms ... 160 ms ¹ (depending on type)
Output time	16 ms ... 41.6 ms (depending on type)
Switching frequency	10 Hz / 7 Hz / 4 Hz
Analog output	4 mA ... 20 mA, ≤ 500 Ω ² / 0 V ... 10 V, ≥ 100,000 Ω
Digital output	Type: Push-pull: PNP/NPN
IO-Link	✓, IO-Link V1.1
Enclosure rating	IP65 / IP67
Sending axis	Straight
Ambient temperature, operation	-25 °C ... +70 °C

¹ Response time varies by product variant
² Impedance specification for current output

Model Selection Guide

Product Variant	Part No.	Min. Measuring Range	Max. Measuring Range	Type of Analog Output	Measuring Frequency	Switching Frequency	Response Time
UC40-11311H	6081949	200 mm	1300 mm	Current output, voltage output	200 kHz	7 Hz	96 ms
UC40-11211B	6081945	65 mm	350 mm	-	400 kHz	10 Hz	64 ms
UC40-11311B	6081946	200 mm	1300 mm	-	200 kHz	7 Hz	96 ms
UC40-11411H	6081950	350 mm	3400 mm	Current output, voltage output	120 kHz	4 Hz	160 ms
UC40-11411B	6081947	350 mm	3400 mm	-	120 kHz	4 Hz	160 ms
UC40-11211H	6081948	65 mm	350 mm	Current output, voltage output	400 kHz	10 Hz	64 ms
