Name: Pointek CLS300 Digital Capacitive Level Switch with Inverse Frequency Shift Detection and PROFIBUS PA for High Temperature Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: CLS300 - Digital
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

Pointek CLS300 Digital Capacitive Level Switch with Inverse Frequency Shift Detection and PROFIBUS PA for High Temperature Applications

Pointek CLS300 digital water sensor

water quality sensor with warranty

digital CLS300 water monitoring

Brand Name:

SIEMENS

Model Number:

CLS300 - Digital

Request A Quote

Product Details

Measuring Principle:

Inverse Frequency Shift Capacitive Level Detection

Measured Variable:

Change In PicoFarad (pF)

Output:

Galvanically Isolated

Protection:

Against Reversed Polarity (bipolar)

Max. Load Current:

82 MA

Highlight:

Pointek CLS300 digital water sensor

water quality sensor with warranty

digital CLS300 water monitoring

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KWS-850 Multi-parameter Water Quality Sensor with RS-485(Modbus/RTU) Output, Automatic Cleaning, and ±0.1pH Accuracy for Wastewater Treatment

Get Best Price

Portable Conductivity Meter SC92 with IP67 Waterproof, Wide Measuring Range, and Large Backlit Display

Get Best Price

KSM-150B Wall Mounted Residual Chlorine Meter with Non-Membrane Sensor and 4-20mA Output

Get Best Price

Video

KWS-850 Online Multi-Parameter Water Quality Sensor with RS-485 Modbus/RTU, Automatic Cleaning, and ±0.1pH Accuracy

Get Best Price

Contact Now

Product Description

Pointek CLS300 - Digital

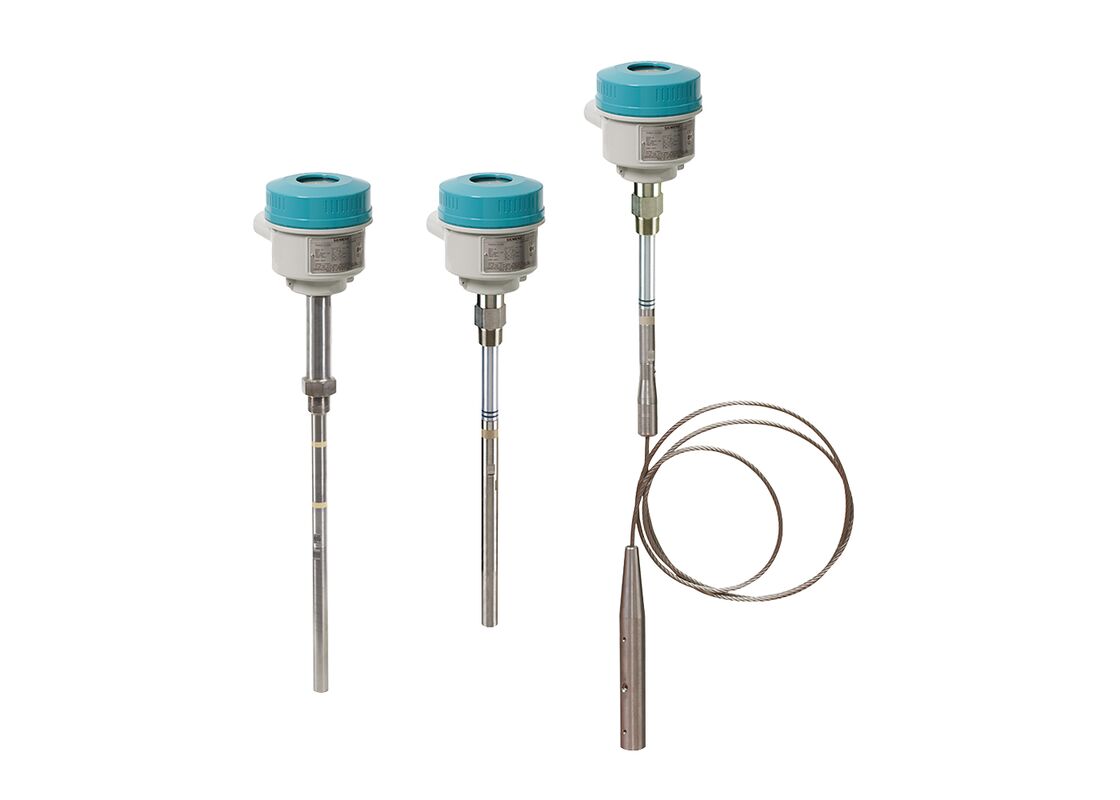

Pointek CLS300 (digital version) is an inverse frequency shift capacitance level and material detection switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam, and interfaces in demanding conditions where high pressure and temperatures are present and has the ability to tune out buildup on the probe. The digital version includes PROFIBUS PA, an LCD display, and advanced diagnostic features.

Part Number	Description
7ML5660-.....-....	CLS300, DIGITAL, ROD VERSION, THREAD/FLANGE
7ML5661-.....-....	CLS300, DIGITAL, CABLE VERSION, THREAD/FLANGE
7ML5662-.....-....	CLS300, DIGITAL, HIGH TEMP ROD, THREAD/FLANGE

Related Products

Part Number	Description
7ML1830-1AP	EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 1 INCH GALVANIZED COUPLING
7ML1830-1JA	CABLE GLAND, 1/2" NPT, General Purpose DIP
7ML1830-1JB	CABLE GLAND, 1/2" NPT, explosion proof
7ML1830-1JC	M20 x 1.5 cable gland (general use and dust explosion protection)
7ML1830-1JD	CABLE GLAND, M20 x 1.5 HF, (EP)
7ML1830-1JE	Test Magnet
7ML1830-1JF	AMPLIFIER / POWER SUPPLY DIGITAL VERSION
7ML1830-1JK	LCD DISPLAY FOR CLS 200, DIGITAL
7ML1930-1AQ	One metallic cable gland M20x1.5, rated -40°C (-40°F) to +80°C (+176°F) with integrated shield connection (available for PROFIBUS PA)
A5E01163688	Kit, 316L stainless steel cable extension, 1 Meter, CLS300/LC300
A5E01163689	Kit, 316L stainless steel cable extension, 3 Meter, CLS300/LC300
A5E01163690	Kit, 316L stainless steel cable extension, 5 Meter, CLS300/LC300
A5E01163691	Kit, 316L stainless steel cable extension, 10 Meter, CLS300/LC300
A5E01163693	Kit, 316L stainless steel cable extension, 15 Meter, CLS300/LC300
A5E01163695	Kit, 316L stainless steel cable extension, 20 Meter, CLS300/LC300
A5E01163698	Kit, 316 stainless steel PFA cable extension, 3 METER, CLS300
A5E01163699	Kit, 316 stainless steel PFA cable extension, 5 METER, CLS300
A5E01163700	Kit, 316 stainless steel PFA cable extension, 10 METER, CLS300
A5E01163701	Kit, 316 stainless steel PFA cable extension, 15 METER, CLS300
A5E01163702	Kit, 316 stainless steel PFA cable extension, 20 METER, CLS300
A5E01163719	Kit, 316L stainless steel rod 180 mm (7.09")
A5E01163720	Kit, 316L stainless steel rod 330 mm (12.99")
A5E01163721	Kit, 316L stainless steel rod 580 mm (22.83")
A5E01163722	Kit, 316L stainless steel rod 830 mm (32.68")
A5E01163723	Replacement electronics with driver, CLS300 standard. For use with rod or Cable versions with maximum length of 5 m
A5E01163724	Replacement electronics with driver, CLS300 standard. For use with Cable versions with minimum length of 5 m
A5E01163725	Replacement electronics with driver, CLS300 Digital. For use with rod or Cable versions with maximum length of 5 m
A5E01163726	Replacement electronics with driver, CLS300 Digital. For use with Cable versions with minimum length of 5 m
A5E01163727	KIT, Spare 316L stainless steel weight, CLS/LC300, cable version
A5E03251683	Kit, CLS300 standard, transmitter

Benefits

Active-Shield technology so measurement is unaffected by material buildup or nozzle interference in active shield section
Performs in extremely abrasive conditions because of solid rod construction
Push-button calibration, full-function diagnostics
High sensitivity allows installation in a wide range of liquids, solids or slurry applications
Integral LCD display allows for easy menu-driven setup
PROFIBUS PA communication (SIMATIC PDM compatible)

Application

Pointek CLS300 digital version provides an integral LCD display for stand-alone use, with PROFIBUS PA communication (Profile version 3.0, Class B) when required. Solid-state switch alarm is standard.

The robust design of CLS300 makes it specifically applicable for heavy solids applications where abrasive materials occur as in the mining industry. The fully potted electronics are unaffected by condensation, dust or vibration.

Wetted parts are made of stainless steel with a PFA shield for high chemical resistance, and of ceramic and stainless steel for high temperature version. Materials with low or high dielectric constants can be accurately detected. The unique Active Shield suppresses interference from material buildup or long installation nozzles.

The unique modular design of the Pointek CLS300 provides a wide range of configurations, process connections, extensions and approvals to meet the temperature and pressure requirements of specific applications. The modular design makes ordering easier and reduces stocking requirements. A wide range of probe configurations are available, including rod and cable versions.

Key Applications: liquids, slurries, bulk solids, relatively high pressure and temperature, hazardous areas, milling and mining applications

Configuration

Technical Specifications

Mode of operation

Measuring principle

Inverse frequency shift capacitive level detection

Input

Measured variable

Change in picoFarad (pF)

Output

Solid-state output

- Output

Galvanically isolated

- Protection

Against reversed polarity (bipolar)

- Max. switching voltage

30 V (DC)
30 V peak (AC)

- Max. load current

82 mA

- Voltage drop

< 1 V, typical at 50 mA

- Time delay (pre or post switching)

Programmable by user (0 ... 100 s)

Fail-safe mode

Min. or max.

Connection

Removable terminal block

Accuracy

Resolution

- Min. sensitivity (pF)

1 % change in actual capacitance

- Max. temperature error

0.2 % of actual capacitance value

Rated operating conditions

Installation conditions

- Location

Indoor/outdoor

Ambient conditions

- Ambient temperature

‑40 ... +85 °C (‑40 ... +185 °F)

- Storage temperature

‑40 ... +85 °C (‑40 ... +185 °F)

Medium conditions

Liquids, bulk solids, slurries, interfaces, and applications with viscous materials

- Relative dielectric constant εr

Min. 1.5

- Process temperature

- Rod/Cable version

-40 ... +200 °C (-40 ... +392 °F)

- High Temperature version

-40 ... +400 °C (-40 ... +752 °F)

- Process pressure

-1 ... +35 bar g (-14.6 ... +511 psi g)

Design

Material (enclosure)

Powder-coated aluminum with gasket

Degree of protection

Standard: Type 4/NEMA 4/IP65
Optional: Type 4/NEMA 4/IP68

Cable inlet

2 x M20 x 1.5 thread (option: 2 x ½" NPT conduit entry including 1 plugged entry)

Controls and displays

Local display

LCD

Configuration

Locally, using 3 button keypad (for standalone operation)
Remotely, using SIMATIC PDM (for installation on a network)

Power supply

Bus voltage (at process connection)

Standard: 12 ... 30 V DC
Intrinsically Safe: 12 ... 24 V DC

Current consumption

12.5 mA

Certificates and approvals

General Purpose

CSA, FM, CE, UKCA, RCM

Dust Ignition Proof

ATEX II 1/2 D, 2 D IP6X T100 °C UKEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db

Flameproof Enclosure With IS Probe

ATEX II 1/2 G EEx d[ia] IIC T6 ... T4
ATEX II 1/2 D T100 °C UKEX II 1/2 G Ex ia/db [ia Ga] IIC TX Ga/Gb
UKEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db

Dust Ignition Proof With IS Probe

CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4

Intrinsically Safe

ATEX II 1 G EEx ia IIC T6 ... T4
ATEX II 1/2 D, 2 D IP6X T100 °C UKEX II 1 G Ex ia IIC TX Ga
UKEX II 1/2 D Ex ia IIIC TX Da/Db CSA/FM Class I, Div. 1, Groups A, B, C, D
CSA/FM Class II, Div. 1, Groups E, F, G
CSA/FM Class III T4

Non-incendive

CSA/FM Class I, Div. 2, Groups A, B, C, D
CSA/FM Class II, Div. 2, Groups F, G
CSA/FM Class III T4 or T6

Explosion Proof with IS Probe

CSA/FM Class I, Div. 1, Groups A, B, C, D
CSA/FM Class II, Div. 1, Groups E, F, G
CSA/FM Class III T4

Marine

Lloyds Register of Shipping, Categories ENV1, ENV2, and ENV5

Others

Pattern Approval (China)

Communication

PROFIBUS PA (IEC 61158 CPF3 CP3/2) Bus physical layer: IEC 61158-2 MBP-(IS) Device profile: PROFIBUS PA profile for Process Control Devices Version 3.0, Class B FISCO field device
