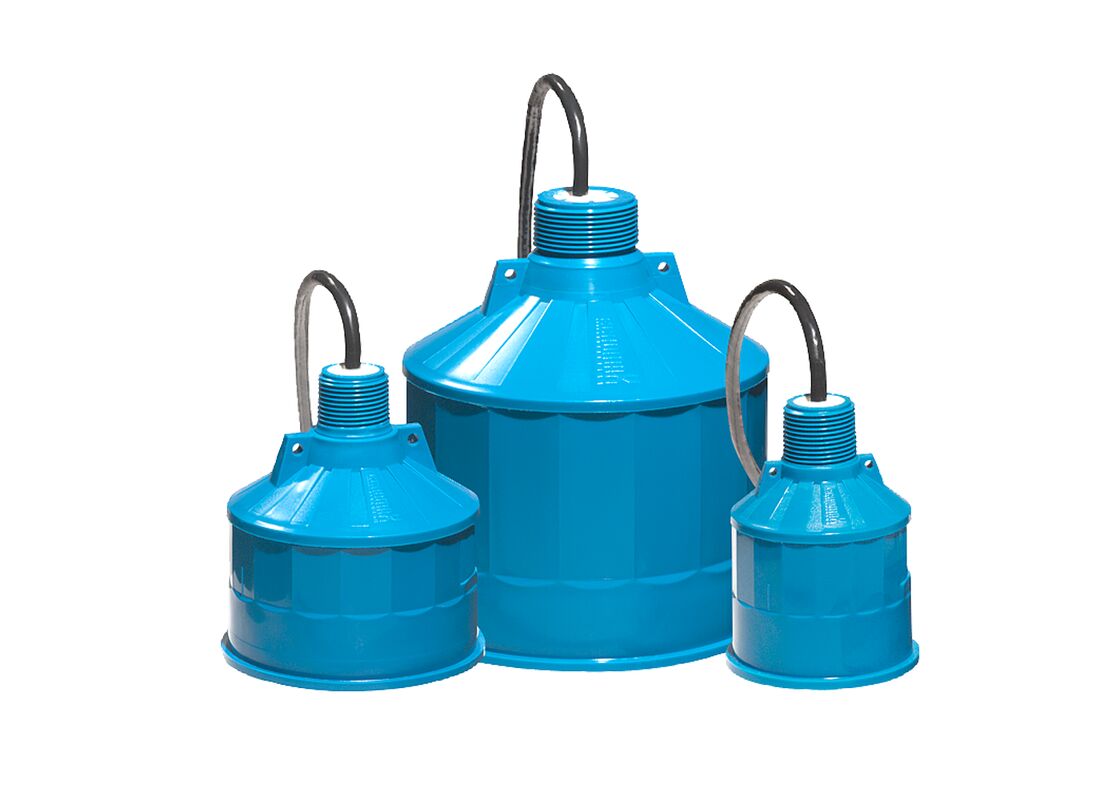

EchoMax XPS Transducers
EchoMax XPS transducers use ultrasonic technology to measure level in a wide range of liquids and solids.
Available Models
| 7ML1121-..... |
ECHOMAX XPS-10C TRANSDUCER |
| 7ML1124-..... |
ECHOMAX XPS-15C TRANSDUCER |
| 7ML1171-..... |
ECHOMAX XPS-15F TRANSDUCER |
| 7ML1155-..... |
Echomax XPS-30C Transducer |
| 7ML1115-..... |
ECHOMAX XPS-10 TRANSDUCER |
Accessories and Parts
| Part Number |
Description |
| 7ML1830-1AN |
EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 1 - 1 1/2 INCH GALVANIZED COUPLING (FOR USE WITH XPS-30 OR XPS-40 TRANSDUCERS ONLY) |
| 7ML1830-1AQ |
EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 3/4 - 1 INCH PVC COUPLING |
| 7ML1830-1AT |
EASY AIMER II, 304, with NPT THREAD, with 1 1/2 INCH coupling |
| 7ML1830-1AU |
EASY AIMER II, 304, FLANGE WITH NPT THREAD, W/CPLNG, 1 INCH |
| 7ML1830-1AX |
Easy Aimer II Flange, Aluminium with M20 Adapter, 1" and 1-1/2" BSP aluminium coupling |
| 7ML1830-1BH |
SHIELD, SUBMERGENCE, KIT, for XPS10/XRS-5 sensors |
| 7ML1830-1BJ |
SHIELD, SUBMERGENCE, KIT, for XPS15 sensors |
| 7ML1830-1BK |
UNIVERSAL BOX BRACKET, FMS-200 |
| 7ML1830-1BL |
CHANNEL BRACKET, WALL MOUNT, FMS-210 |
| 7ML1830-1BM |
EXTENDED CHANNEL BRACKET, WALL MOUNT FMS-220 |
| 7ML1830-1BN |
CHANNEL BRACKET, FLOOR MOUNT FMS-310 |
| 7ML1830-1BP |
EXTENDED CHANNEL BRACKET, FLOOR MOUNT, FMS-320 |
| 7ML1830-1BQ |
BRIDGE CHANNEL BRACKET, FLOOR MOUNT, FMS-350 |
| 7ML1830-1DN |
LOCKNUT, 1"BSP, FLANGED, PLASTIC |
| 7ML1830-1DP |
Locknut, 1 1/2"BSP, flanged |
| 7ML1830-1DR |
Locknut, 1" BSP, plain |
| 7ML1830-1DS |
LOCKNUT, 1"NPT, PLASTIC |
| 7ML1830-1EA |
ADAPTER 1" BSP - 20MM |
| 7ML1830-1EB |
Adaptor (XPS30) 1-1/2" BSP |
| 7ML1830-1EF |
ADAPTER 1"NPT/M20 |
| 7ML1830-1GN |
Easy Aimer adapter Kit, 304, M20 to 1"NPT, 1"NPT to 1"BSP, 1"NPT to 1.5"BSP |
| 7ML1930-1BJ |
TAG, stainless steel, comes with hole, 12 X 45MM, one text line |
| 7ML1930-1FX |
KIT, ISOLATION, 1" NPT, XDUCERS |
Key Benefits
- Integral temperature compensation
- Low ringing effect reduces blanking distance
- Optional foam facing for dusty applications
- Self-cleaning and low-maintenance
- Chemically resistant
- Hermetically sealed
Applications
XPS transducers can be fully immersed, are resistant to steam and corrosive chemicals, and can be installed without flanges. The XPS series offers versions for various measuring ranges up to 30 m (100 ft) and up to a maximum temperature of 95 °C (203 °F).
During operation, the EchoMax transducers emit acoustic pulses in a narrow beam. The level monitor measures the propagation time between pulse emission and its reflection (echo) to calculate the distance.
Technical Specifications
| Input |
XPS-10/XPS-10C |
XPS-15/XPS-15C/XPS-15F |
XPS-30/XPS-30C |
| Measuring range |
0.3 ... 10 m (1 ... 33 ft) |
Standard: 0.3 ... 15 m (1 ... 50 ft)
XPS-15F: 0.45 ... 15 m (1.5 ... 50 ft) |
0.6 ... 30 m (2 ... 100 ft) |
| Frequency |
44 kHz |
44 kHz |
30 kHz |
| Beam angle |
12° |
6° |
6° |
| Location |
Indoors/outdoors |
Indoors/outdoors |
Indoors/outdoors |
| Ambient temperature |
-40 ... +95 °C (-40 ... +203 °F) |
-40 ... +95 °C (-40 ... +203 °F)
XPS-15F: -20 ... +95 °C (-4 ... +203 °F) |
-40 ... +95 °C (-40 ... +203 °F) |
| Storage temperature |
-40 ... +95 °C (-40 ... +203 °F) |
-40 ... +95 °C (-40 ... +203 °F)
XPS-15F: -20 ... +95 °C (-4 ... +203 °F) |
-40 ... +95 °C (-40 ... +203 °F) |
| Pollution degree |
4 |
4 |
4 |
| Pressure |
8 bar g (120 psi g)
Flanged: 0.5 bar g (7.25 psi g) |
8 bar g (120 psi g)
Flanged: 0.5 bar g (7.25 psi g) |
0.5 bar g (7.25 psi g)
Flanged: 0.5 bar g (7.25 psi g) |
| Weight |
0.8 kg (1.8 lb) |
1.3 kg (2.8 lb)
Flanged: 2 kg (4.4 lb) |
4.3 kg (9.5 lb) |
| Power supply |
Operation of transducer only with approved Siemens controllers |
Operation of transducer only with approved Siemens controllers |
Operation of transducer only with approved Siemens controllers |
| Material |
Standard: PVDF
Flanged: PVDF with CPVC flange
Option: PTFE face with CPVC flange |
Standard: PVDF
Flanged: PVDF with CPVC flange
Option: PTFE face with CPVC flange |
Standard: PVDF
Flanged: PVDF with CPVC flange
Option: PTFE face with CPVC flange |
| Color |
Blue |
Blue
XPS-15F: Gray |
Blue |
| Process connection |
1" NPT or 1" BSPT |
1" NPT or 1" BSPT
XPS-15F: 1" NPT |
1.5" universal thread (NPT or BSPT) |
| Degree of protection |
IP66/68 |
IP66/68 |
IP66/68 |
| Cable |
2-wire twisted pair/braided and foil shielded 0.5 mm² (20 AWG) PVC jacket |
2-wire twisted pair/braided and foil shielded 0.5 mm² (20 AWG) PVC jacket |
2-wire twisted pair/braided and foil shielded 0.5 mm² (20 AWG) PVC jacket |
| Separation |
Max. 365 m (1 200 ft) |
Max. 365 m (1 200 ft) |
Max. 365 m (1 200 ft) |
Certifications and Approvals
Standard: CE, UKCA, CSA, FM, ATEX, UKEX, IEC Ex, NEPSI, CRN, VLAREM II, RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 2022, FDA (wetted sensor), Environmental Product Declaration (EPD), Kazakhstan Metrology
XPS-10C: CSA, CRN, VLAREM II, RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 2022, FDA (wetted sensor), Environmental Product Declaration (EPD), Kazakhstan Metrology
XPS-15C: CSA, CRN, VLAREM II, RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 2022, FDA (wetted sensor), Environmental Product Declaration (EPD), Kazakhstan Metrology
XPS-15F: FM Class I, Div. 1, Groups A, B, C, and D, Class II Div. 1, Groups E, F, and G, CRN, VLAREM II, RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 2022, FDA (wetted sensor), Environmental Product Declaration (EPD), Kazakhstan Metrology
XPS-30C: CSA, CRN, VLAREM II, RoHS, China RoHS, WEEE, REACH, NSF/ANSI/CAN 61- 2022, FDA (wetted sensor), Environmental Product Declaration (EPD), Kazakhstan Metrology
