Name: 200 FW Series
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 200 FW Series
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

200 FW Series

200 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Brand Name:

honeywell

Model Number:

200 FW Series

Request A Quote

Product Details

Supply Voltage:

18 Vdc To 32 Vdc

Description:

One-piece 5/8 In Proximity Sensor

Technology:

Hall

Target Material:

Magnet

Load Current:

100 MA, 50 MA Lamp

Supply Current:

20 MA Max. @ 25 °C

Highlight:

200 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

SIRIUS 3SE5, 3SE2 mechanical safety switches

Get Best Price

Contact Now

Product Description

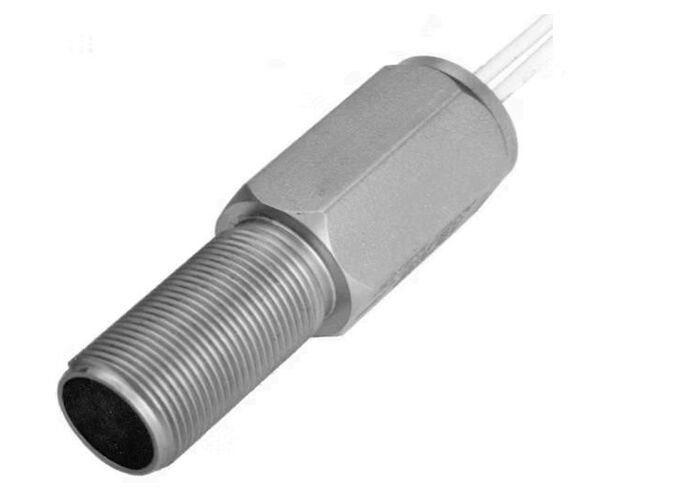

200 FW Series Proximity Sensor

Product Overview

One-piece 5/8 inch Hall-effect proximity sensor with shielded sensing face. Features normally open/closed operation and current sinking capability.

Environment-proof self-contained proximity sensor enclosed in a rugged stainless steel housing, designed to meet the requirements of aerospace, ordnance, marine, mass transit and high performance industrial equipment. Operation by Hall Effect principle, which is used to detect magnetic fields passing in front of the sensing face. Once a target metal is detected, a trigger signal is produced which is then passed through the output conditioning circuitry to give a high or low output, depending on the sensor application.

Key Features

Hall-effect magnetic field sensitive technology
High-frequency switching capability
Shielded three-wire DC sinking (NPN)
High level of electronics protection
Rugged stainless steel housing
Environment-proof construction

Technical Specifications

Parameter	200 FW Series
Description	One-piece 5/8 in proximity sensor
Technology	Hall Effect
Target Material	Magnet
Load Current	100 mA, 50 mA lamp
Supply Current	20 mA max. @ 25 °C
Supply Voltage	18 Vdc to 32 Vdc
Sensing Face	Shielded
Housing Material	Stainless Steel
Guaranteed Actuation Distance	2 mm to 2.99 mm [0.0787 in to 0.1177 in]
Operating Temperature Range	-54°C to 100°C [-65.2°F to 212°F]
Output Type	Normally open/closed, current sinking
Approvals	FM Class 1, Division 2, Groups A, B, C, D
Measurements	Sensing face: 5/8 in * 63.5 mm L [2.5 in]

Available Models

Part Number	Description
212FW10-R	200FW series, Shielded 3-wire DC Sinking (NPN), NO proximity sensor, 0.625 in cylindrical housing, Connector version mates with MS3116-8-4S. Nominal sensing distance of 2.4 mm to 11.4 mm [0.09 in to 0.45 in] with 101MG7 as the magnetic target

Industry Applications: Aerospace, Ordnance, Marine, Mass Transit, High Performance Industrial Equipment
