Name: 300 FW Series
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 300 FW Series
Price: 1,000.10 USD
Availability: InStock

Home > Products > Ultrasonic Transducer Sensor >

300 FW Series

300 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Brand Name:

honeywell

Model Number:

300 FW Series

Request A Quote

Product Details

Supply Current:

65 MA Max.

Description:

Two-piece Proximity Sensor

Technology:

ECKO

Target Material:

Ferrous Metals

Load Current:

750 MA

Highlight:

300 FW ultrasonic transducer sensor

high-frequency ultrasonic sensor

industrial ultrasonic transducer with warranty

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability

1000 Piece/Pieces per Week negotiable

SIRIUS 3SE5, 3SE2 mechanical safety switches

Get Best Price

Contact Now

Product Description

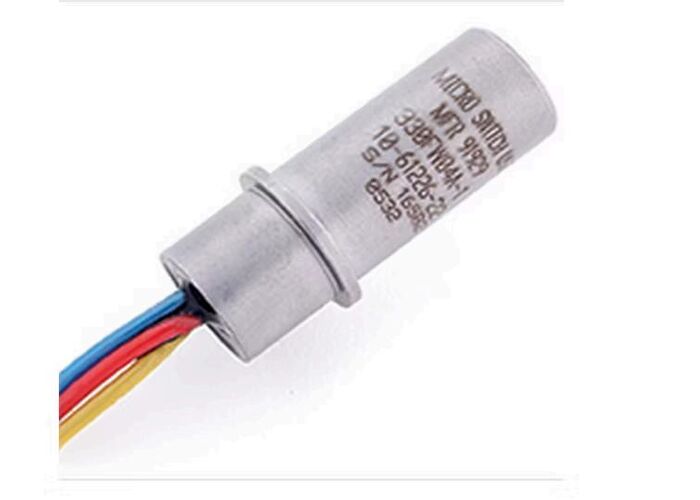

300 FW Series Proximity Sensor

Two-Piece ECKO Proximity Sensor

The 300 FW Series features a two-piece ECKO proximity sensor with shielded sensing face and normally open/closed current sinking operation. This combined sensor and interface system offers highly enhanced reliability with mean time between failure in excess of 500,000 hours when used with the Sensor Interface Module (ZS-00380 Series).

Sensitive electronics are mounted on plug-in cards for inside mounting, enclosed in a rugged hermetically sealed stainless steel housing. Designed to withstand temperature extremes and exposure to salt, humidity, sand, dust, and corrosive fluids such as skydrol and typical aircraft fuels.

Key Applications

Potential applications include aircraft landing gear, flight control surfaces, and aircraft door monitoring systems.

Key Features

Ferrous metal sensing capability
Two-piece construction design
Reverse polarity protection
Shielded sensing face
Hermetically sealed stainless steel housing
Extended operational lifespan

Technical Specifications

Parameter	Specification
Description	Two-piece proximity sensor
Technology	ECKO
Target material	Ferrous metals
Load current	750 mA
Supply current	65 mA max.
Supply voltage	18 Vdc to 32 Vdc
Sensing face	Shielded
Housing material	Stainless steel
Guaranteed actuation distance	1.78 mm to 3.3 mm [0.07 in to 0.130 in]
Operating temperature range	-77°C to 125°C [-106.6°F to 257°F]
Output type	Normally open/closed, current sinking
Approvals	MIL-STD-810B
Measurements	∅11.2 mm × 31.8 mm L [0.44 in × 1.25 in]

Available Part Numbers

Part Number	Description
310FW04-10	300 FW Series, Two Piece Sensor, Harsh Environment, Cylindrical, ECKO, Stainless Steel, Shielded, Leadwire, Normally Open/Closed, Current Sinking
310FW04-10=PEI	310FW04-10 Proximity Sensor
320FW04-5	300 FW Series, Two Piece Sensor, Harsh Environment, Cylindrical, ECKO, Stainless Steel, Shielded, Leadwire, Normally Open/Closed, Current Sinking
330FW04A-1	300 FW Series, Two Piece Sensor, Harsh Environment, Cylindrical, ECKO, Stainless Steel, Shielded, Leadwire, Normally Open/Closed, Current Sinking
330FW04A-1=SAT	Aerospace Proximity
340FW07-R2	Proximity Sensor
390FW04A-10	300 FW Series, Two Piece Sensor, Harsh Environment, Cylindrical, ECKO, Stainless Steel, Shielded, Leadwire, Normally Open/Closed, Current Sinking
405FW504-B	Aerospace Proximity
405FW504-BG	Proximity Sensor
50020152-001	20-Lead CLCC packaged i.c.
