Name: KQS-FSFX-S Integrated Wind Speed and Direction Sensor with ±3° Accuracy 0.9W Max Power Consumption and Aluminum Alloy Body
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FSFX-S
Price: 5,000.00 USD
Availability: InStock

Home > Products > Environmental Monitoring >

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with ±3° Accuracy 0.9W Max Power Consumption and Aluminum Alloy Body

Place of Origin:

Xi'an, Shaanxi Province, China

Brand Name:

Kacise (XI'AN KACISE OPTRONICS TECH CO., LTD)

Certification:

ISO 9001:2015, CE

Model Number:

KQS-FSFX-S

Request A Quote

Product Details

Accuracy (Wind Speed):

±(0.3+0.03V) M/s (V = Real-time Wind Speed)

Accuracy (Wind Direction):

±3°

Resolution (Wind Speed):

0.1 M/s

Max Power Consumption:

0.9W

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Packaging Details

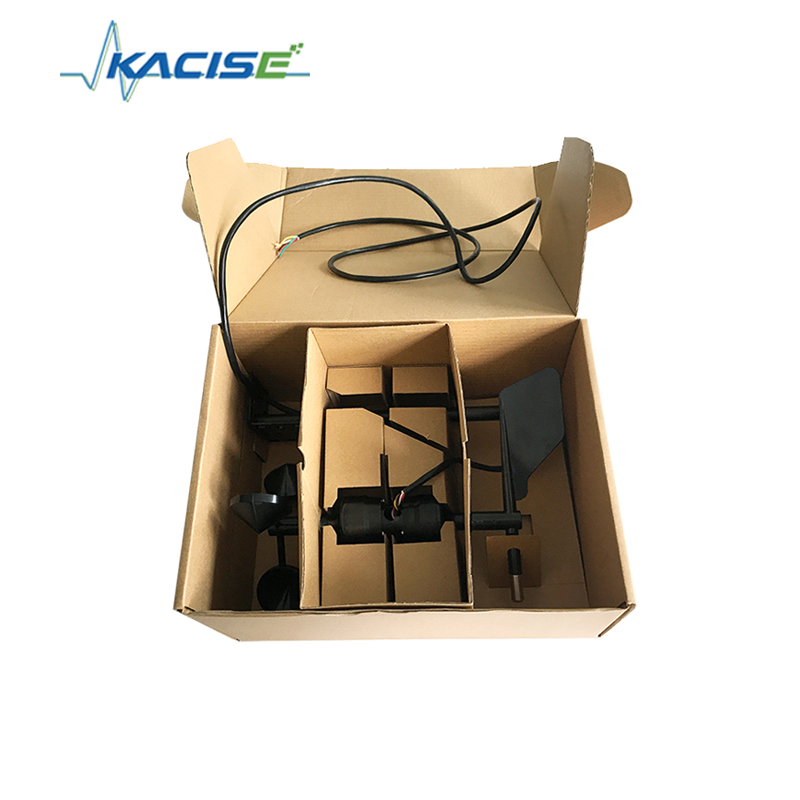

Individual carton box with foam padding; master export carton; standard cable 2.5m included

Delivery Time

3-7 days for standard models; 10-20 days for custom/bulk orders

Payment Terms

L/C,D/A,D/P,T/T,Western Union

Supply Ability

5,000 - 10,000 units per month

Portable Ultrasonic Weather Station with IP65 Waterproof Rating, 7-inch Resistive Touchscreen, and 50 Hours Operating Time

Get Best Price

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Get Best Price

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Get Best Price

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Get Best Price

Contact Now

Product Description

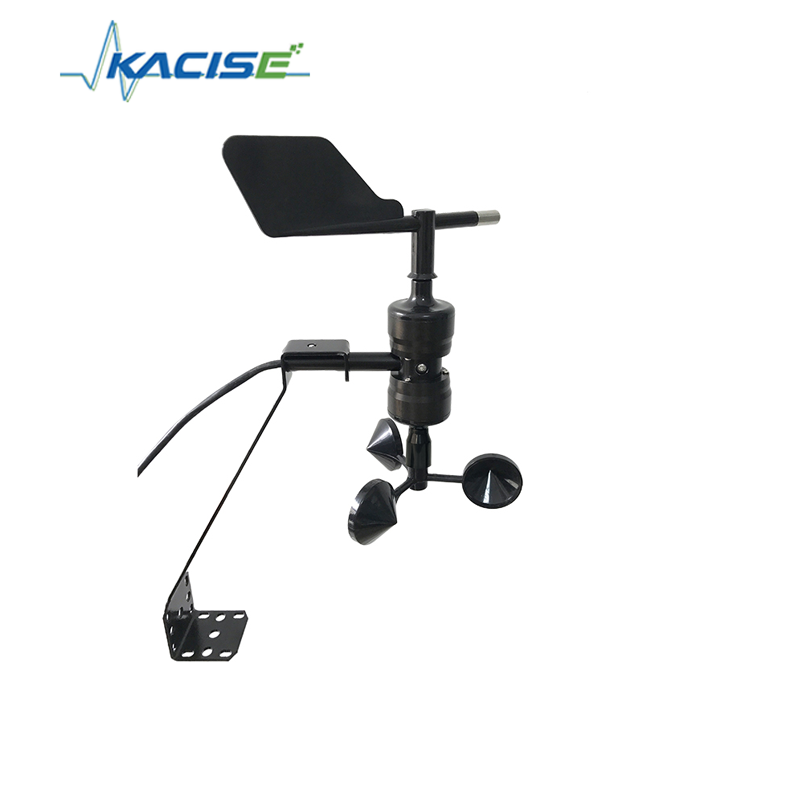

KQS-FSFX-S Integrated Wind Speed and Direction Sensor (Model S)

Product Overview

The KQS-FSFX-S Integrated Wind Speed and Direction Sensor is a highly integrated product combining wind speed and direction measurement. Assembled from precision-machined aluminum alloy components, it offers high strength and convenient installation.

The wind speed measurement section uses a traditional three-cup anemometer structure with imported ABS material cups for high strength and low starting threshold (≤0.5 m/s). The precision signal processing unit can output various signals according to user requirements, with wide range, good linearity, convenient observation, and stable reliability.

The wind direction measurement section uses a precision angle sensor inside with a low-inertia wind vane responding to wind direction changes. It provides high accuracy (±3°), no dead angles, and 0-359° full range measurement.

Technical Specifications

Accuracy (Wind Speed)	±(0.3+0.03V) m/s
Accuracy (Wind Direction)	±3°
Starting Wind Speed	≤0.5 m/s
Max Power Consumption	0.9W
Operating Temperature	-35°C to 60°C
Protection Rating	IP64
Net Weight	680g

Key Features

Integrated wind speed and direction measurement in one device
Aluminum alloy body, high strength and corrosion resistance
Multiple output options: Pulse, 4-20mA, RS485/RS232, voltage
Supports ModBus-RTU and ASCII protocols
IP64 protection rating for harsh outdoor environments
Low power consumption: max 0.9W
Measurement range: Wind speed 0-70 m/s, Wind direction 0-359°

Applications

Meteorology, marine monitoring, environmental monitoring, airports, ports, laboratories, industry, agriculture, transportation.
