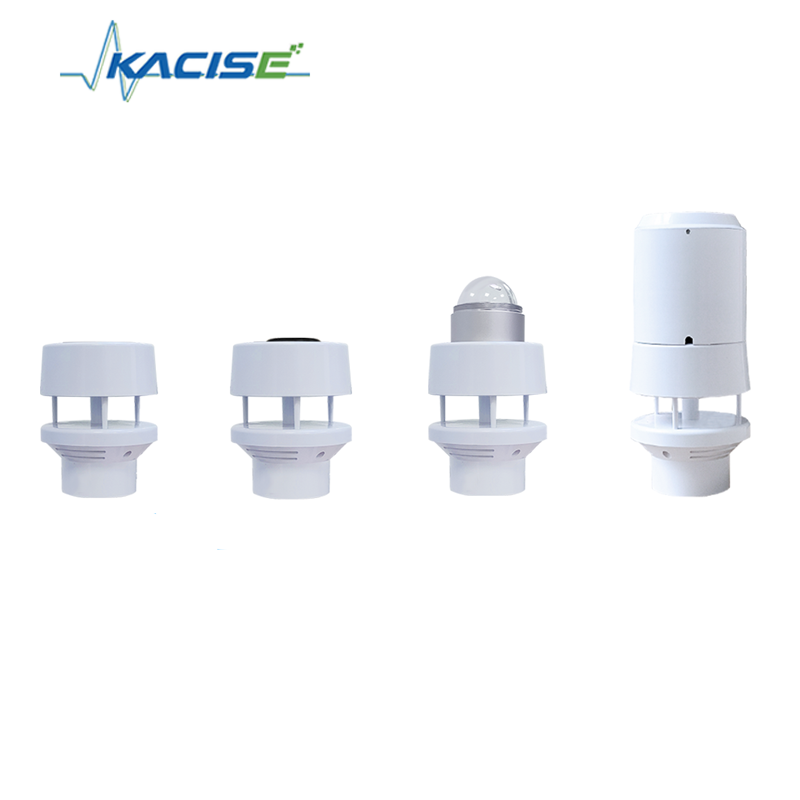

Name: KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSM
Price: 5,000.00 USD
Availability: InStock

Home > Products > Water Quality Sensor >

KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output

Brand Name:

KACISE

Certification:

Model Number:

KQS-CSM

Request A Quote

Product Details

Measurement Elements:

Wind Speed, Wind Direction, Temperature, Humidity, Barometric Pressure, Compass; Optional: Rainfall, Illuminance, Solar Radiation

Power Consumption:

0.2W (5-element With Compass, No Heating)

Output Signal:

RS485 (Modbus-RTU)

Protection Grade:

IP65

Material:

ASA UV-resistant Plastic

Weight:

~200g (5-parameter)

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output

Get Best Price

KQS-RS1 Metal Construction Droplet-Sensing Optical Rain Sensor with IP65 Protection

Get Best Price

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

Get Best Price

KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design

Get Best Price

Contact Now

Product Description

KQS-CSM MINI Ultrasonic Environment Monitor

The KQS-CSM MINI is a cost-effective micro weather monitoring instrument featuring low-power chips and circuit design. With standard 5-element power consumption of only 0.2W, it's ideal for solar or battery-powered applications. The compact design measures approximately 8cm in diameter and 10cm in height, integrating wind speed, wind direction, temperature, humidity, barometric pressure, and optional elements into a single compact structure. All parameters output via RS485 digital interface for 24-hour continuous outdoor monitoring, with optional low-temperature heating available.

Product Features

Selectable monitoring elements: wind speed/direction, temperature/humidity, pressure, compass, rainfall/illuminance/radiation
Low cost, suitable for grid deployment
Ultra-low power consumption of only 0.2W
Compact, modular design for easy integration
Efficient filtering with rain/fog compensation for data stability
Each unit factory-tested to meet national standards
Wide adaptability: tested for high/low temp, waterproof, salt spray. Optional heating for -40°C to 70°C

Technical Specifications

Electrical & Mechanical Parameters

Parameter	Electrical	Mechanical
Power Supply	DC9V-30V or 5V 12V or 24V with heating	Material: ASA UV-resistant plastic Connector: Aviation plug, 3m cable
Power Consumption	200mW (5-elements with compass, no heating)	Color: Milky white
Output Signal	RS485 signal	Protection: IP65
Operating Humidity	0~100%RH	Weight: ~200g (5-parameter)
Operating Temperature	-40°C to +70°C

Sensor Specifications

Configuration	Element	Range	Accuracy	Resolution/Power
Standard 2-el.	Wind Speed	0~45m/s Start ≤0.8m/s	±(0.5+0.02V)m/s	0.01m/s / 0.12W
Standard 2-el.	Wind Direction	0~360°	±3°	1°
Optional	Temperature	-40~80°C	±0.3°C	0.1°C / 1mW
	Humidity	0~100%RH	±5%RH	0.1%RH
	Barometric Pressure	300~1100hPa	±0.5hPa (25°C)	0.1hPa / 0.1mW
	Compass	0~360°	±5°	1° / 10mW
Optional (Radiation/Rain/Illuminance)	Rain (Droplet)	0~4.00mm/min	±4% (indoor)	0.03mm / 0.24W
	Illuminance	0~200000Lux	±4%	1Lux / 0.1mW
	Solar Radiation	0~1500W/m²	±3%	1W/m² / 400mW

Total power = selected sensor(s) + base 150mW + heating 60W (optional)

Mounting Dimensions
