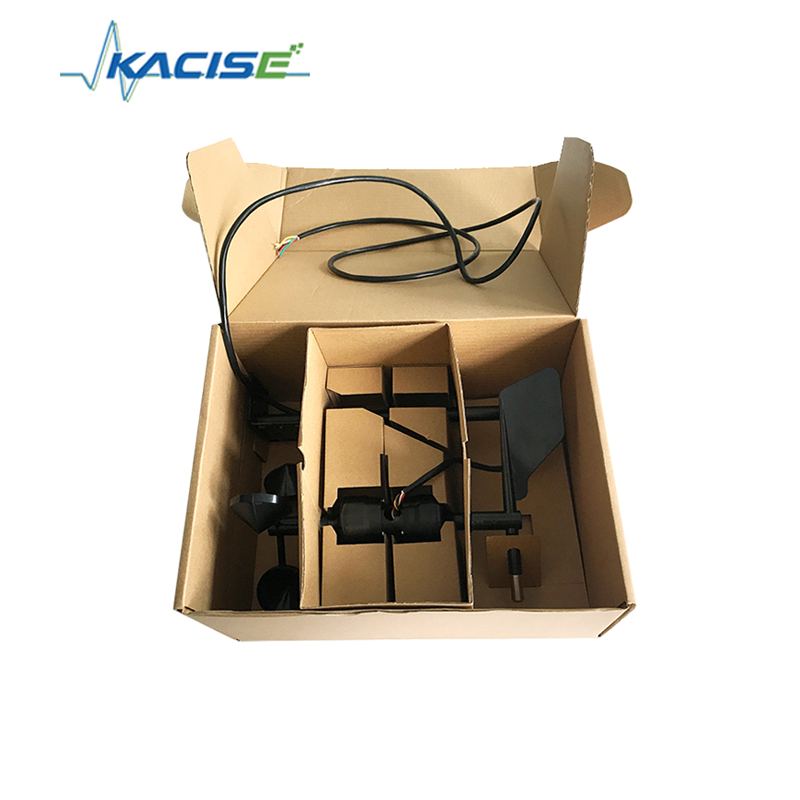

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KQS-FSFX-S

Contact Us
Request A Quote
KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options
Product Details
Sensor Type:
Three-cup Anemometer (wind Speed) + Precision Wind Vane (wind Direction)
Material:
Precision-machined Aluminum Alloy, Imported ABS Cups
Output Options:
RS485, RS232, 4-20mA, 0-20mA, 0-5V, 0-2.5V, 1-5V, Pulse
Protection Grade:
IP64
Starting Threshold:
<=0.5 M/s
Weight:
680g Net, 1280g With Packaging
Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output online

KQS-CSM MINI Ultrasonic Environment Monitor with Low Power Consumption 0.2W IP65 Protection and RS485 Modbus-RTU Output

Get Best Price
Good price KQS-RS1 Metal Construction Droplet-Sensing Optical Rain Sensor with IP65 Protection online

KQS-RS1 Metal Construction Droplet-Sensing Optical Rain Sensor with IP65 Protection

Get Best Price
Good price KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options online

KQS-FSFX-S Integrated Wind Speed and Direction Sensor with Precision-Machined Aluminum Alloy and Multiple Output Options

Get Best Price
Good price KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design online

KQS-SM Soil Comprehensive Sensor with 304 Stainless Steel Probe for 8 Soil Parameters and IP68 Waterproof Design

Get Best Price
Contact Us
Contact Now
Product Description
KQS-FSFX-S Integrated Wind Speed and Direction Sensor (Model S)

The KQS-FSFX-S is a highly integrated product combining wind speed and direction measurement. The wind speed section uses a traditional three-cup anemometer structure with imported ABS material cups for high strength and low starting threshold. The wind direction section uses a precision angle sensor with a low-inertia wind vane responding to wind direction changes.

Widely used in meteorology, marine, environment, airports, ports, laboratories, industry, agriculture, and transportation.

Product Features
  • Highly integrated wind speed and direction measurement
  • Precision-machined aluminum alloy components for high strength
  • Three-cup anemometer with low starting threshold ≤0.5 m/s
  • Precision angle sensor with no dead angles
  • Multiple output signal options (RS485/RS232/current/voltage/pulse)
  • Supports Modbus-RTU and ASCII protocols
  • Wide operating temperature range -35°C to 60°C
  • IP64 protection rating
Technical Parameters
Parameter Specification
Accuracy (Wind Speed) ±(0.3+0.03V) m/s (V = real-time wind speed)
Accuracy (Wind Direction) ±3°
Resolution (Wind Speed) 0.1 m/s
Resolution (Wind Direction) 1°
Starting Wind Speed ≤0.5 m/s
Max Power Consumption 0.9W
Load Capacity (DC12V, current output) ≤350Ω
Load Capacity (DC24V, current output) ≤900Ω
Load Capacity (voltage output) ≥1KΩ
Operating Temperature -35℃～60℃
Humidity ≤100%RH, non-condensing
Protection Rating IP64
Net Weight 680g
Package Weight 1280g (incl. packaging and sensor cable)
Cable Rating Rated Voltage: 300V, 80℃
Measurement Range
Parameter Range
Wind Speed □ 0～45 m/s (current/voltage output)
□ 0～70 m/s (pulse/485/232 output)
□ Custom
Wind Direction 0-359°
Structure Dimensions
KQS-FSFX-S Integrated Wind Speed and Direction Sensor structure dimensions diagram
